DTC List - Transmission Control

DTC Troubleshooting Index

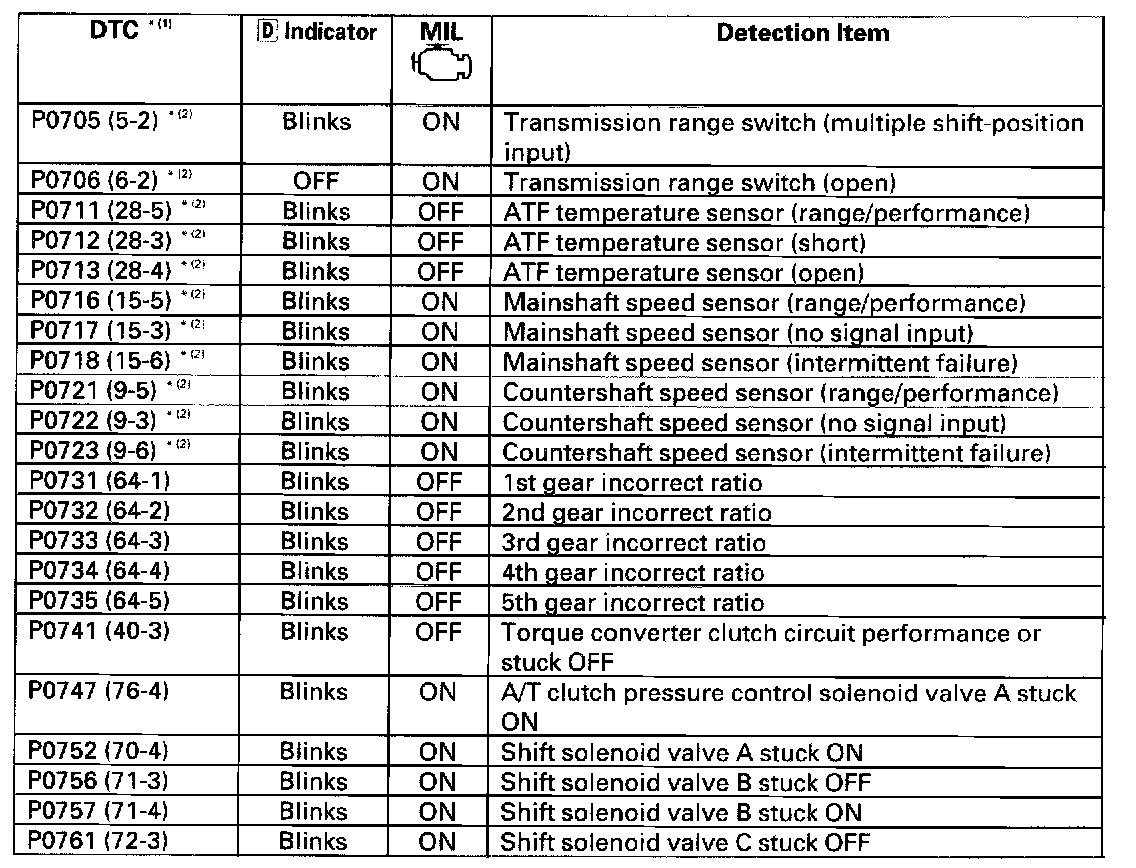

Part 1 Of 3:

NOTE: Record all freeze data and review General Troubleshooting Information before you troubleshoot.

NOTE:
* (1): The DTC in parentheses is the Honda code that you will see when you use the HDS. The first number(s) before the - (hyphen) is the flash code the [D] indicator indicates when the data link connector is connected to the HDS, and the tester in SCS mode.
* (2): This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.

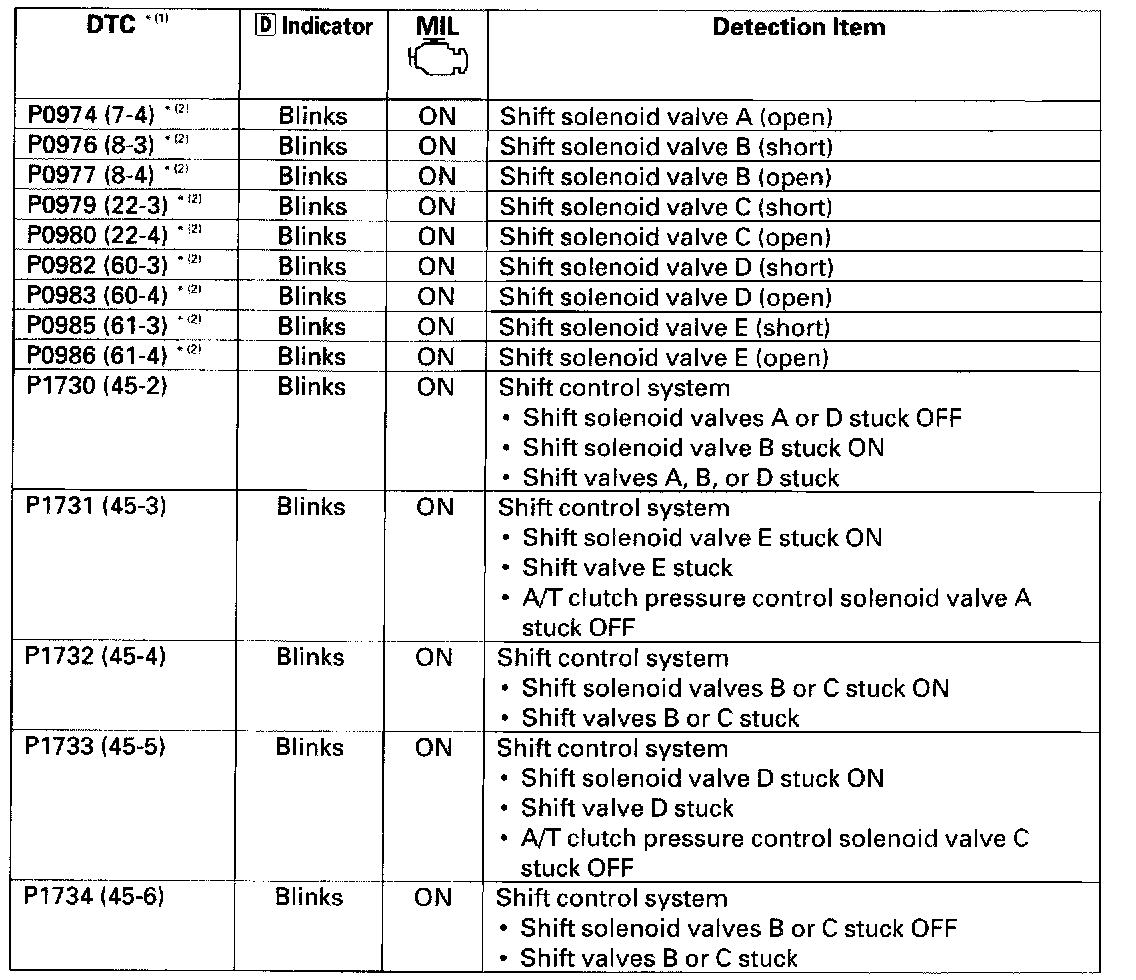

Part 2 Of 3:

NOTE: Record all freeze data and review General Troubleshooting Information before you troubleshoot.

NOTE:
* (1): The DTC is parentheses is the Honda code that you will see when you use the HDS. The first number(s) before the - (hyphen) is the flash code the [D] indicator indicates when the data link connector is connected to the HDS, and the tester in SCS mode.
* (2): This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.

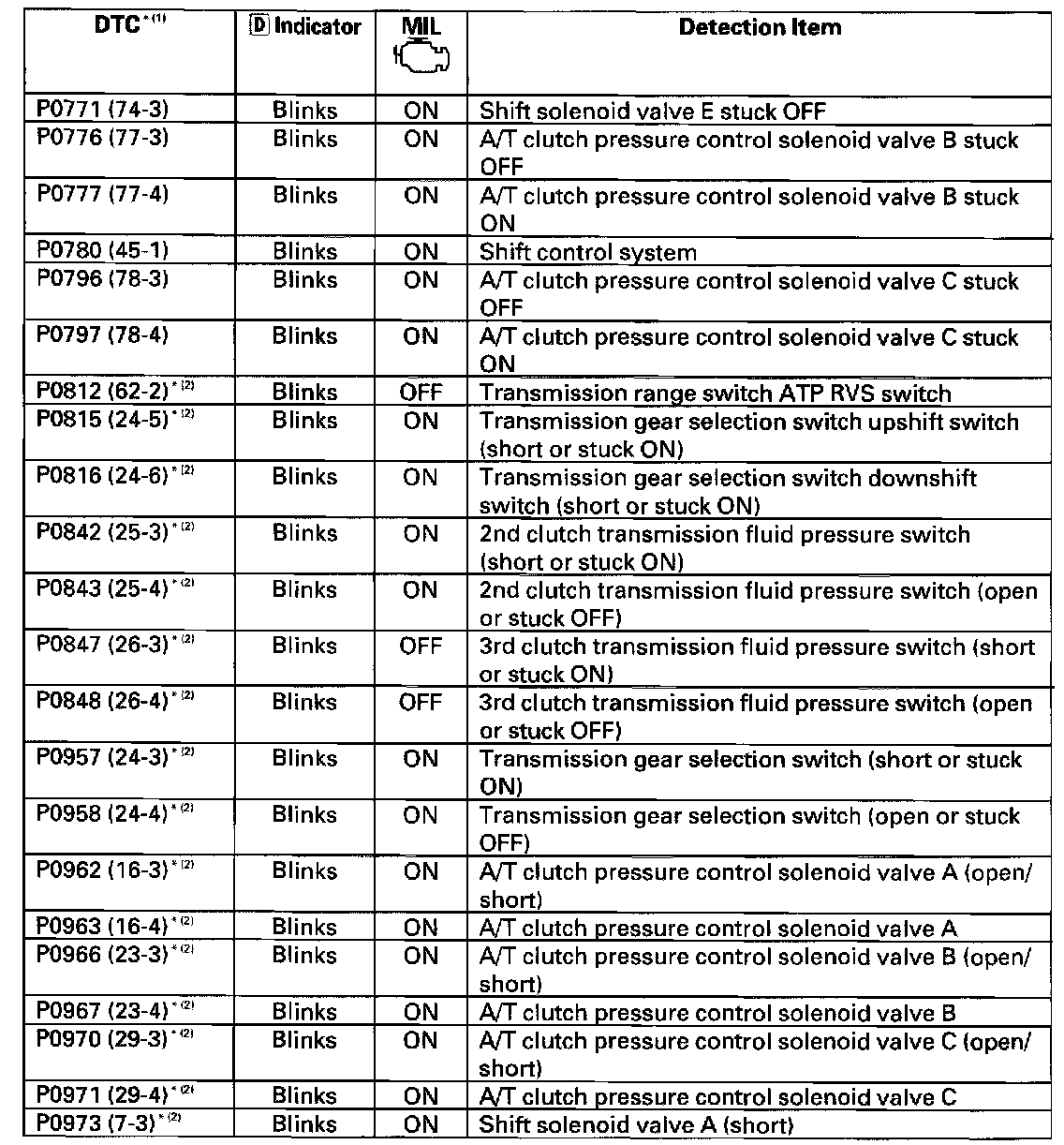

Part 3 Of 3:

NOTE: Record all freeze data and review General Troubleshooting Information before you troubleshoot.

NOTE:
* (1): The DTC is parentheses is the Honda code that you will see when you use the HDS. The first number(s) before the - (hyphen) is the flash code the [D] indicator indicates when the data link connector is connected to the HDS, and the tester in SCS mode.
* (2): This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.
