P0963
DTC P0963: Problem in A/T Clutch Pressure Control Solenoid Valve ANOTE:
^ Record all freeze data and review General Troubleshooting Information before you troubleshoot.
^ This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.
1. Clear the DTC with the HDS.
2. Check that DTC P0963 recurs.
Is DTC P0963 indicated?
YES - Go to step 6.
NO - Go to step 3.
3. Select P CTRL SOL CONTROL in MISC. TEST MENU, then select P. CONTROL SOL A in P CTRL SOL CTRL MENU with the HDS.
4. Drive with the A/T clutch pressure control solenoid valve A at 0.2 A in SOL A CONTROL menu.
5. Check the OBD STATUS in DTCs MENU for a pass/fail test of code P0963.
Did the result indicate a fail?
YES - Go to step 6.
NO - Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the A/T clutch pressure control solenoid valve A and PCM. If the tester indicates NOT COMPLETE, return to step 3 and recheck.
6. Turn the ignition switch OFF.
7. Disconnect the A/T clutch pressure control solenoid valve A connector.

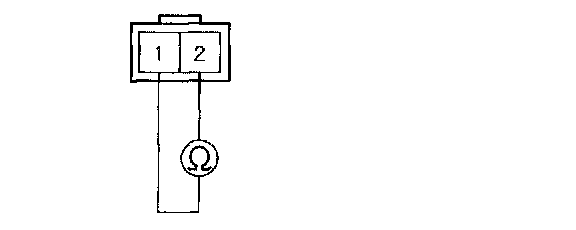

8. Measure A/T clutch pressure control solenoid valve A resistance at the solenoid connector.
Is there 3 - 10 ohms?
YES - Go to step 9.
NO - Replace the A/T clutch pressure control solenoid valve A, then go to step 12.

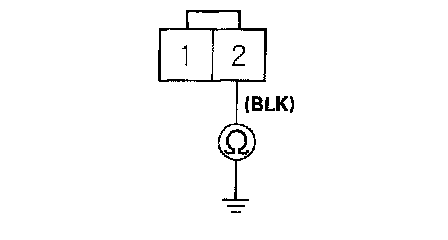

9. Check for continuity between A/T clutch pressure control solenoid valve A connector terminal No. 2 and body ground.
Is there continuity?
YES - Update the PCM if it does not have the latest software, or substitute a known-good PCM, then recheck. If the symptom/indication goes away with a known-good PCM, replace the original PCM.
NO - Repair open in the wire between the A/T clutch pressure control solenoid valve A and ground (G101), or repair poor ground (G101), then go to step 12.
10. Clear the DTC with the HDS.
11. Test-drive the vehicle for several minutes in the [D] position in all five gears.
12. Check the OBD STATUS in DTCs MENU for a pass/fail test of code P0963.
Did the result indicate a pass?
YES - The problem has been corrected.
NO - Return to step 1 and recheck.
