General Description
DescriptionsKey Cylinder Operation
With the key inserted in the driver's door key cylinder, turn the key a second time and hold within 10 seconds to operate the windows (clockwise to open, counterclockwise to close). The windows stop moving when the key is released.
Keyless Operation
By pressing the UNLOCK button of the keyless transmitter a second time and holding, the windows open. The windows stop moving when the UNLOCK button is released. The windows do not close with the LOCK button.
Anti-trap Power Window Operation

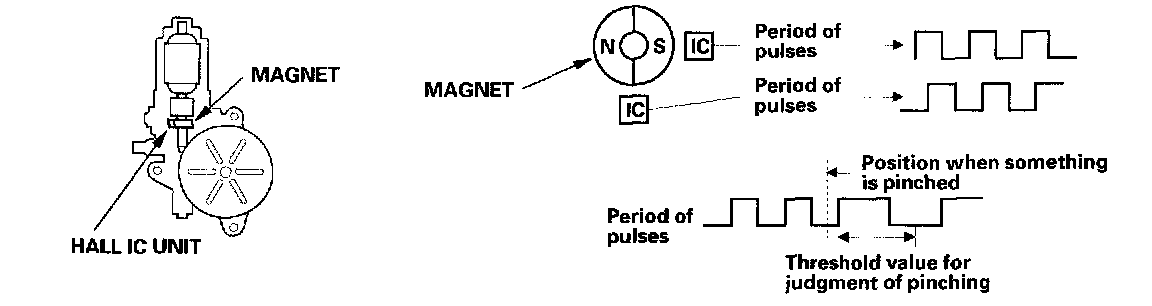

The system is composed of the power window master switch, the power window control unit and the driver's window motor. The power window motor incorporates a pulser which generates pulses during the motor's operation and sends the pulses to the power window control unit. As soon as the power window control unit detects no pulses from the pulser, the control unit makes the power window motor stop and reverse. This is to prevent pinching your hand or fingers during auto-up operation.
Resetting the power window
Resetting the power window is required when any of the following have been removed or repaired:
- Power window regulator
- Power window motor
- Window run channel
- Front or rear door sash
- Door glass
Using the HDS
1. Connect the Honda Diagnostic System (HDS) to the vehicle's DLC.
2. Turn the ignition switch ON (II), then enter the vehicle's VIN and mileage at the prompts.
3. Select Body Electrical from the System Selection menu.
4. From the Body Electrical System Select menu, select Power Windows.
5. From the Mode menu, select Adjustments.
6. From the Adjustment menu, select Window P Reset.
7. Follow the prompts on the screen.
8. Confirm that the power window control unit is reset by using the driver's window AUTO UP and DOWN function.
