Reverse Shift Fork Clearance Inspection

Reverse Shift Fork Clearance Inspection

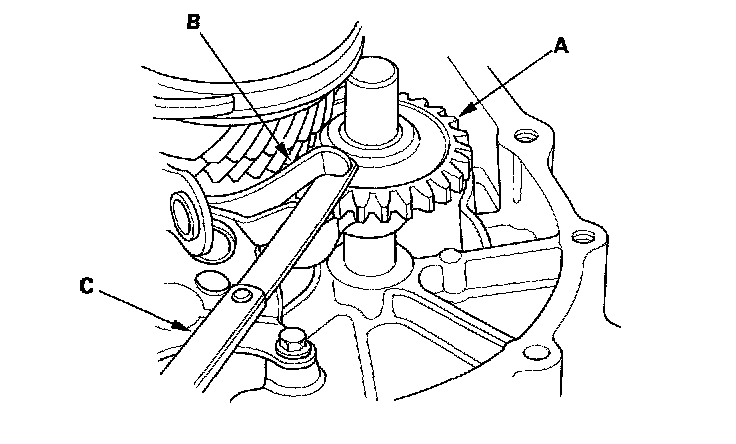

1. Measure the clearance between the reverse idler gear (A) and the reverse shift fork (B) with a feeler gauge (C). If the clearance is more than the service limit, go to step 2.
Standard: 0.20 - 0.59 mm (0.007 - 0.024 inch)
Service Limit: 1.3 mm (0.051 inch)

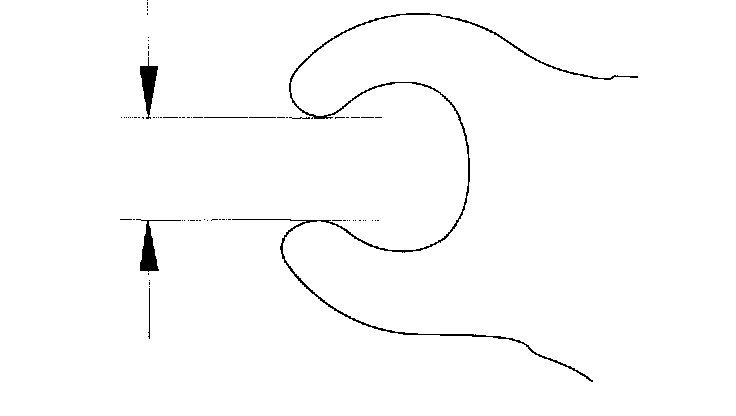

2. Measure the width of the reverse shift fork.
- If the width is not within the standard, replace the reverse shift fork.
- If the width is within the standard, replace the reverse gear.
Standard: 13.4 - 13.7 mm (0.527 - 0.539 inch)
