Mainshaft Bearing and Oil Seal Replacement

Mainshaft Bearing and Oil Seal Replacement

Special Tools Required
- Oil seal driver 07JAD-PL90100
- Adjustable bearing puller, 20 - 40 mm 07736-A01000B
- Attachment, 42 x 47 mm 07746-0010300
- Driver 07749-0010000
- Slide hammer, commercially available

1. Remove the differential assembly.

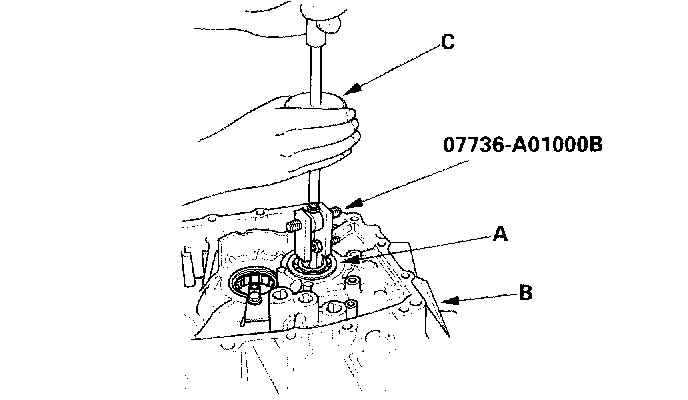

2. Remove the ball bearing (A) from the clutch housing (B) using the special tool and a commercially available 3/8"-16 slide hammer (C).





3. Remove the oil seal (A) from the clutch side. Be careful when removing the seal so the clutch housing is not damaged.

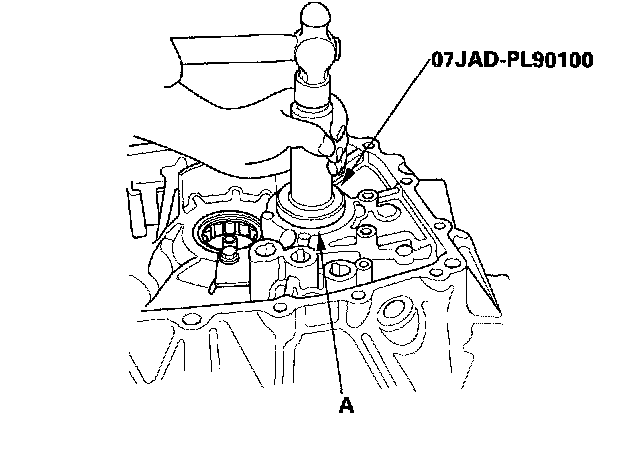

4. Drive the new oil seal in from the transmission side using the special tools.





5. Drive the new ball bearing (A) in from the transmission side using the special tools.
