Change Lever Clearance Inspection

Change Lever Clearance Inspection

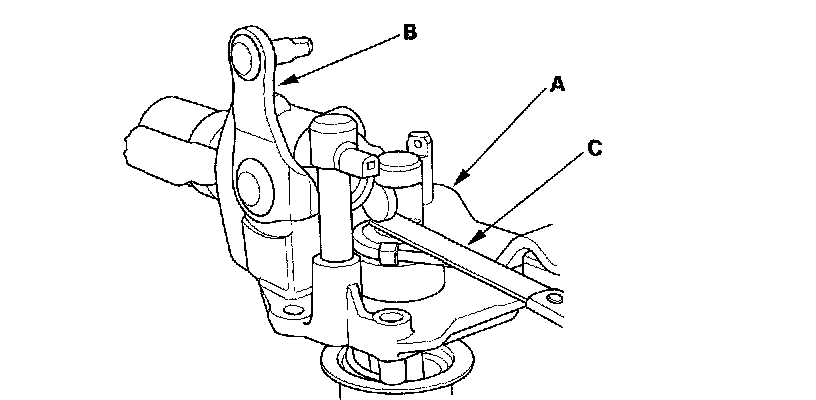

1. Measure the clearance between change lever (A) and the select lever (B) with a feeler gauge (C). If the clearance is more than the service limit, go to step 2.
Standard: 0.05 - 0.25 mm (0.002 - 0.010 inch)
Service Limit: 0.5 mm (0.020 inch)

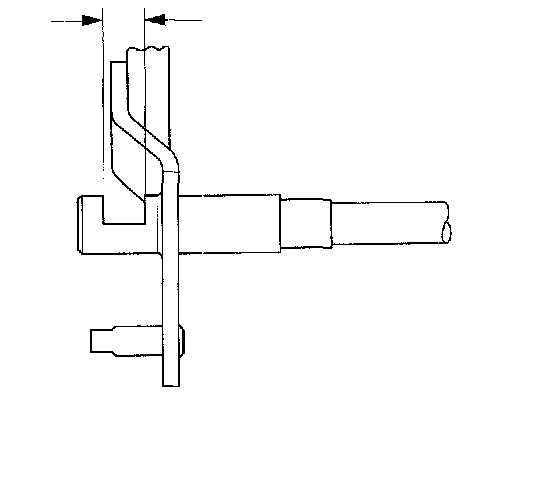

2. Measure the groove of the change lever.
- If the groove is not within the standard, replace the change lever.
- If the groove is within the standard, replace the select lever.
Standard: 15.00 - 15.10 mm (0.591 - 0.594 inch)
