Differential Thrust Clearance Adjustment
Differential Thrust Clearance AdjustmentSpecial Tools Required
- Driver, 40 mm I.D. 07746-0030100

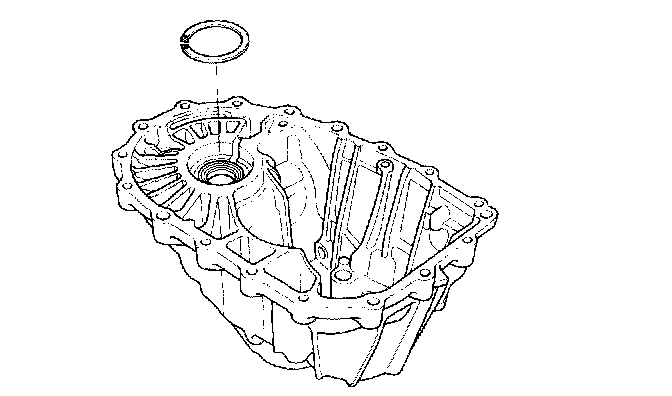

1. If you removed the 80 mm shim from the transmission housing, reinstall the same sized shim.

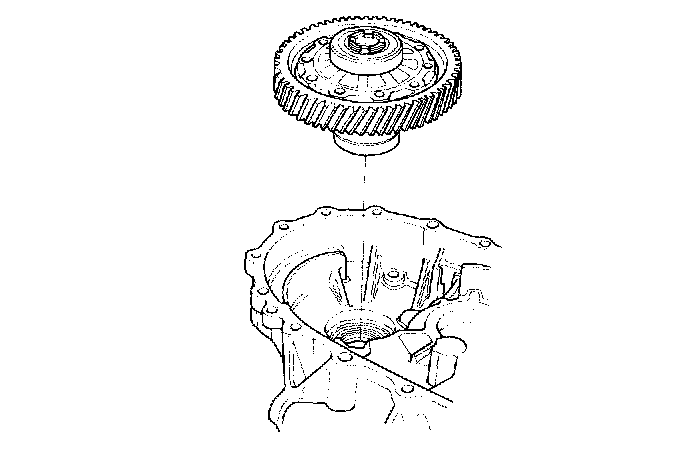

2. Install the differential assembly into the clutch housing.
3. Install the transmission housing onto the clutch housing, then tighten the 8 mm special bolts (lefthand threads) in a crisscross pattern in several steps.
8 x 1.25 mm special bolt (left-hand thread) 24 Nm (2.4 kgf-m, 17.4 ft. lbs.)

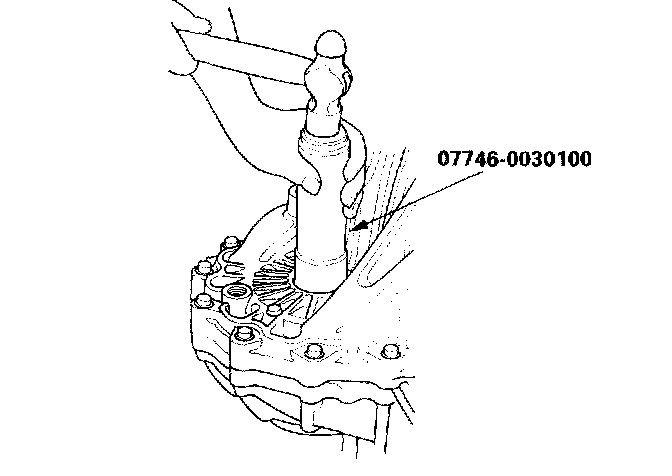

4. Use the special tool to bottom the differential assembly in the clutch housing.

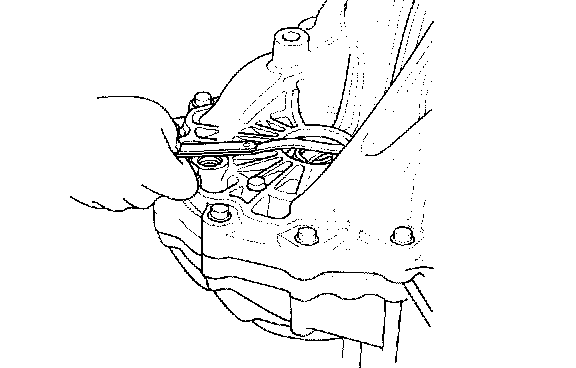

5. Measure clearance between 80 mm shim and bearing outer race in transmission housing.
Standard: 0 - 0.10 mm (0 - 0.0039 inch)

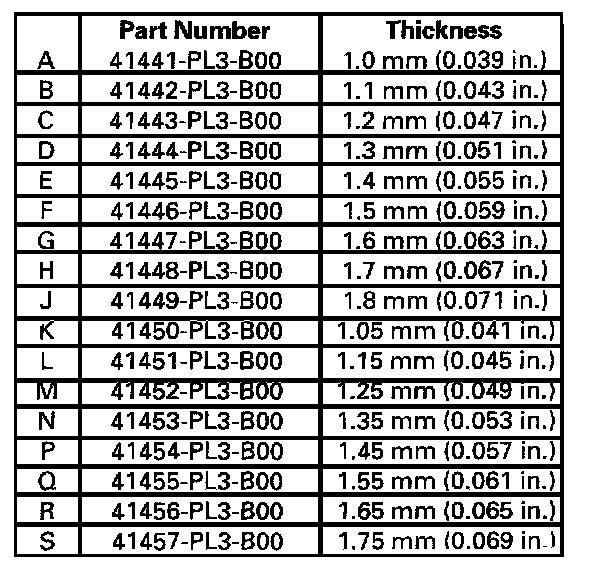

6. If the clearance is more than the standard, select a new shim from the table shown. If the clearance measured in step 5 is within the standard, go to step 9.
7. Remove the bolts and transmission housing.
8. Replace the thrust shim selected in step 6, then recheck the clearance.
9. Reinstall the transmission.
