Reverse Lockout Solenoid Test

Reverse Lockout Solenoid Test
1. Remove the reverse lockout solenoid.

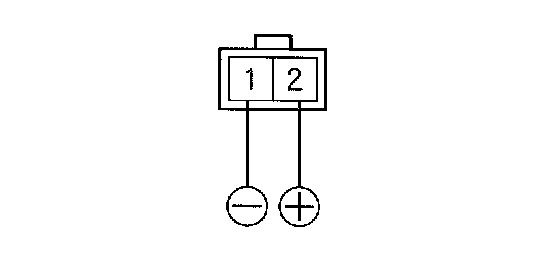

2. Connect battery positive terminal to the No. 2 terminal of the reverse lockout solenoid 2P connector, and connect the battery negative terminal to the No. 1 terminal.
3. Check that the reverse lockout solenoid operates.
4. If the reverse lockout solenoid does not work, replace it.
