Intermediate Shaft Removal

Intermediate Shaft Removal
1. Drain the transmission fluid. Reinstall the drain plug using a new washer:
- Manual transmission
- Automatic transmission
2. Remove the right driveshaft.

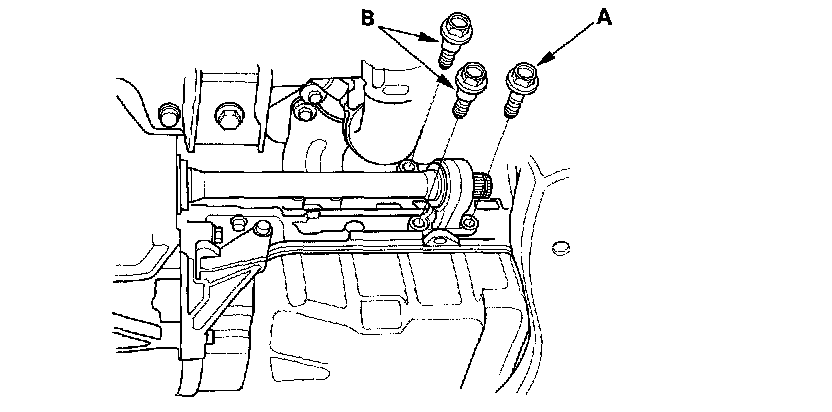

3. Remove the flange bolt (A) and two dowel bolts (B).

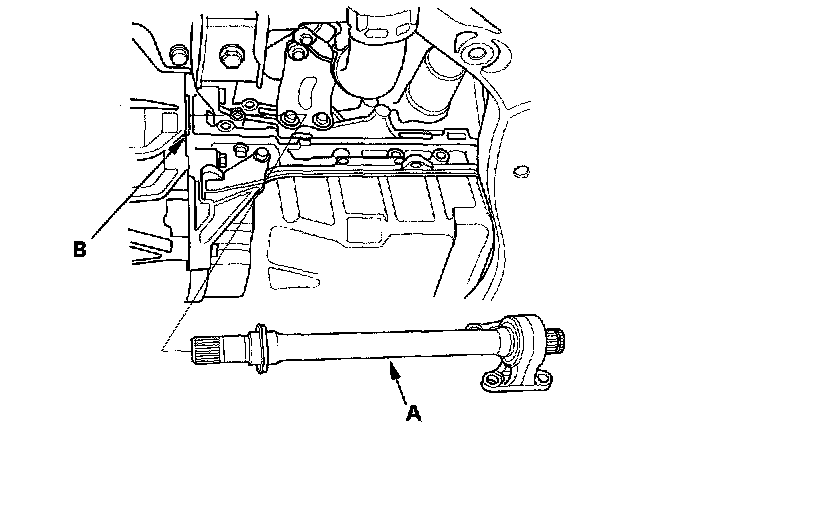

4. Remove the intermediate shaft (A) from the differential. Hold the intermediate shaft horizontal until it is clear of the differential to prevent damage to the differential oil seal (B).
