Park Pin Switch Test
Park Pin Switch Test1. Remove the center console cover.

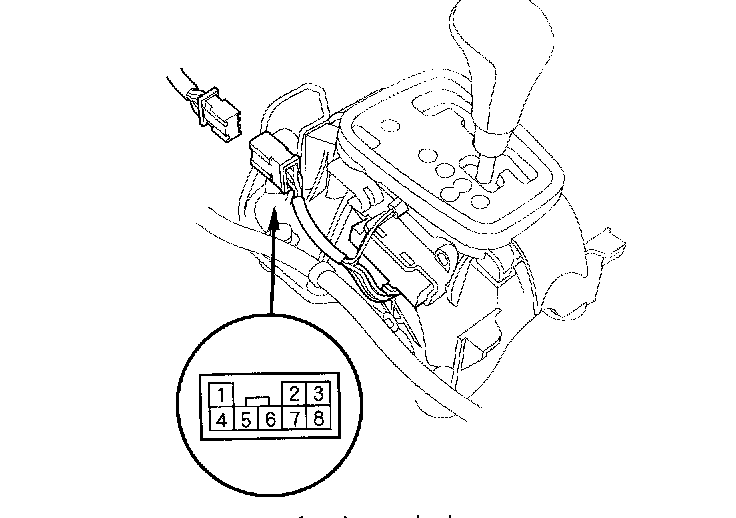

2. Disconnect transmission gear selection switch/park pin switch connector.
3. Shift to the [P] position, then check for continuity between connector terminals No. 1 and No. 4. There should be no continuity.
4. Shift out of the [P] position, and check for continuity between terminals No. 1 and No. 4. There should be continuity.
5. If the park pin switch is faulty, replace it.
