8. Transmission End Cover Installation

End Cover Installation

Special Tool Required

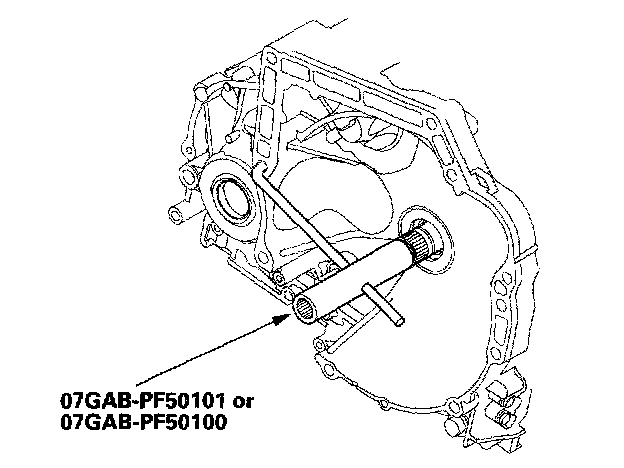

- Mainshaft holder 07GAB-PF50101 or 07GAB-PF50100





1. Install the special tool onto the mainshaft.
2. Lubricate the following parts with ATF:
- Splines and threads of the mainshaft.
- Splines of the mainshaft idler gear.
- Old conical spring washer and old locknut.

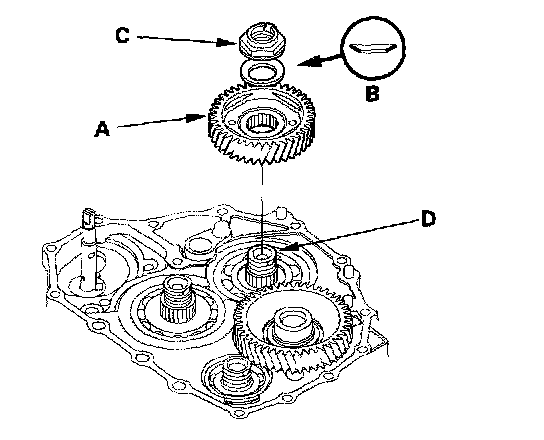

3. Install the mainshaft idler gear (A), old conical spring washer (B), and old locknut (C) on the mainshaft (D), and tighten the locknut to 226 Nm (23.0 kgf-m, 166 ft. lbs.).

NOTE:
- Do not tap the idler gear to install.
- Use a torque wrench to tighten the locknut. Do not use an impact wrench.

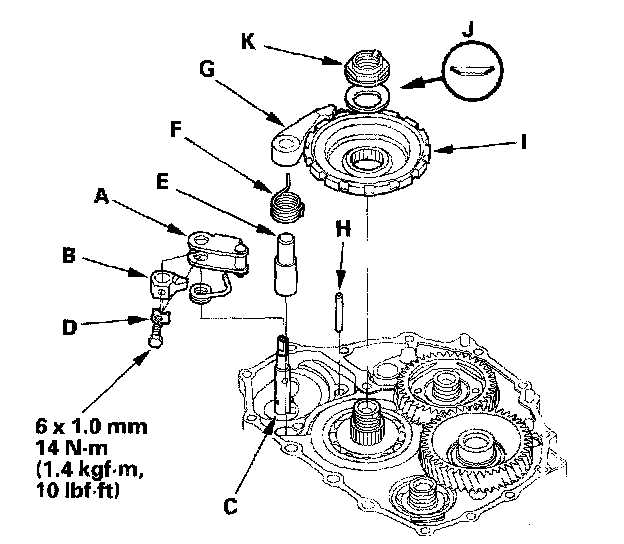

4. Install the park lever (A) and park lever stop (B) on the control shaft (C), then install the lock bolt with the new lock washer (D). Do not bend the lock tab of the lock washer until step 18.
5. Install the park pawl shaft (E), park pawl spring (F), park pawl (G), and stop shaft (H) on the transmission housing.
6. Lubricate the following parts with ATF:
- Threads and splices of the countershaft.
- Old conical spring washer and old locknut.
- Areas where the park gear contacts the conical spring washer.
7. Install the park gear (I), old conical spring washer (J), and old locknut (K) on the countershaft.
8. Lift the park pawl up, and engage it with the park gear, then tighten the locknut to 226 Nm (23.0 kgf-m, 166 ft. lbs.).

NOTE:
- Do not tap the park gear to install.
- Use a torque wrench to tighten the locknut. Do not use an impact wrench.
- Countershaft locknut has left-hand threads.

9. Remove the locknuts and conical spring washers from the mainshaft and countershaft.
10. Lubricate the threads of the shafts, the new locknuts and the new conical spring washers with ATF.

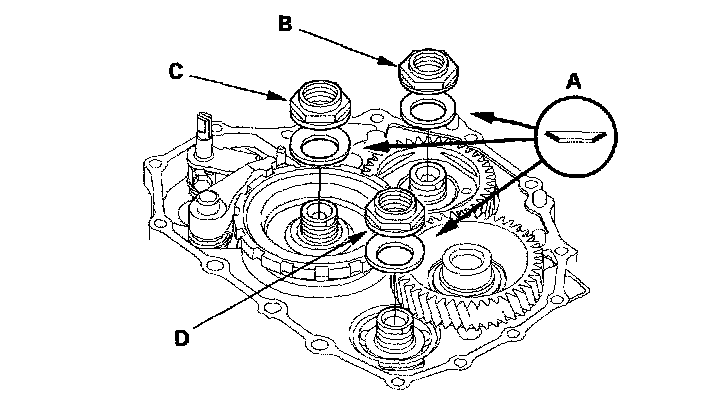

11. Install the new conical spring washers (A) with facing stamped mark side up in the direction shown, and install the new mainshaft locknut (B), the new countershaft locknut (C), and the new secondary shaft locknut (D).
12. Tighten the locknuts to 167 Nm (17.0 kgf-m, 123 ft. lbs.).

NOTE:
- Be sure to install the conical spring washers in the direction shown.
- Use a torque wrench to tighten the locknut. Do not use an impact wrench.
- Countershaft and secondary shaft locknuts have left-hand threads.

13. Remove the special tool from the mainshaft.

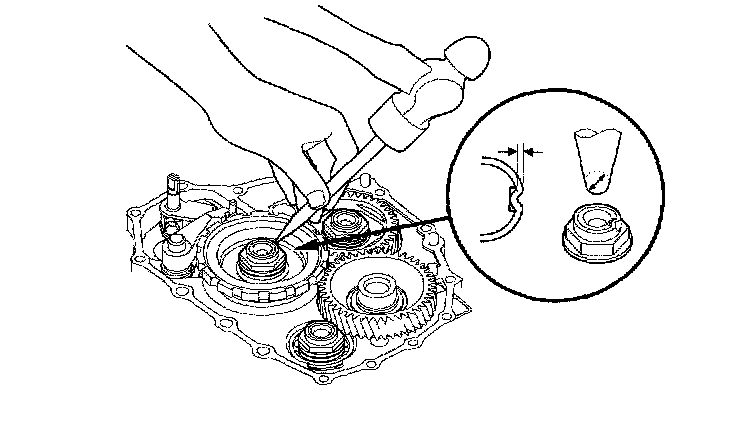

14. Stake the locknuts into the shafts with a punch.





15. Install the control level (A) on the control shaft (B), and install the bolt with the new lock washer (C), then bend the lock tab of the lock washer against the bolt head.

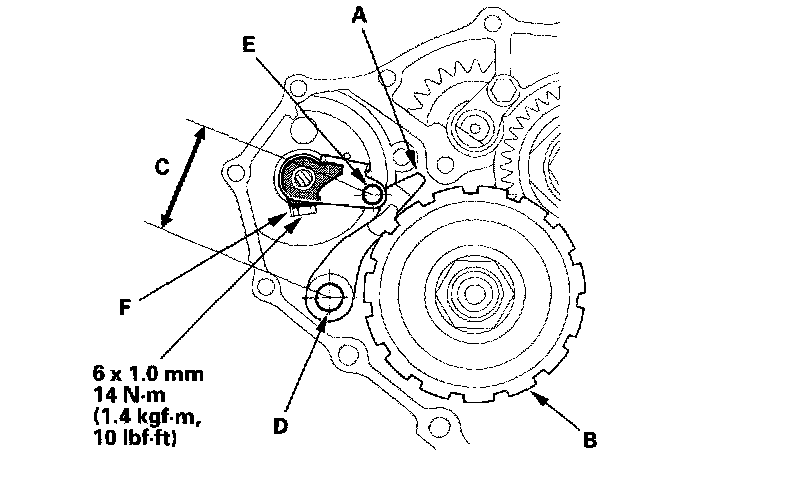

16. Set the park lever in the [P] position, then verify that the park pawl (A) engages the park gear (B).
17. If the park pawl does not engage fully, check the distance (C) between the pawl shaft (D) and the park lever roller pin (E).
18. Tighten the lock bolt, and bend the lock tab of the lock washer (F) against the bolt head.





19. Install the ATF feed pipe (A) into the idler gear shaft, and install the ATF lubrication pipe (B) into the transmission housing.





20. Install the new gasket (A) on the transmission housing, and install the two dowel pins (B) and new O-rings (C) over the top of the ATF feed pipes.
21. Install the end cover (D), and tighten the three special bolts (E) and the 6 x 1.0 mm bolts (12 bolts).
22. install the harness clamp bracket (F) on the end cover.

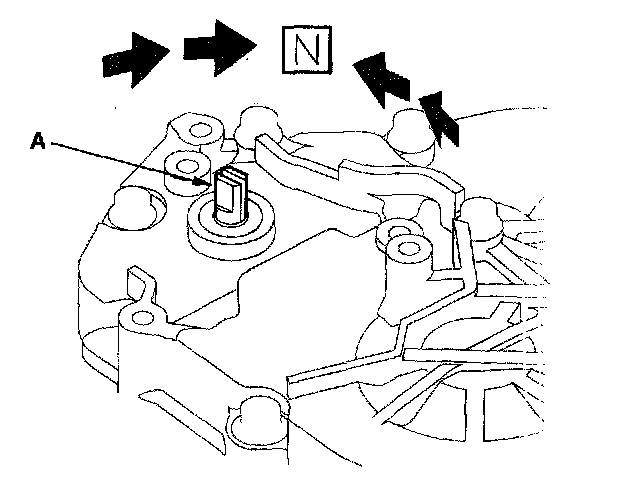

23. Set the control shaft (A) to the [N] position by turning the control lever on the torque converter side.

NOTE: Do not squeeze the end of the control shaft tips together when turning the shaft. If the tips are squeezed together it will cause a faulty shift position signal or position due to the play between the control shaft and the switch.

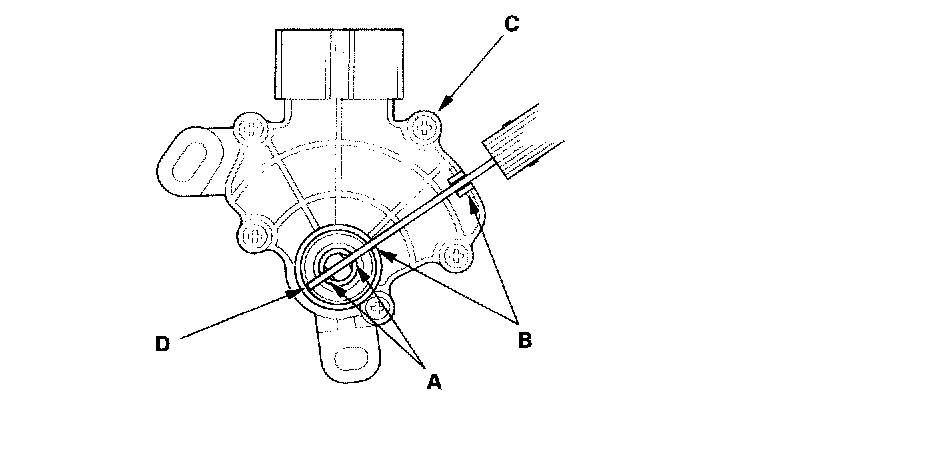

24. Align the cutouts (A) on the rotary-frame with the neutral positioning cutouts (B) on the transmission range switch (C), then put a 2.0 mm (0.08 inch) feeler gauge blade (D) in the cutouts to hold in the [N] position.

NOTE: Be sure to use a 2.0 mm (0.08 inch) blade or equivalent to hold the switch in the [N] position.





25. Install the transmission range switch (A) gently on the control shaft (B) while holding it in the [N] position with the 2.0 mm (0.08 inch) blade (C).





26. Tighten the bolts on the transmission range switch while you continue to hold it in the [N] position. Do not move the transmission range switch when tightening the bolts. Remove the feeler gauge.

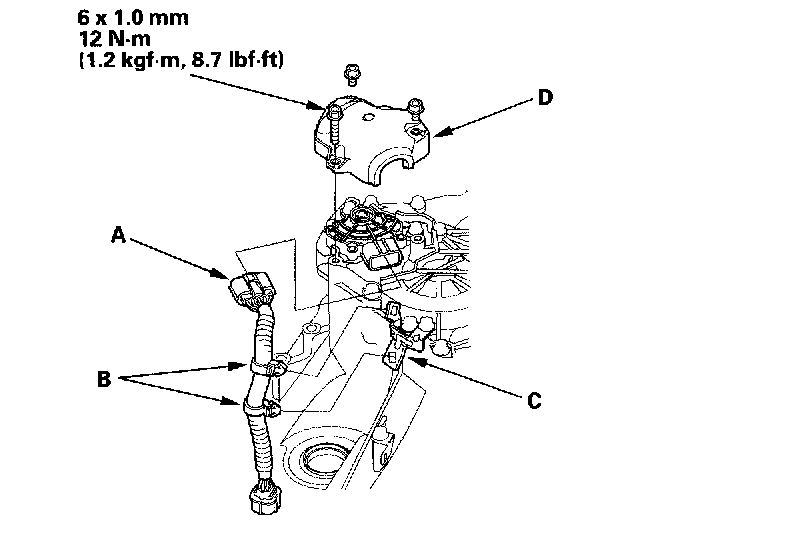

27. Connect the transmission range switch connector (A) securely, then install the harness clamps (B) on the clamp bracket (C).
28. Install the transmission range switch cover (D).





29. Install the new gasket (B) on the transmission housing, and install the ATF pipe (C) and ATF joint pipes (D).

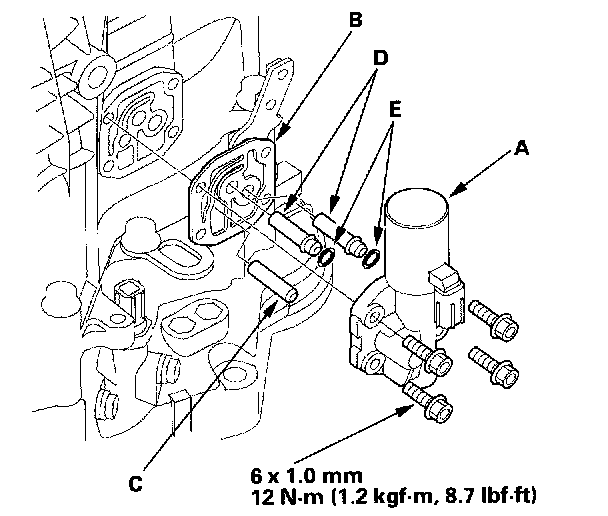

30. Install the new O-rings (E) over the ATF joint pipes, and install the A/T clutch pressure control solenoid valve A.





31. Install the new gasket (C) and ATF joint pipes (D) on the transmission housing, and install the new O-rings (E) over the ATF joint pipes.

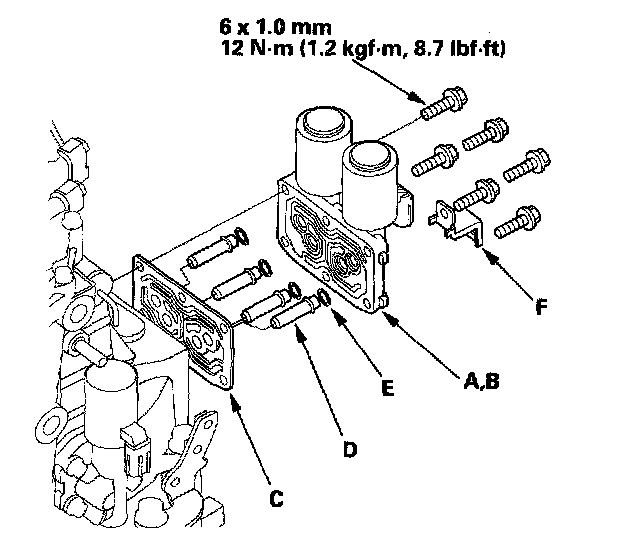

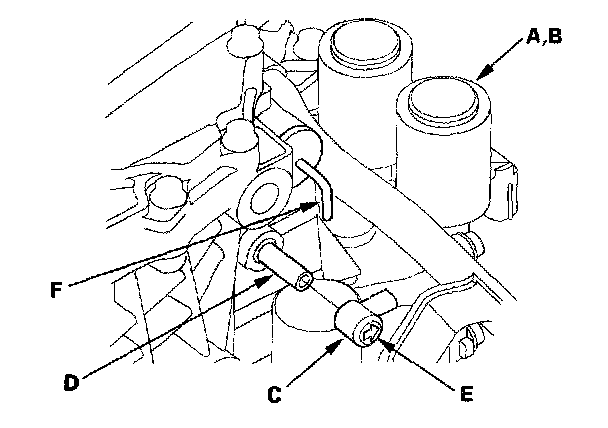

32. Install the A/T clutch pressure control solenoid valves A and B, and harness clamp bracket (F).

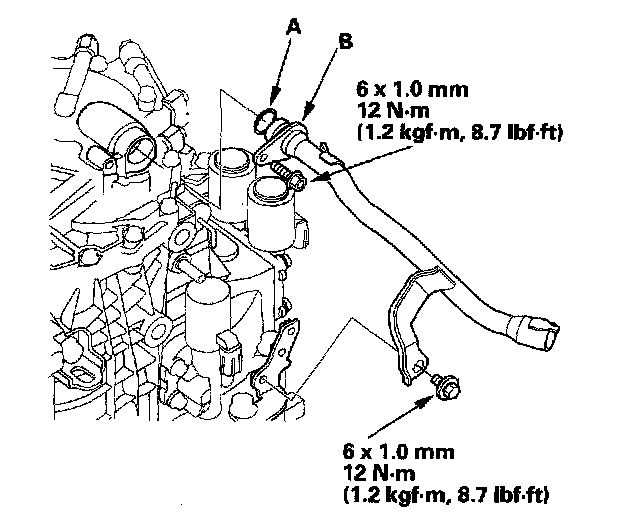

33. Install the new O-ring (A) on the dipstick guide pipe (B), then install the dipstick guide pipe.

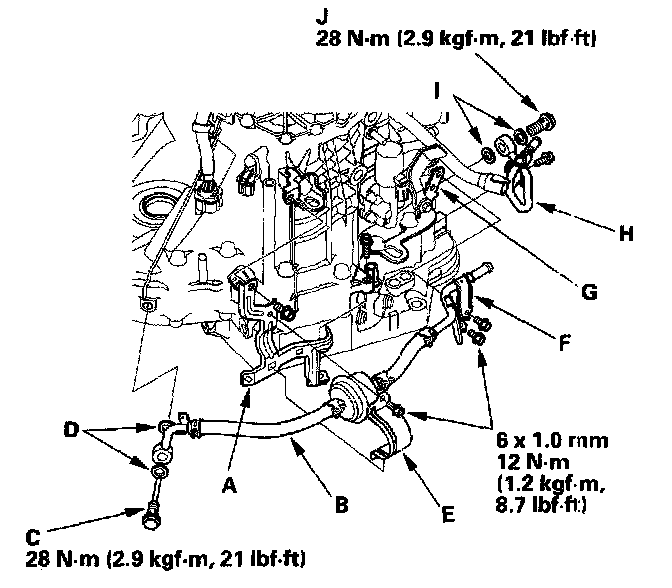

34. Install the ATF filter bracket (A) on the transmission housing, then install the ATF cooler line/ATF filter (B) with the line bolt (C) new sealing washers (D). Secure the ATF filter with its bracket (E).
35. Secure the line brackets (F) with two bolts on the transmission hanger (G).
36. Install the ATF cooler outlet line (H) with the line bolt (I) and new sealing washers (J).





37. Install the breather cap (C) on the breather pipe (D) so its arrow (E) points to the A/T clutch pressure control solenoid valves A and B.
38. Install the filler cap with pointing its handle (F) in the direction shown.
