Steering Column: Testing and Inspection

Steering Column/Tilt/Telescopic Inspection

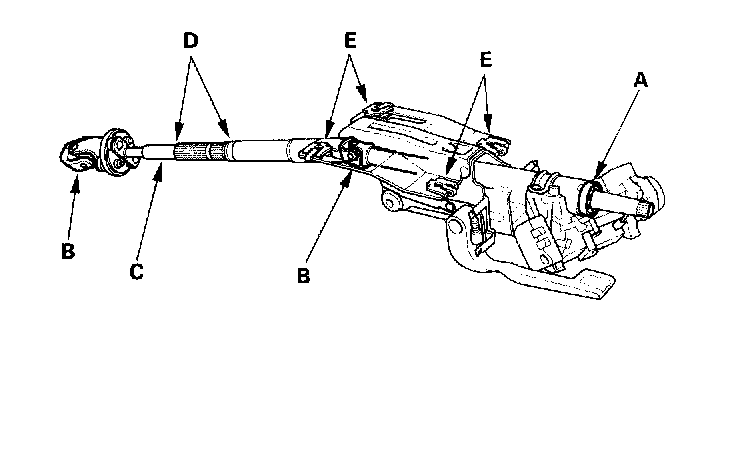

- Check the steering column ball bearing (A) and the steering joint bearings (B) for play and proper movement. If any bearing is noisy or has excessive play, replace the steering column as an assembly.
- Check the lower side shaft (C) for smooth movement in and out. If the lower slide shah is removed, slip it into the upper shah by aligning the paint marks (D). If it sticks or binds, replace the steering column as an assembly.
- Check the sliding capsules (E) for distortion or breakage. If there is distortion or breakage, replace the steering column as an assembly.
- Check the tilt mechanism and telescopic mechanism for movement and damage.
