Home >> Acura >> 2004 >> TSX L4-2.4L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Splice and Junction Connector Details >> Circuit M35 A/T Park Position (A/T)

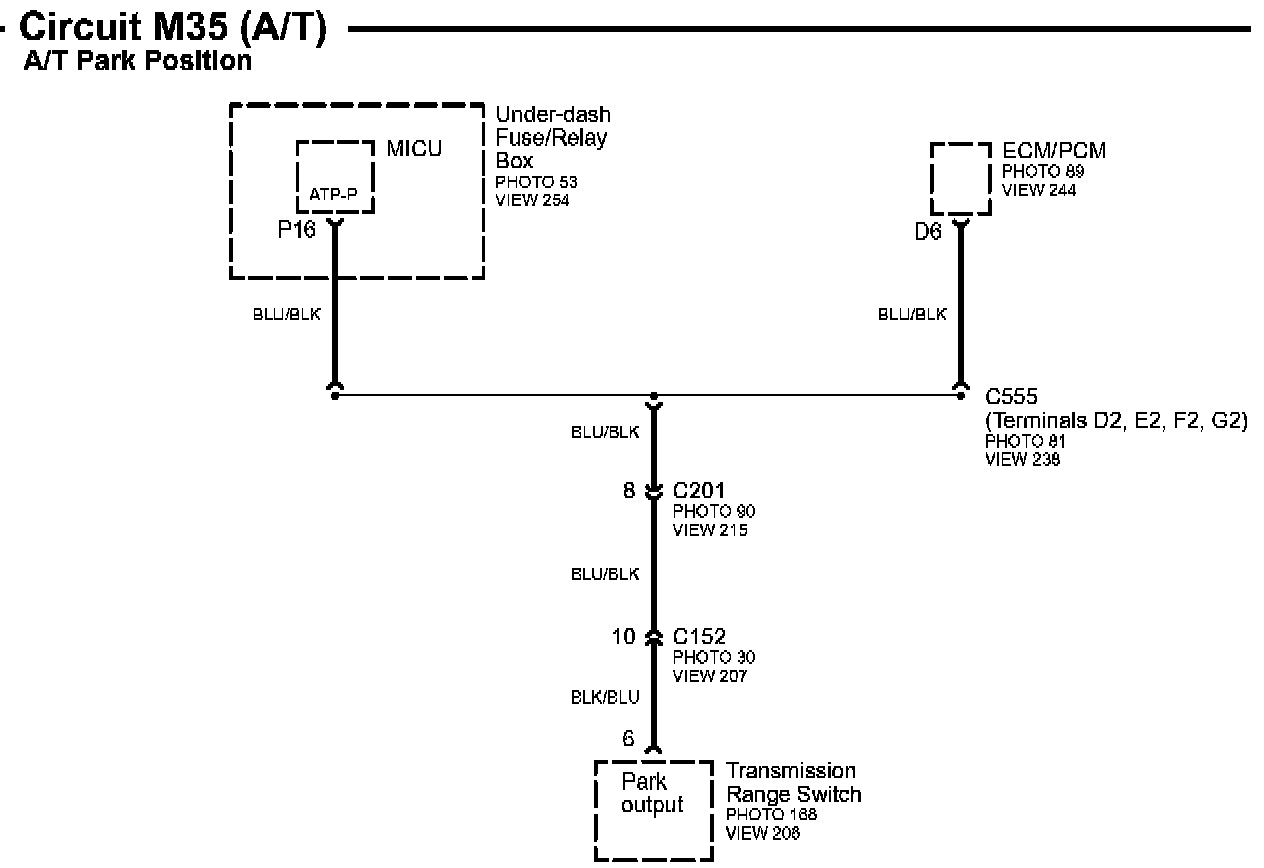

Circuit M35 A/T Park Position (A/T)

Circuit M35 A/T Park Position (A/T):
