Standards and Service Limits

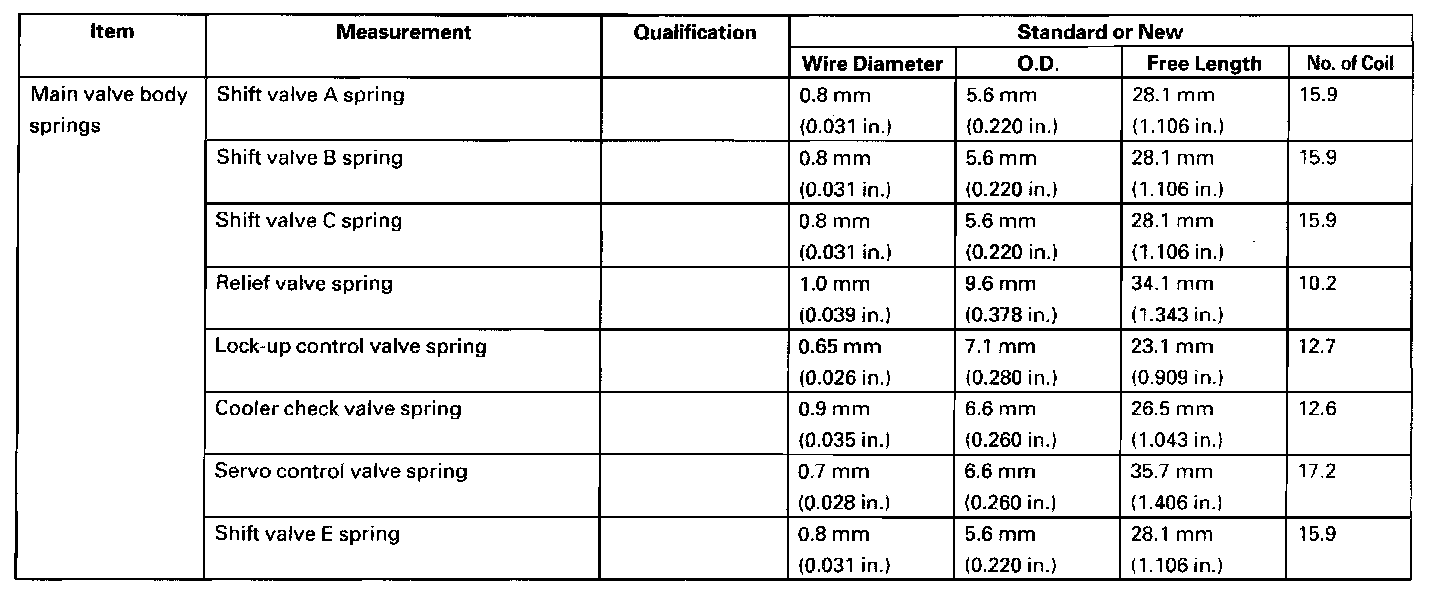

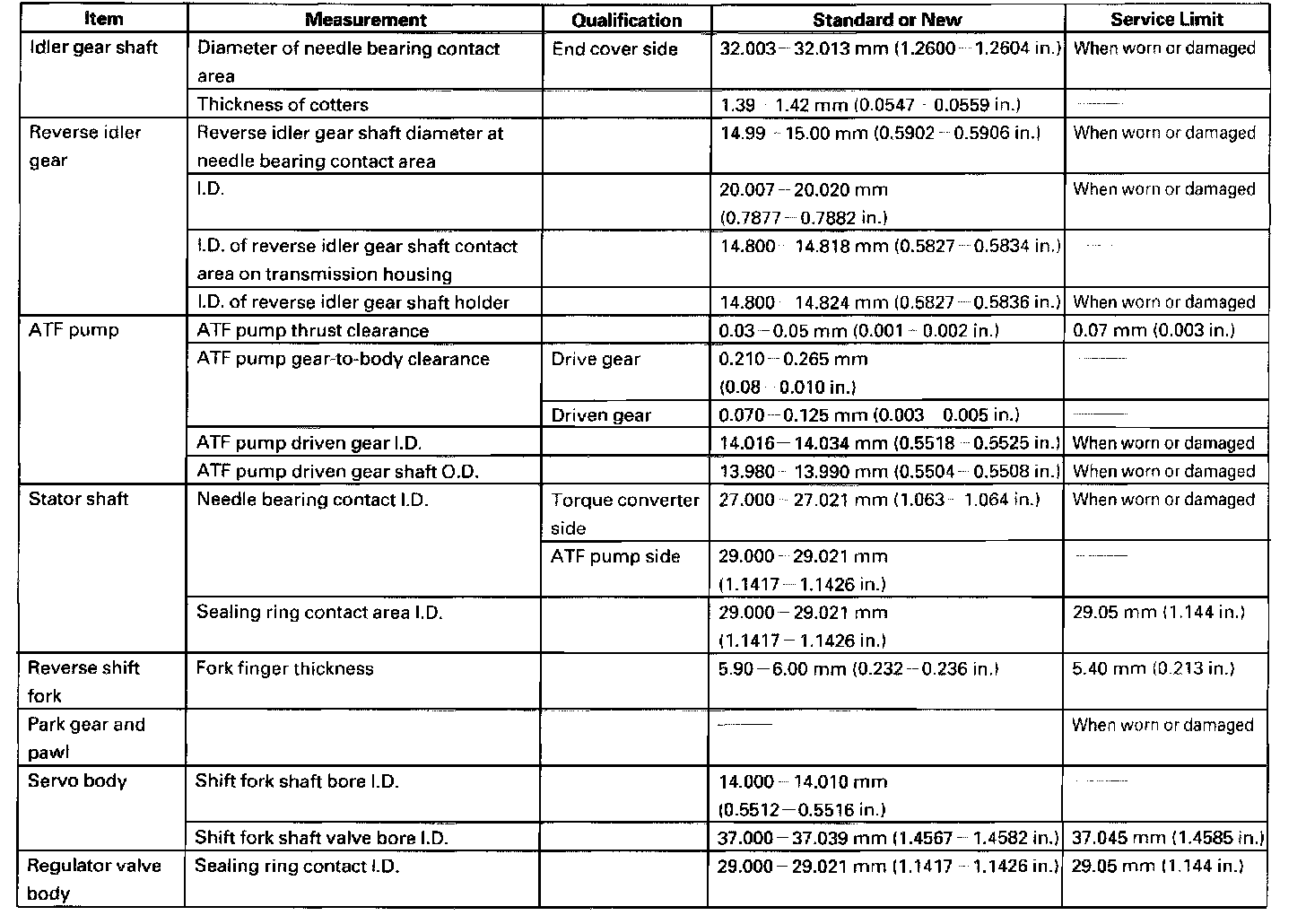

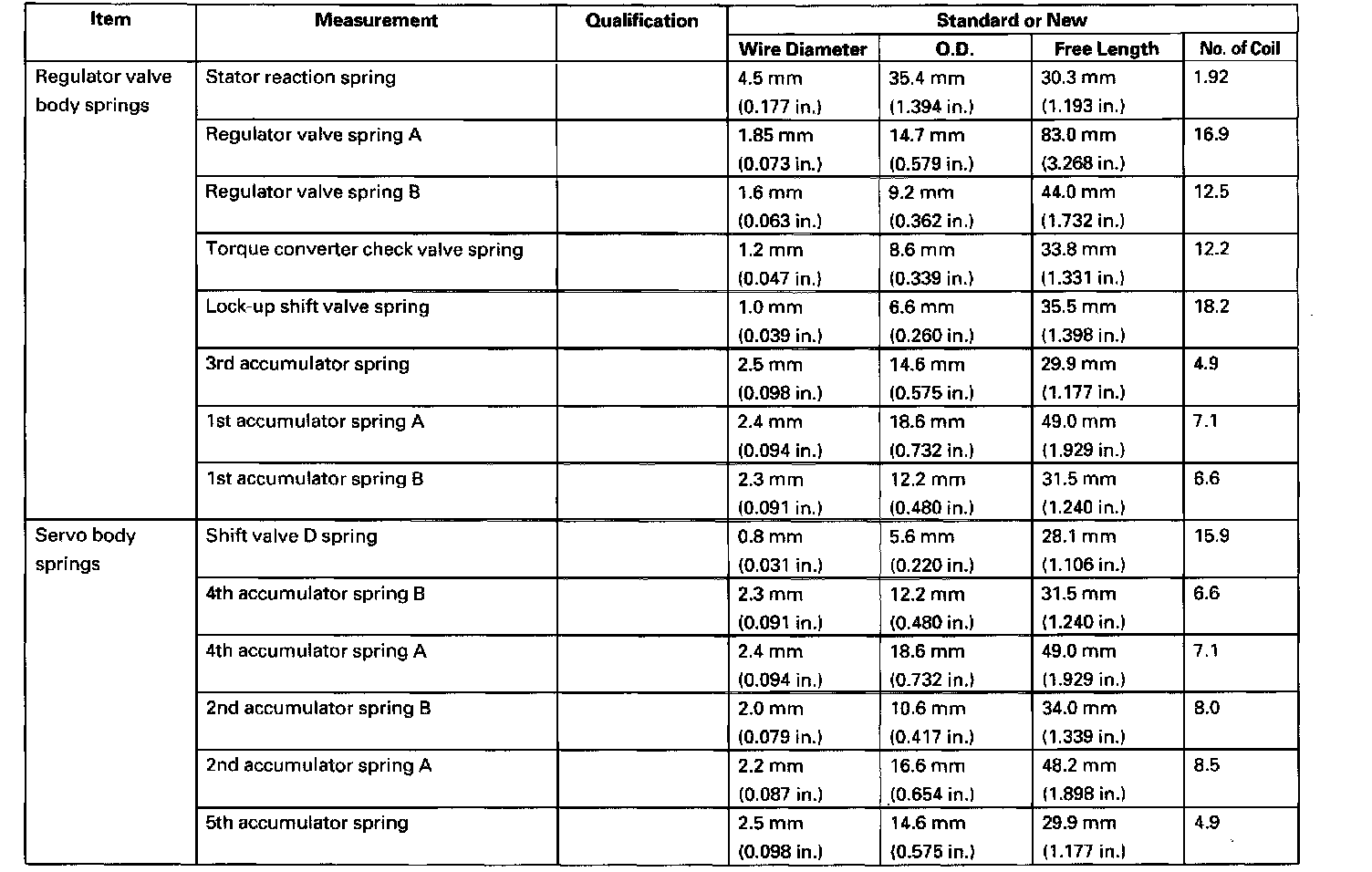

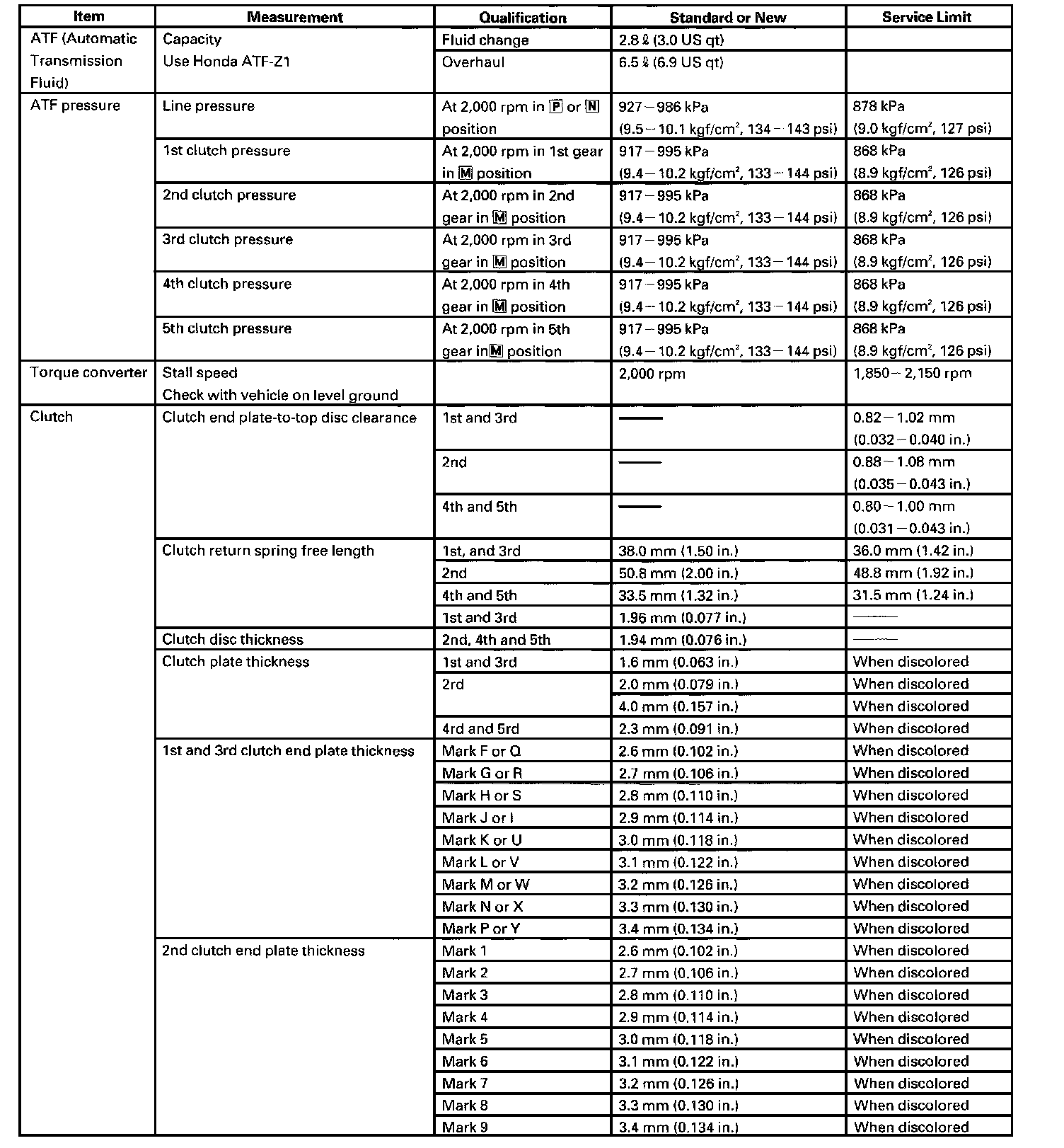

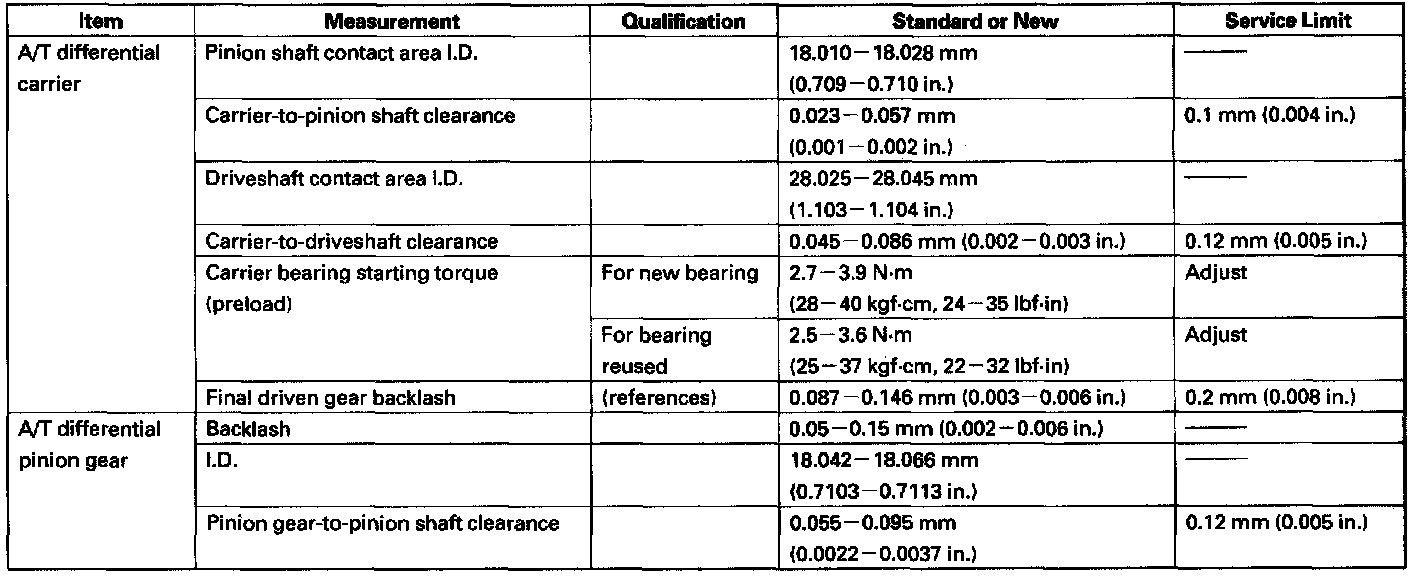

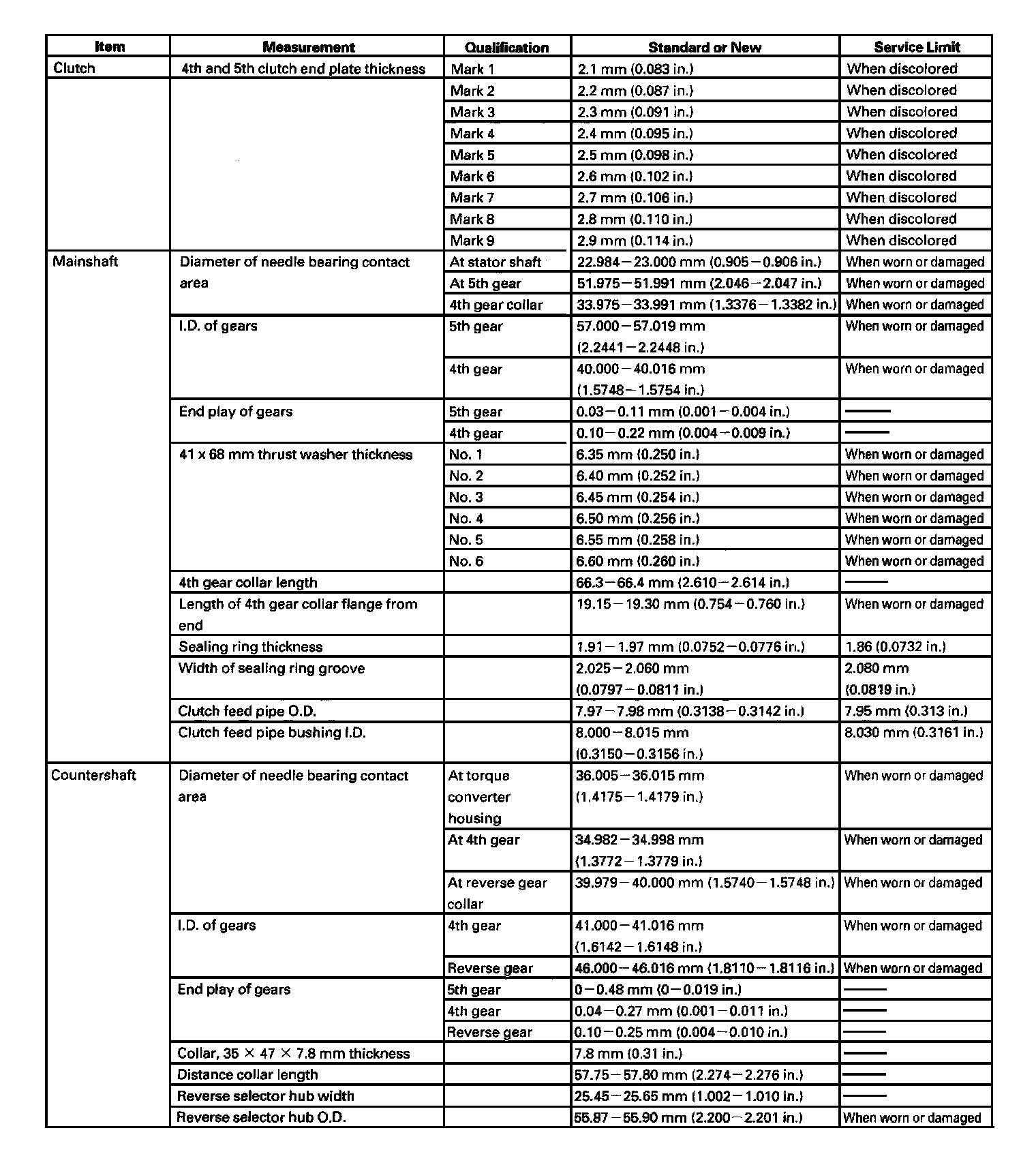

Automatic Transmission And A/T Differential, Part 1 Of 7:



Automatic Transmission And A/T Differential, Part 2 Of 7:



Automatic Transmission And A/T Differential, Part 3 Of 7:



Automatic Transmission And A/T Differential, Part 4 Of 7:



Automatic Transmission And A/T Differential, Part 5 Of 7:



Automatic Transmission And A/T Differential, Part 6 Of 7:



Automatic Transmission And A/T Differential, Part 7 Of 7:
