Center Seat Belt and Seat Belt Buckles
Rear Seat Belt ReplacementNOTE: Check the rear seat belts for damage, and replace them if necessary. Be careful not to damage them during removal and installation
Center Seat Belt and Seat Belt Buckles
1. Remove the rear seat cushion.

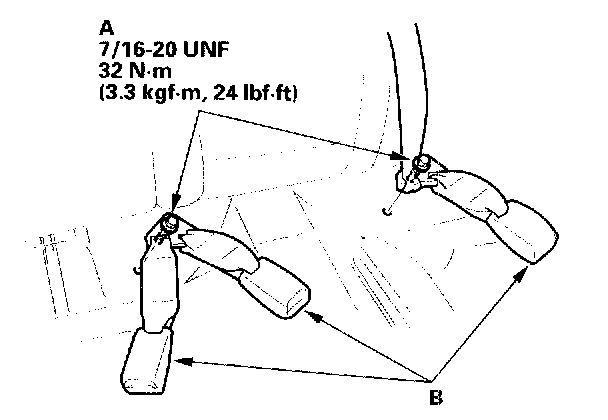

2. Remove the center anchor bolts (A), and remove the seat belt buckles (B).
3. Remove the rear shelf.
4. Remove the retractor mounting self-lapping ET screw (A) and the retractor bolt (B), then remove the center seat belt (C) and retractor (D).

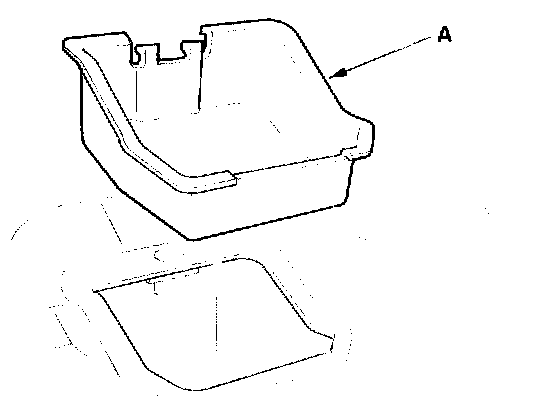

5. Remove the protector (A).
6. Install the seat belt and buckles in the reverse order of removal, and note these items:
- Check that the retractor locking mechanism functions.

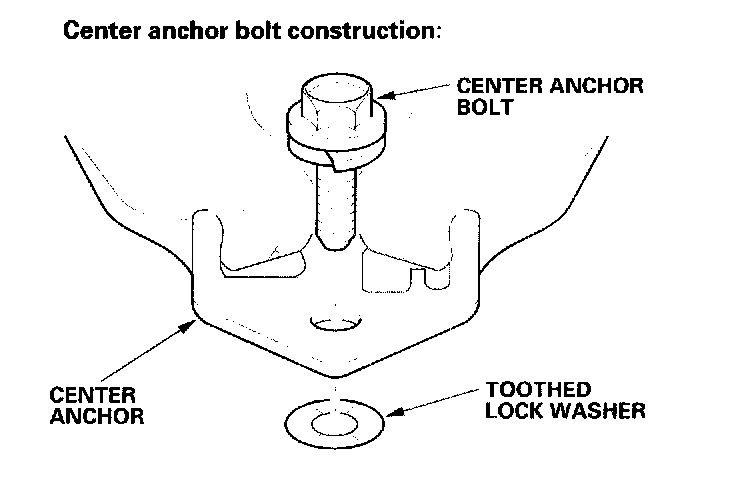

- Assemble the washers on the center anchor bolt as shown.
- Before installing the center anchor bolt, make sure there are no twists or kinks in the center belt.
