With Manufacturer's Scan Tool
Erasing the DTC MemoryWith HDS
1. Make sure the ignition switch is OFF.

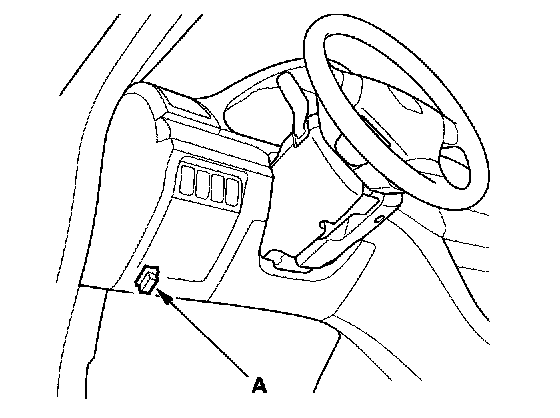

2. Connect the HDS to the DLC (A).
3. Turn the ignition switch ON (II).
4. Select DTC CLEAR in the TEST MODE MENU of the HDS. This erases the DTC(s).
5. Turn the ignition switch OFF, and wait for 10 seconds.
6. Disconnect the HDS from the DLC.
With Manual Mode
Special Tools Required
SCS Service Connector 07PA2-0010100
To erase the DTC(s) from the SRS unit, use the HDS, or the following procedure.
1. Make sure the ignition switch is OFF.

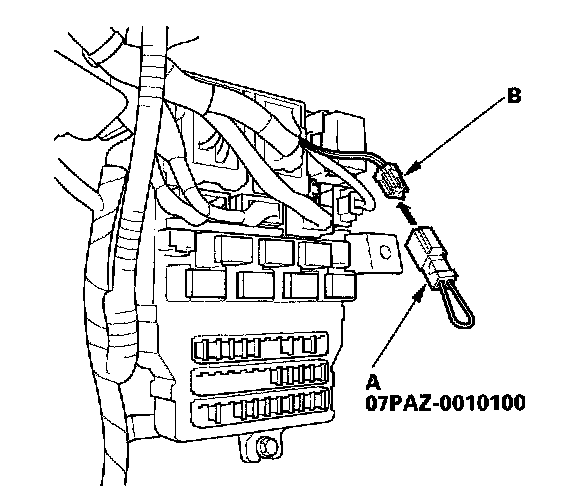

2. Connect the SCS service connector (A) to the MES 2P connector (B). Do not use a jumper wire.
3. Turn the ignition switch ON (II).
4. The SRS indicator will come on for about 6 seconds, and then go off. Remove the SCS service connector from the MES connector (2P) within 4 seconds after the indicator goes off.
5. The SRS indicator will come on again. Reconnect the SCS service connector to the MES connector (2P) within 4 seconds after the indicator comes on.
6. When the SRS indicator goes off, remove the SCS service connector from the MES connector (2P) within 4 seconds.
7. The SRS indicator will blink two times indicating that the memory has been erased.
8. Turn the ignition switch OFF, and wait for 10 seconds.
9. Turn the ignition switch ON (II) again. The SRS is OK if the SRS indicator comes on for 6 seconds, and then goes off.
