Home
>>
Acura
>>
2004
>>
TSX L4-2.4L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Fuel Pump
>>
Diagrams
>>
Connector Views
Connector Views

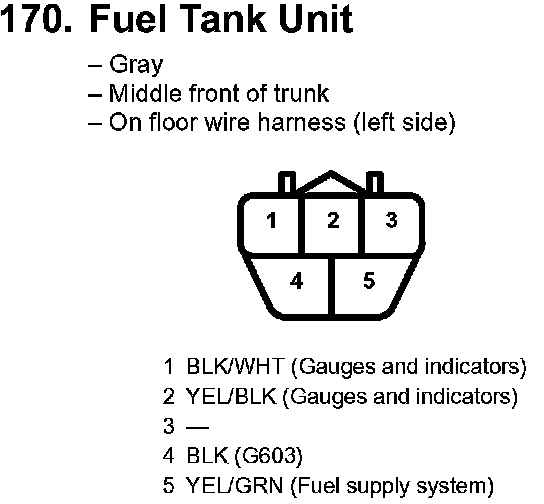

170. Fuel Tank Unit:
