Positive Crankcase Ventilation Valve: Service and Repair

PCV Valve Replacement

1. Disconnect the PCV hose.

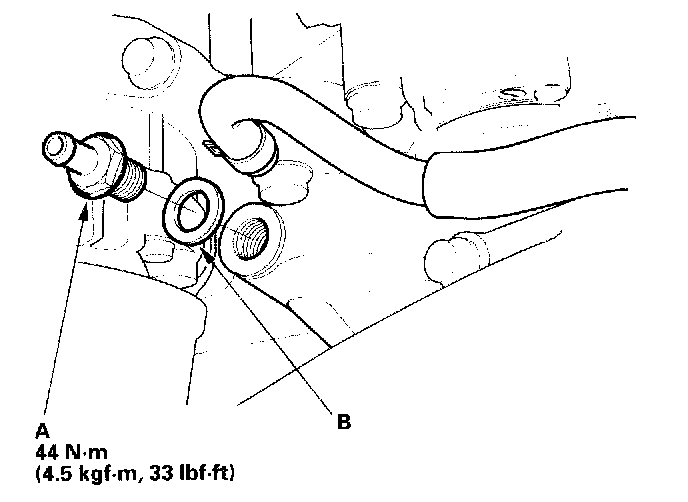

2. Remove the PCV valve (A).
3. Install the valve in the reverse order of removal with a new washer (B).
