ECM/PCM Terminal Values

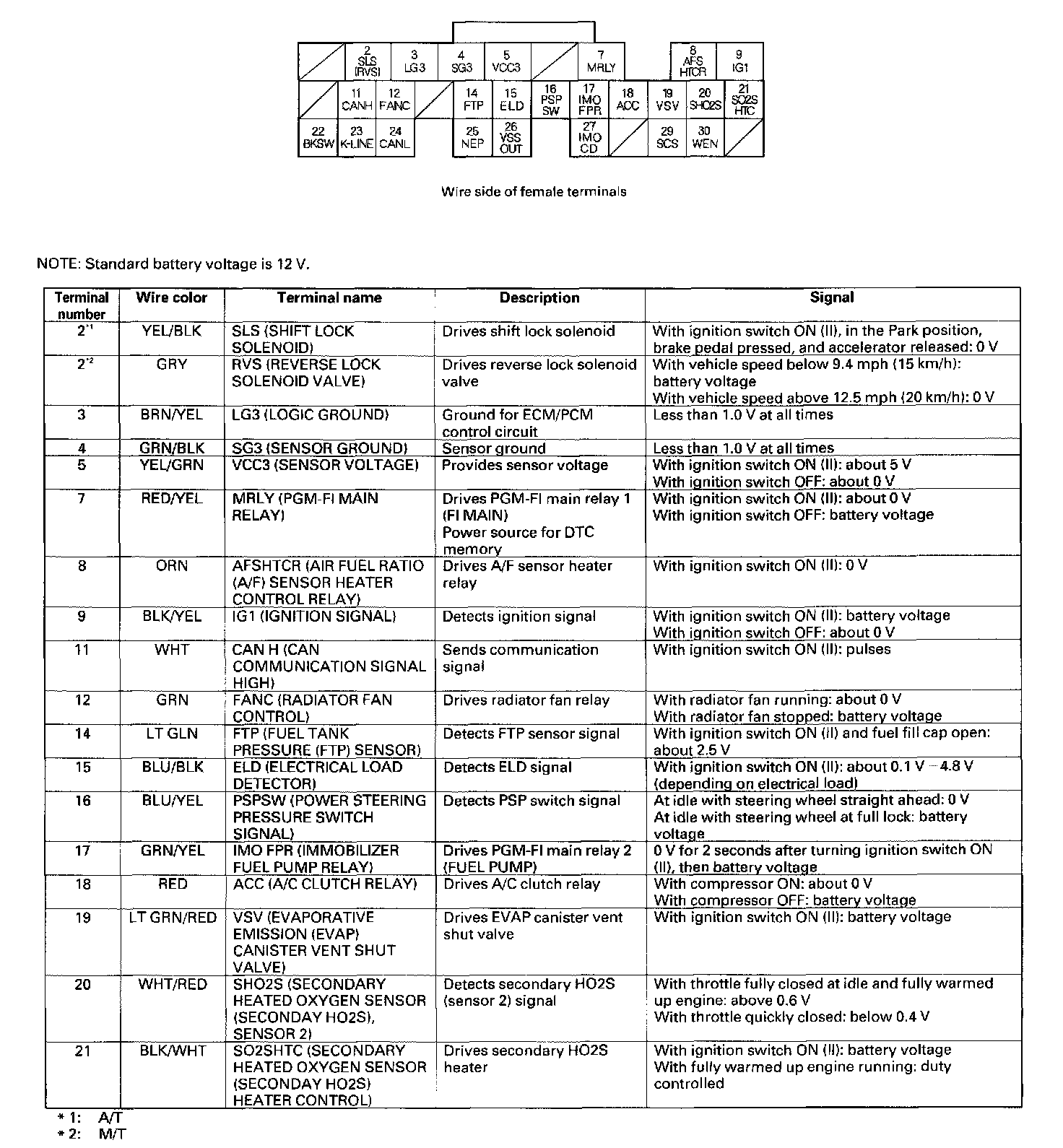

ECM/PCM Inputs And Outputs At Connector A (31P) Part 1:

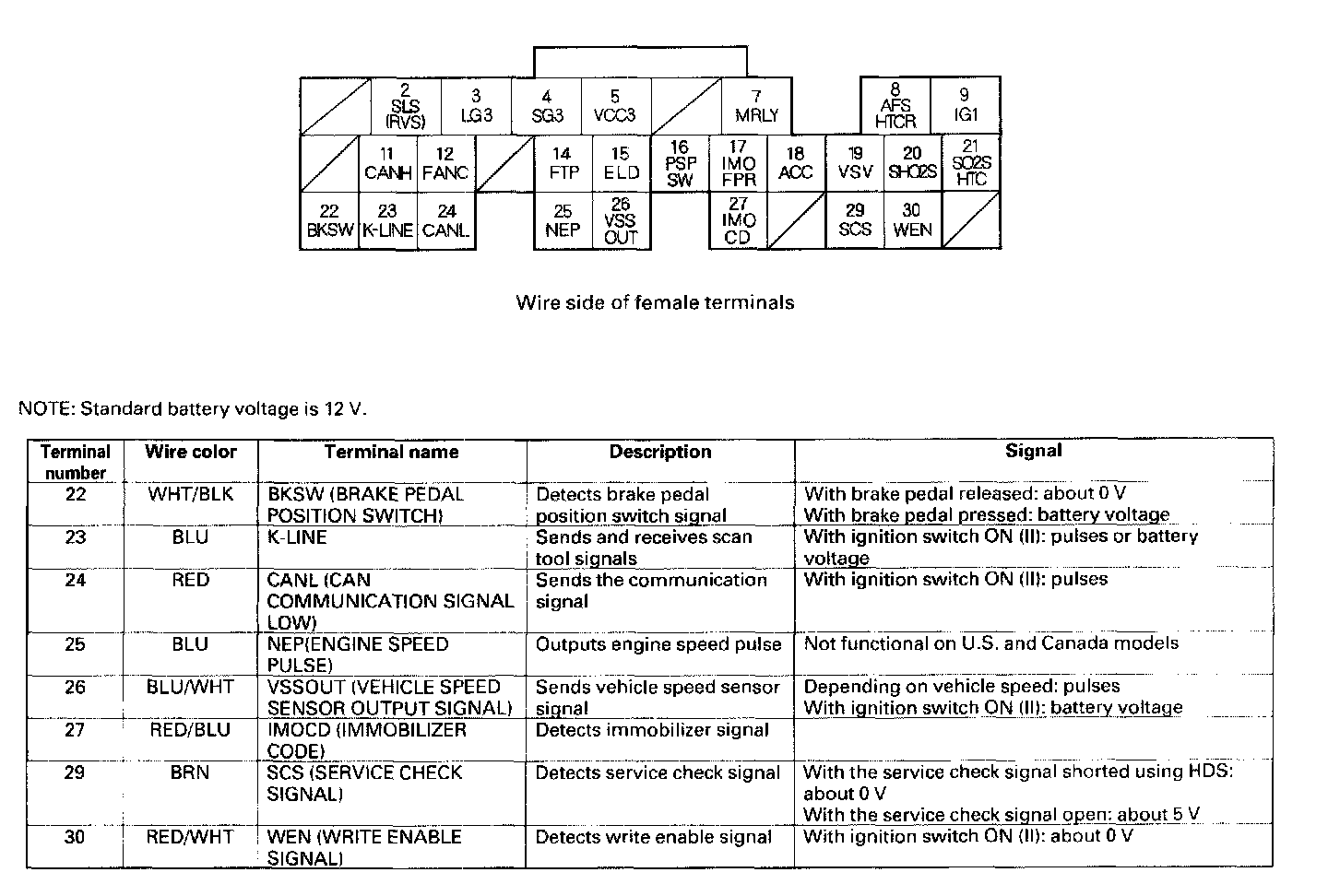

ECM/PCM Inputs And Outputs At Connector A (31P) Part 2:

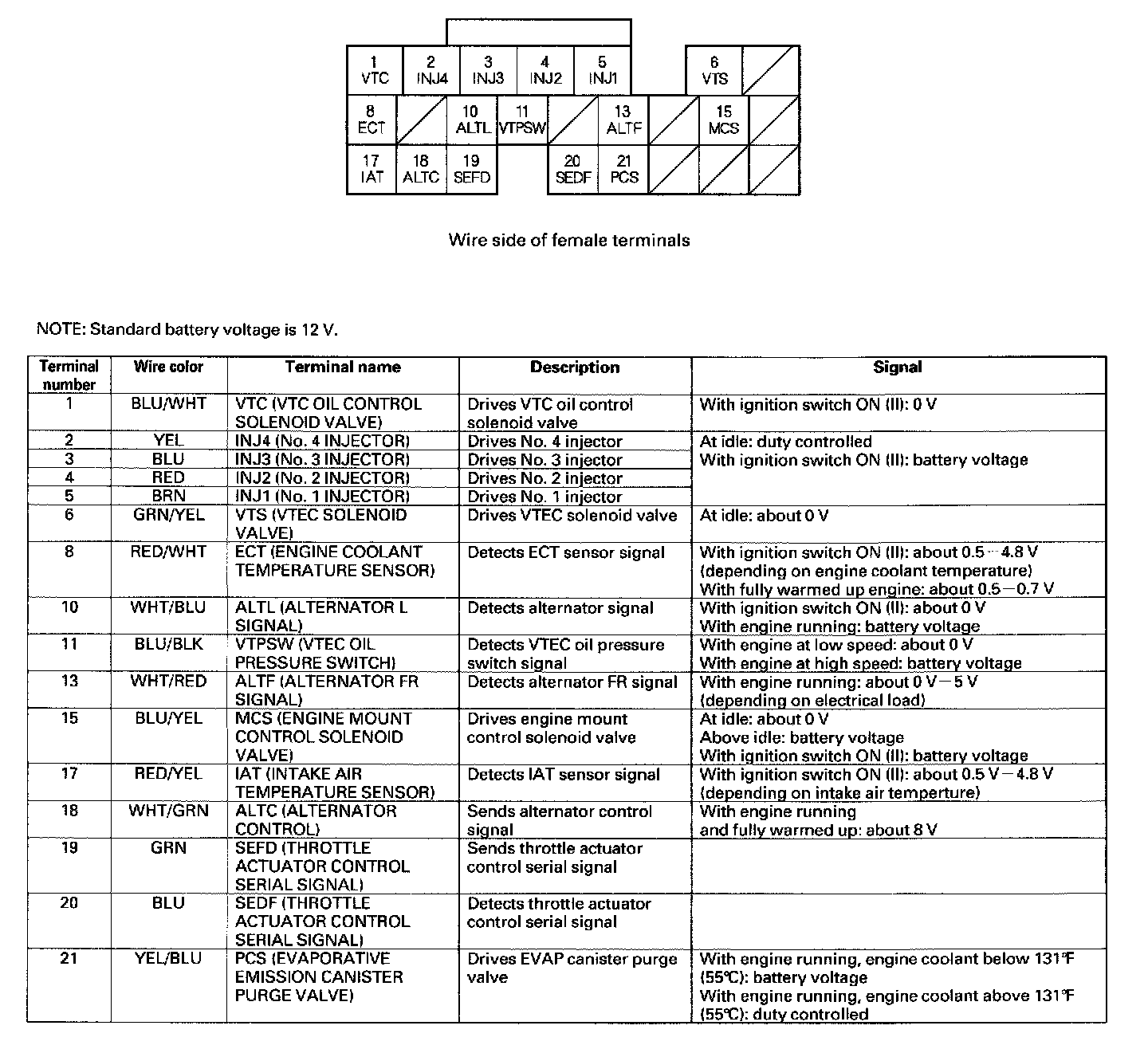

ECM/PCM Inputs And Outputs At Connector B (24P):

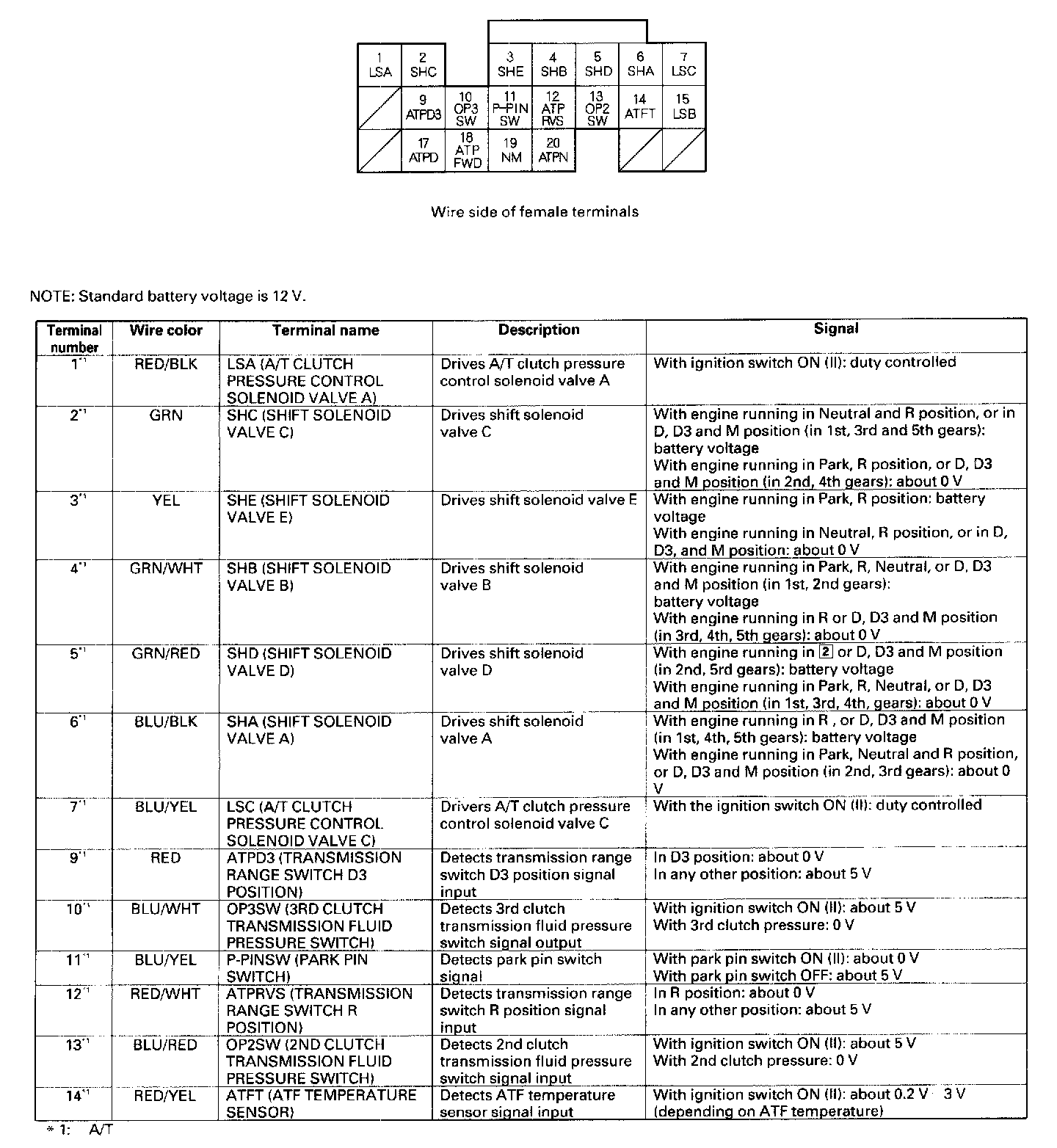

PCM Inputs And Outputs At Connector C (22P) Part 1:

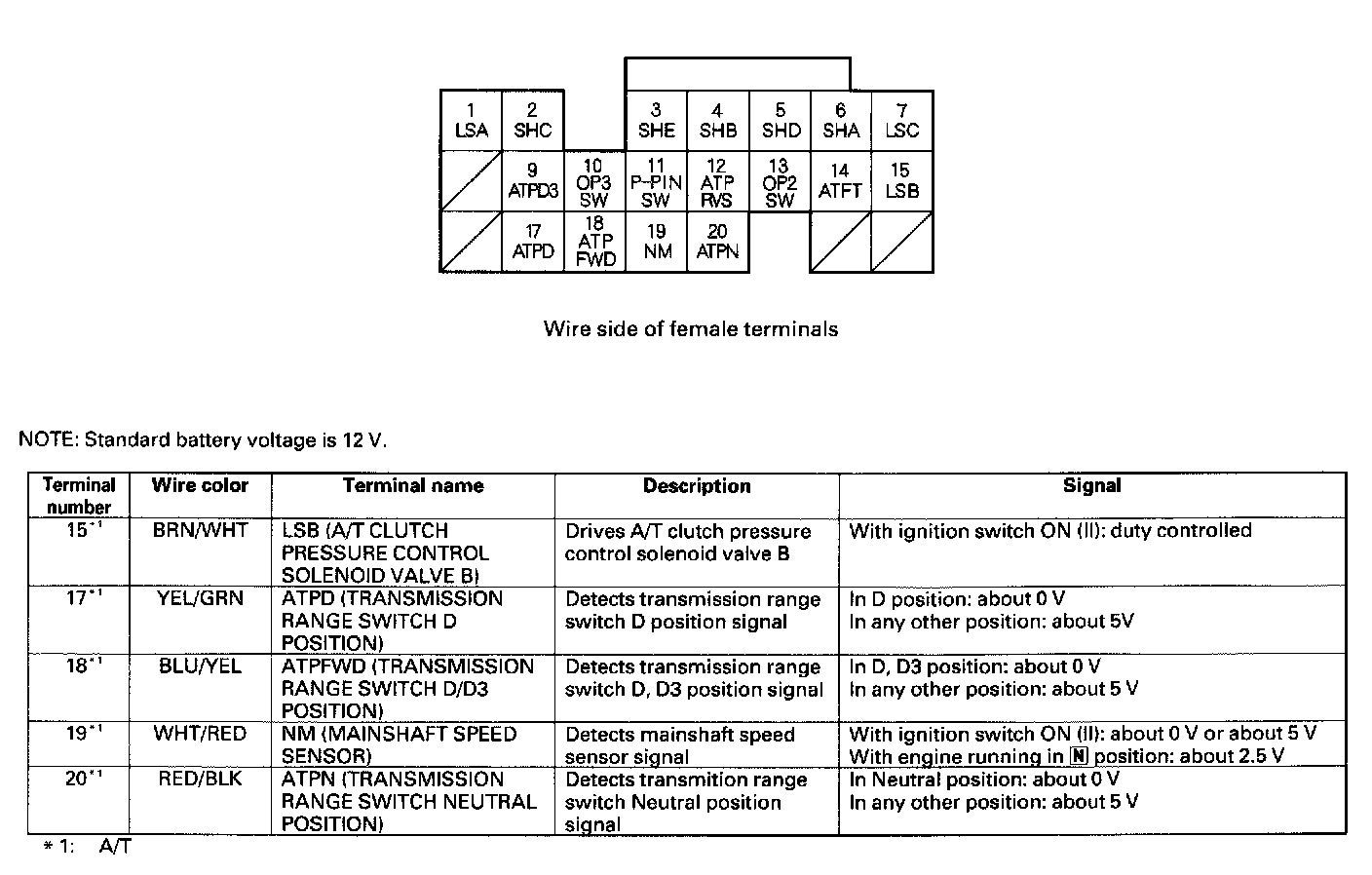

PCM Inputs And Outputs At Connector C (22P) Part 2:

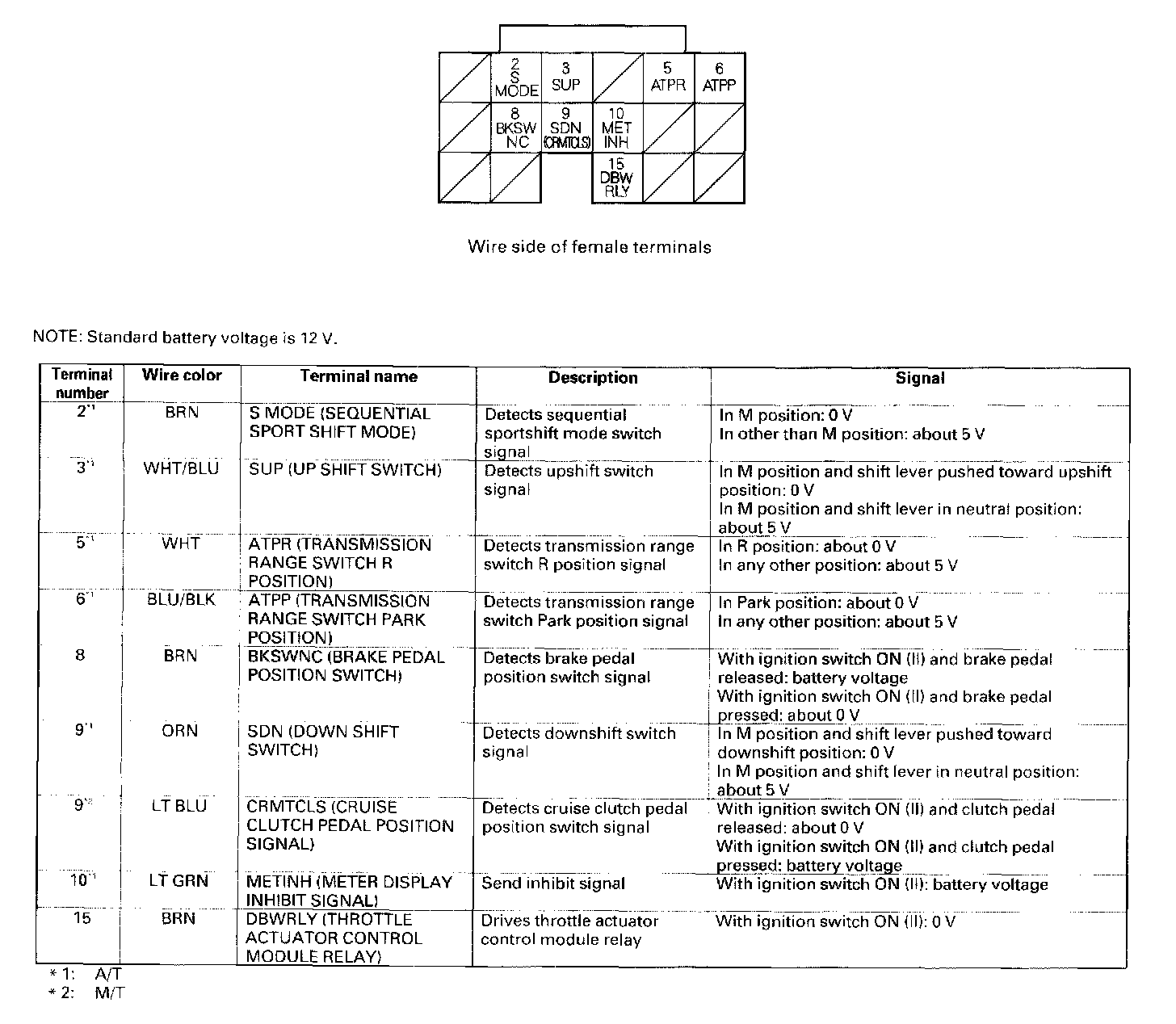

ECM/PCM Inputs And Outputs At Connector D (17P):

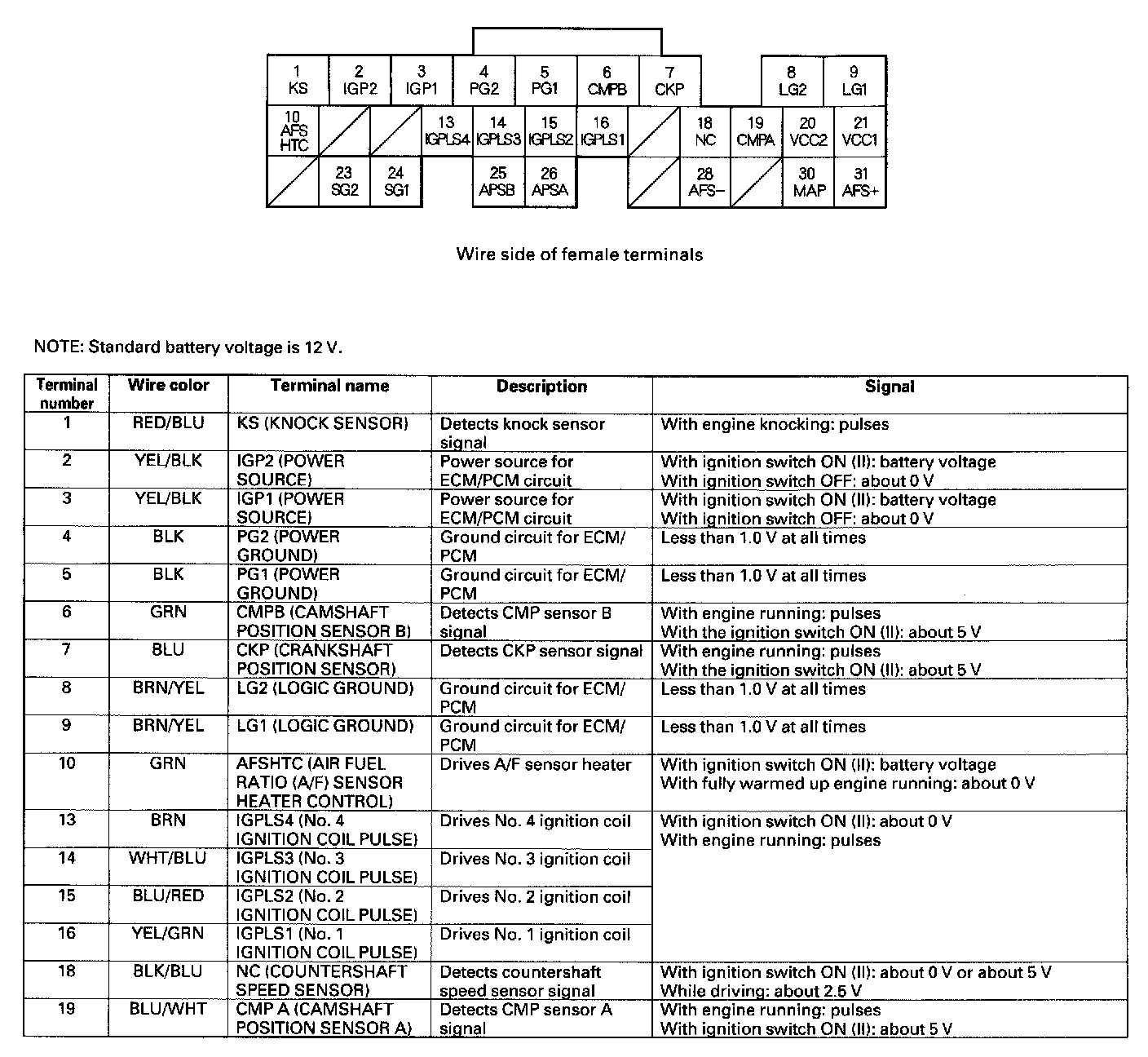

ECM/PCM Inputs And Outputs At Connector E (31P) Part 1:

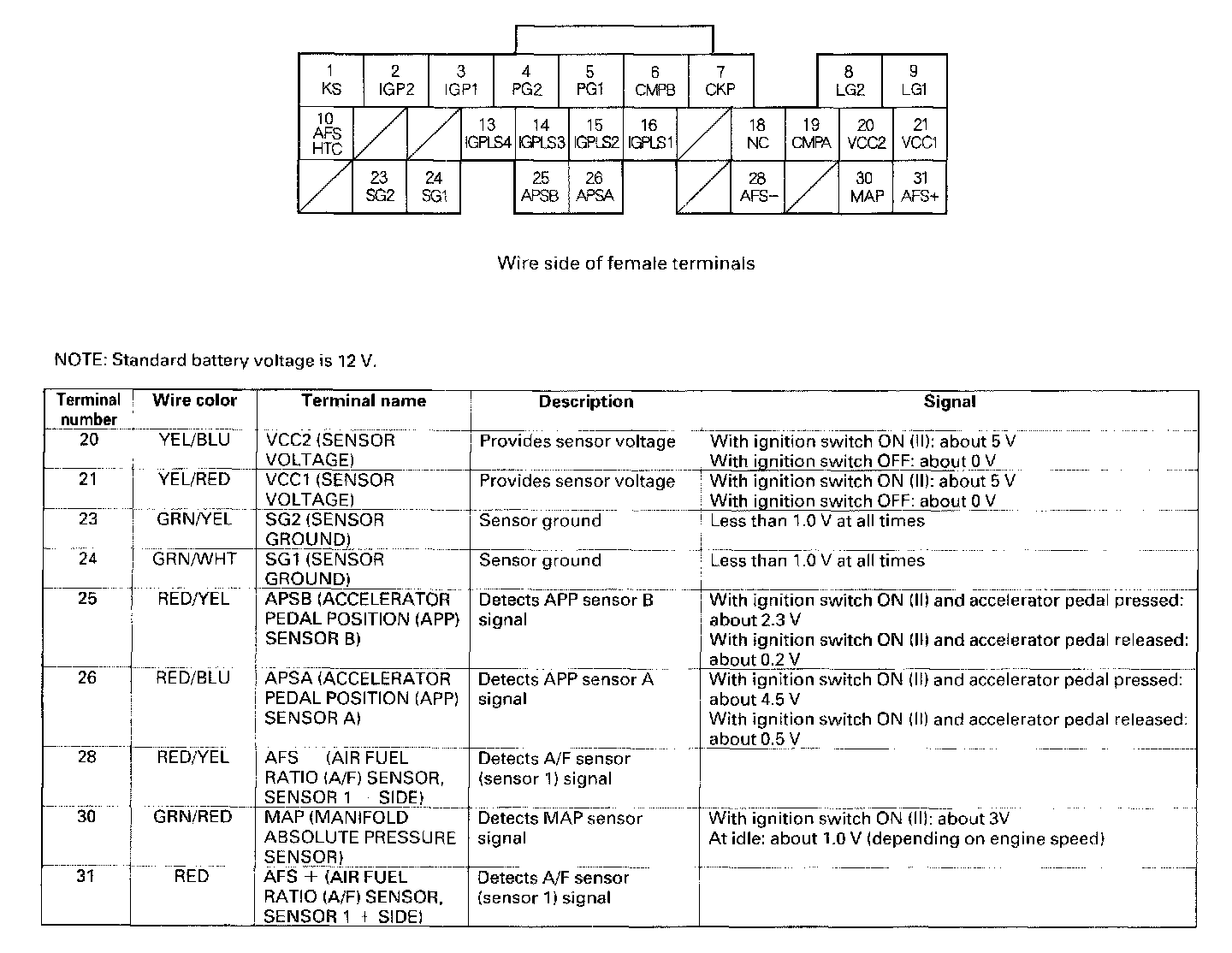

ECM/PCM Inputs And Outputs At Connector E (31P) Part 2:
