Power and Ground Distribution
>>
Multiple Junction Connector
>>
Locations
Multiple Junction Connector: Locations

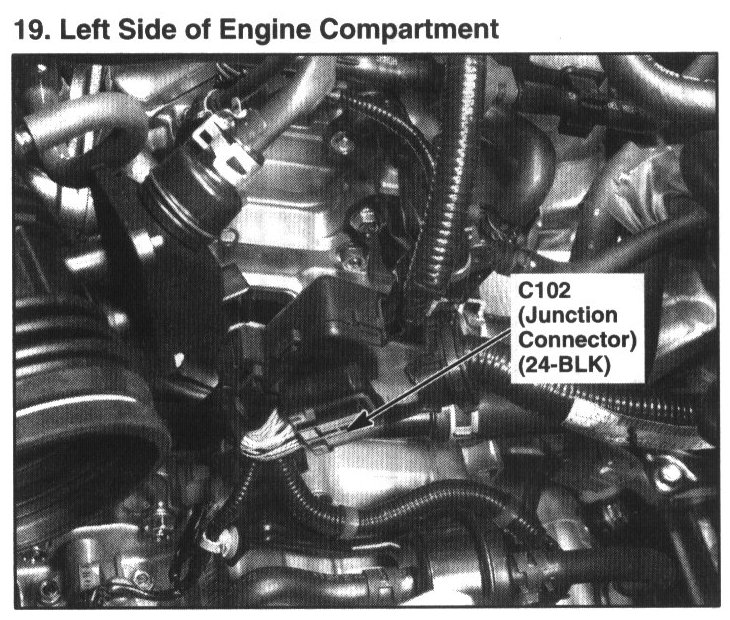

19. Left Side Of Engine Compartment:

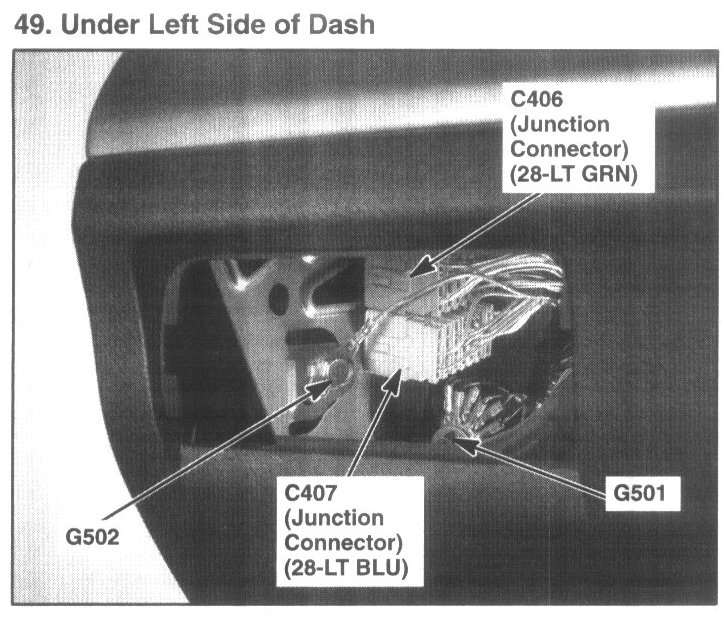

49. Under Left Side Of Dash:

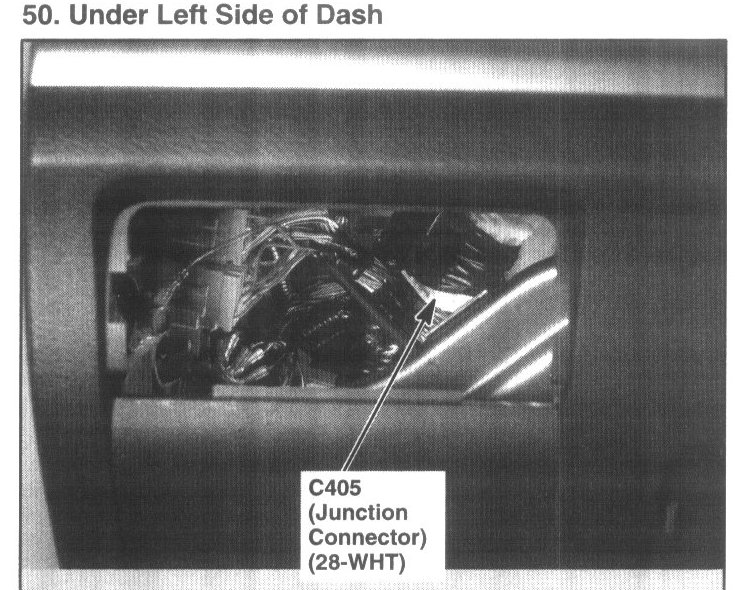

50. Under Left Side Of Dash:

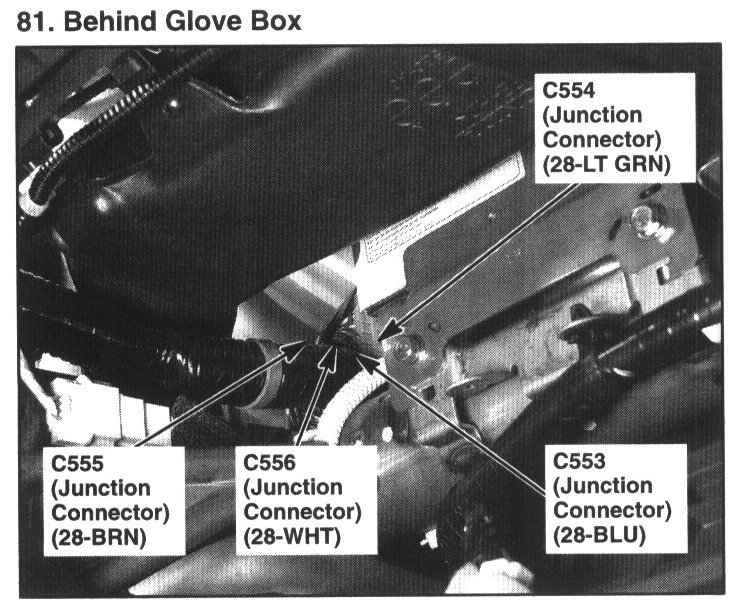

81. Behind Glove Box:
