Cable Reel Subharness
Cable Reel Subharness

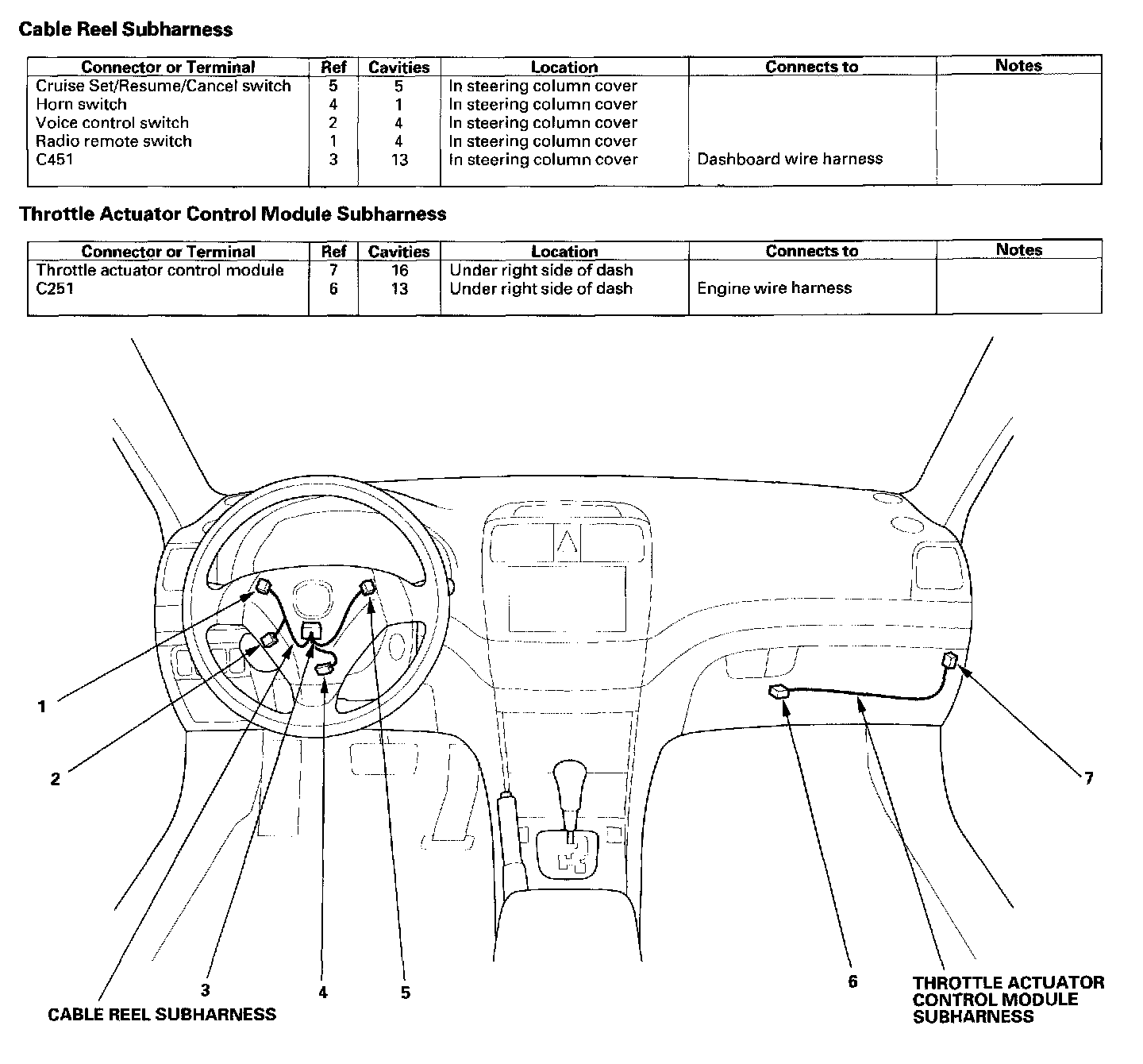

Cable Reel Subharness/Throttle Actuator Control Module Subharness:

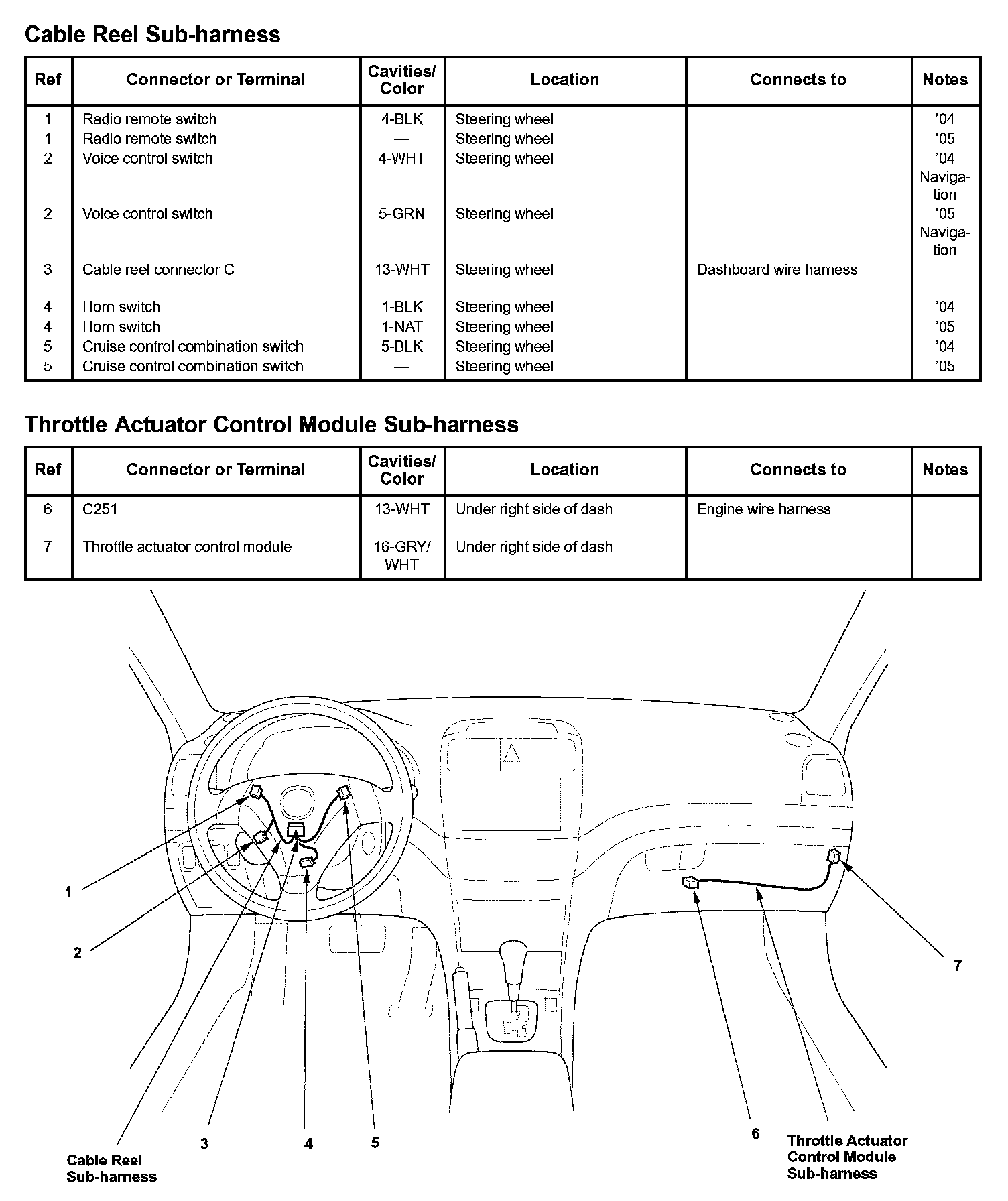

Cable Reel Sub-harness/Throttle Actuator Control Module Sub-harness:
