How to Check For DTCs With the HDS

How to Check for DTCs with the HDS

1. Make sure the ignition switch is OFF.

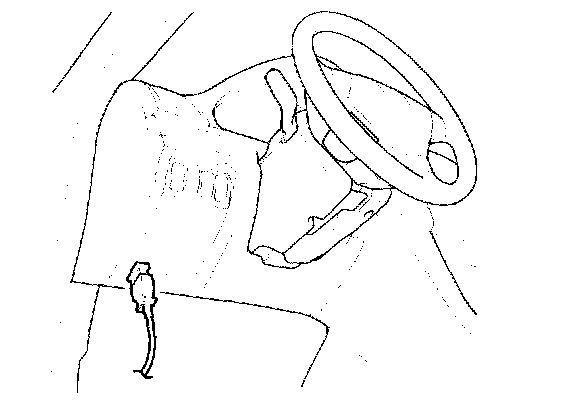

2. Connect the HDS to the Data Link Connector (DLC) located under the driver's side of the dashboard.
3. Turn the ignition switch ON (II).
4. Select DTCs in the body electrical/climate control mode MENU of the HDS.
5. Check for DTCs. If a DTCs indicated, go to the next step. If no DTC(s) indicated, refer to symptom troubleshooting.
6. Turn the ignition switch OFF.
7. Disconnect the HDS from the DLC.
8. Do with the troubleshooting procedure for the DTC indicated.
