Tensioner Pulley Replacement
Tensioner Pulley Replacement1. Remove the drive belt.

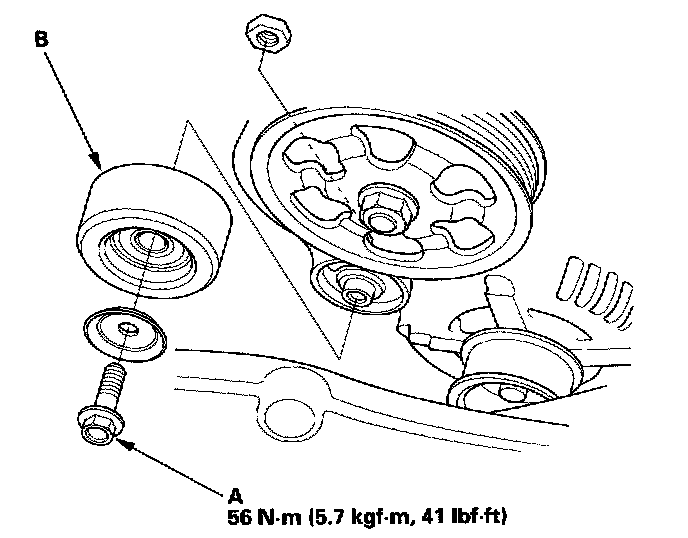

2. Remove the pulley bolt (A), then remove the tensioner pulley (B).
3. Install the tensioner pulley in the reverse order of removal.
