Valve Guide Inspection
Valve Stem-to-Guide Clearance Inspection1. Remove the valves.

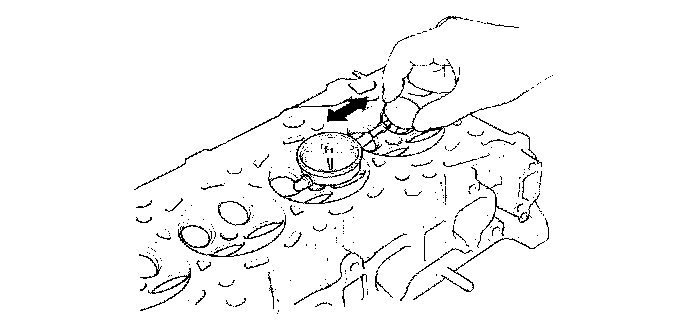

2. Slide the valve out of its guide about 10 mm, then measure the guide-to-stem clearance with a dial indicator while rocking the stem in the direction of normal thrust (wobble method).
^ If the measurement exceeds the service limit, recheck it using a new valve.
^ If the measurement is now within the service limit, reassemble using a new valve.
^ If the measurement with a new valve still exceeds the service limit, go to step 3.
Intake Valve Stem-to-Guide Clearance
Standard (New): 0.06 - 0.11 mm (0.002 - 0.004 inch)
Service Limit: 0.16 mm (0.006 inch)
Exhaust Valve Stem-to-Guide Clearance
Standard (New): 0.11 - 0.16 mm (0.004 - 0.006 inch)
Service Limit: 0.22 mm (0.009 inch)
3. Subtract the O.D. of the valve stem, measured with a micrometer, from the I.D. of the valve guide, measured with an inside micrometer or ball gauge. Take the measurements in three places along the valve stem and three places inside the valve guide. The difference between the largest guide measurement and the smallest stem measurement should not exceed the service limit.
Intake Valve Stem-to-Guide Clearance
Standard (New): 0.030 - 0.055 mm (0.0012 - 0.0022 inch)
Service Limit: 0.08 mm (0.003 inch)
Exhaust Valve Stem-to-Guide Clearance
Standard (New): 0.055 - 0.080 mm (0.0022 - 0.0031 inch)
Service Limit: 0.11 mm (0.004 inch)
