Valve, Spring, and Valve Seal Removal

Valve, Spring, and Valve Seal Removal

Special Tools Required
^ Valve spring compressor attachment 07757-PJ1010A

Identify the valves and valve springs as they are removed so that each item can be reinstalled in its original position.
1. Remove the cylinder head.

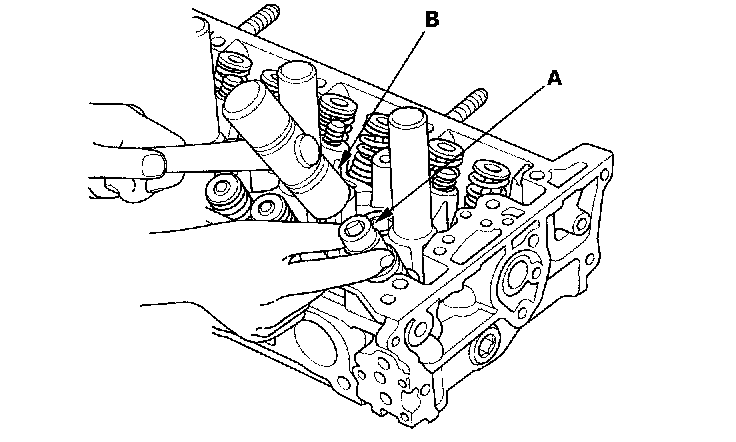

2. Using an appropriate-sized socket (A) and plastic mallet (B), lightly tap the valve retainer to loosen the valve keepers.

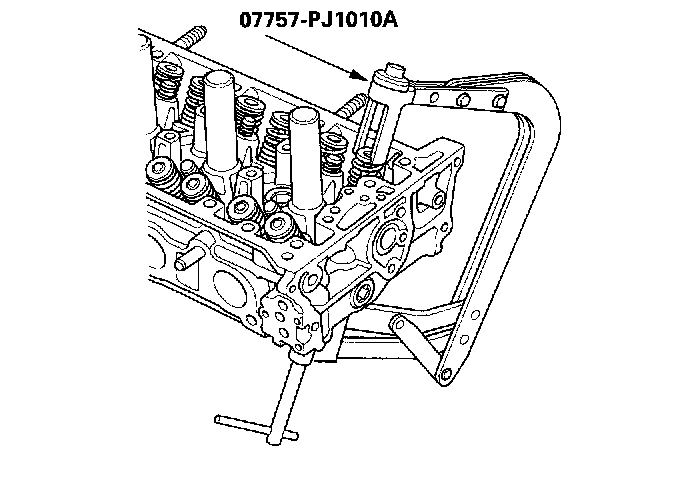

3. Install the spring compressor. Compress the spring, and remove the valve keepers.

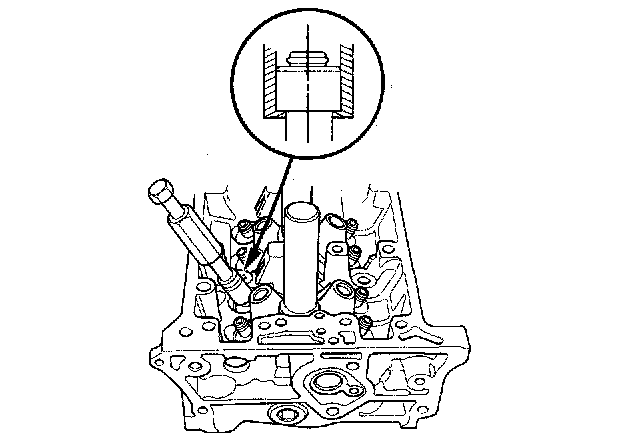

4. Install the valve guide seal remover.

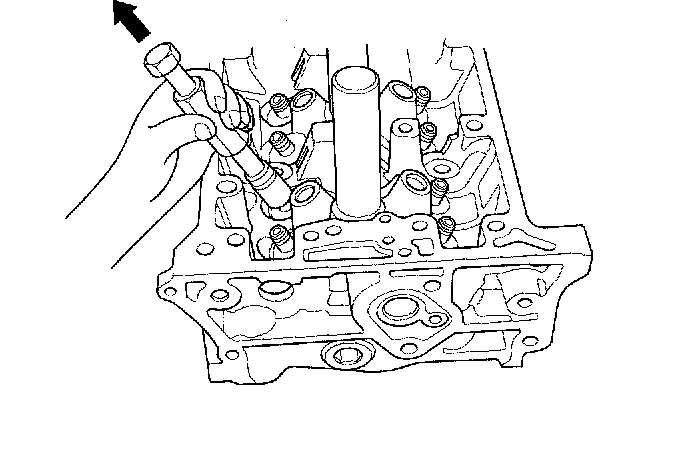

5. Remove the valve seal.
