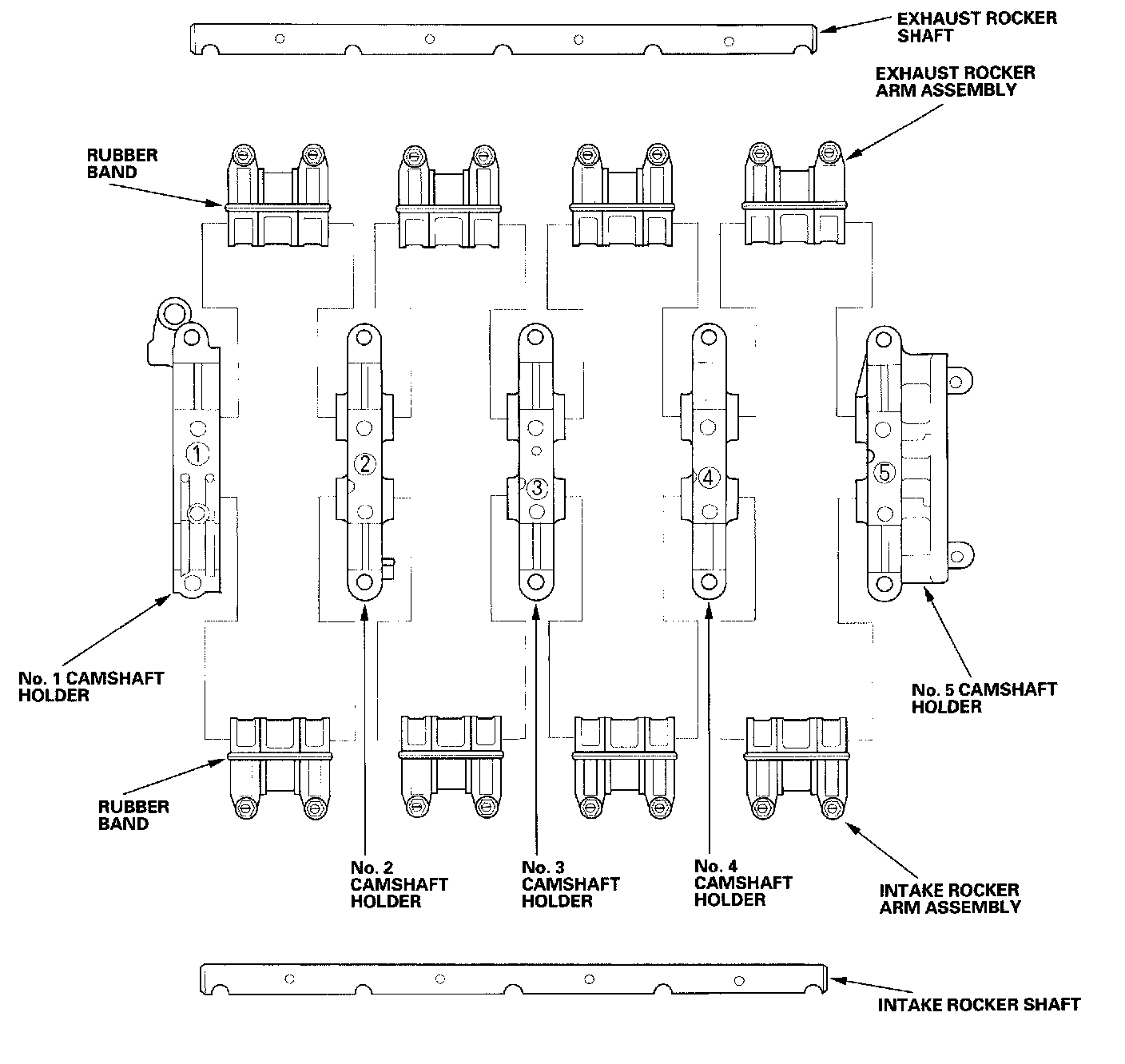

Rocker Arm and Shaft Disassembly/Reassembly

Rocker Arm and Shaft Disassembly/Reassembly

NOTE:
^ Identify parts as they are removed to ensure reinstallation in original location.
^ Inspect the rocker arm shaft and rocker arms.
^ The rocker arms must be installed in the same positions if reused.
^ When removing or installing the rocker arm assembly, do not remove the camshaft holder bolts. The bolts will keep the holders and rocker arms on the shaft.
^ Prior to reassembling, clean all the parts in solvent, dry them, and apply lubricant to any contact points.
^ Bundle the rocker arms with rubber bands to keep them together as a set.
