Cylinder Head Installation
Cylinder Head InstallationInstall the cylinder head in the reverse order of removal.

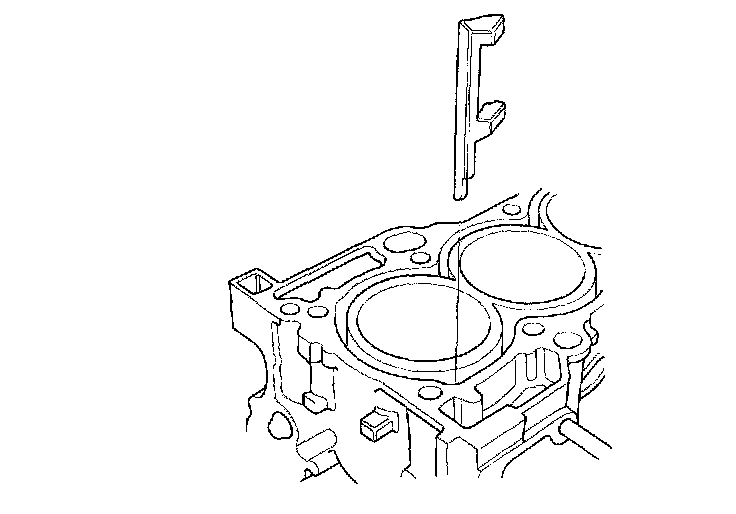

1. Install the new coolant separator in the cylinder block, when replacing the cylinder block.
2. Clean the cylinder head and block surface.

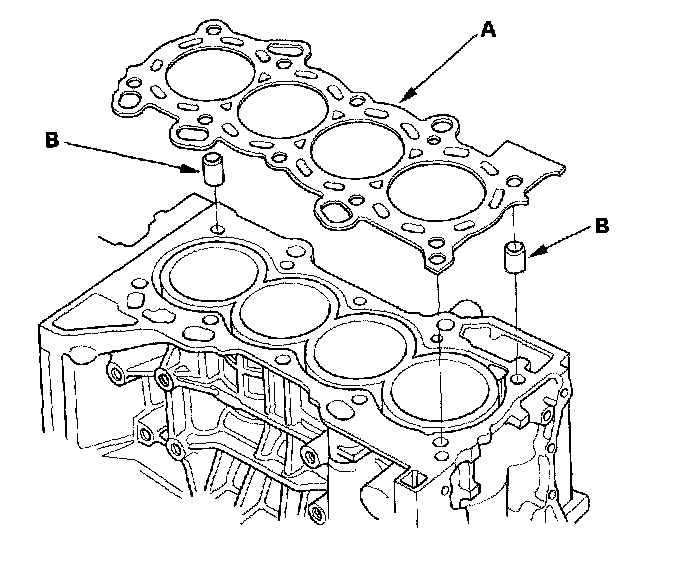

3. Install a new cylinder head gasket (A) and dowel pins (B) on the cylinder block. Always use a new cylinder head gasket.

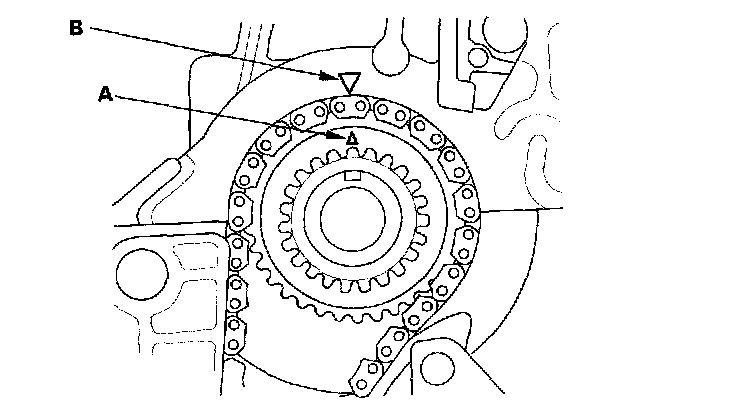

4. Set the crankshaft to Top Dead Center (TDC). Align the TDC mark (A) on the crankshaft sprocket with the pointer (B) on the cylinder block.
5. Install the cylinder head on the block.
6. Measure the diameter of each cylinder head bolt at point A and point B.
7. If either diameter is less than 10.6 mm (0.42 inch), replace the cylinder head bolt.
8. Apply engine oil to the threads and under the bolt heads of all cylinder head bolts.
9. Tighten the cylinder head bolts in sequence to 39 Nm (4.0 kgf-m, 29 ft. lbs.). Use a beam-type torque wrench. When using a preset-type torque wrench, be sure to tighten slowly and do not overtighten. If a bolt makes any noise while you are torquing it, loosen the bolt and retighten it from the first step.
Specified Torque 39 Nm (4.0 kgf-m, 29 ft. lbs.)
10. After torquing, tighten all cylinder head bolts in two steps (90° per step). If you are using a new cylinder head bolt, tighten the bolt an extra 90°.
11. Install the rocker arm assembly.
12. Install the cam chain.

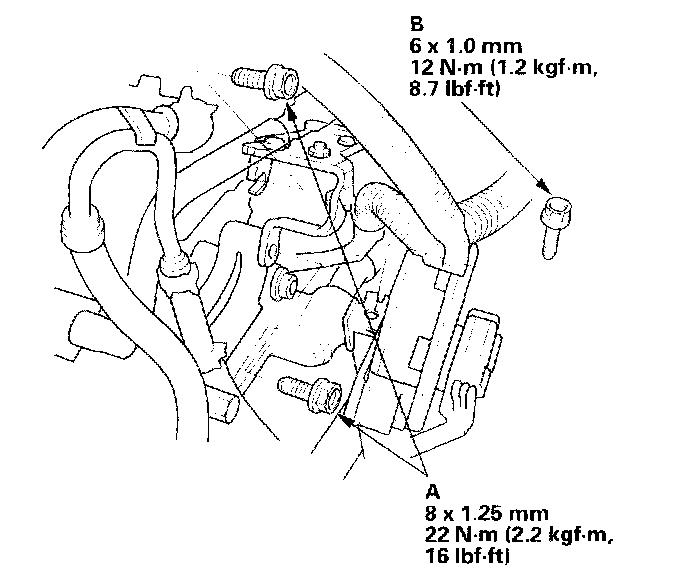

13. Tighten the two bolts (A) securing the evaporative emission (EVAP) canister purge valve bracket and tighten the bolt (B) securing the harness brackets.

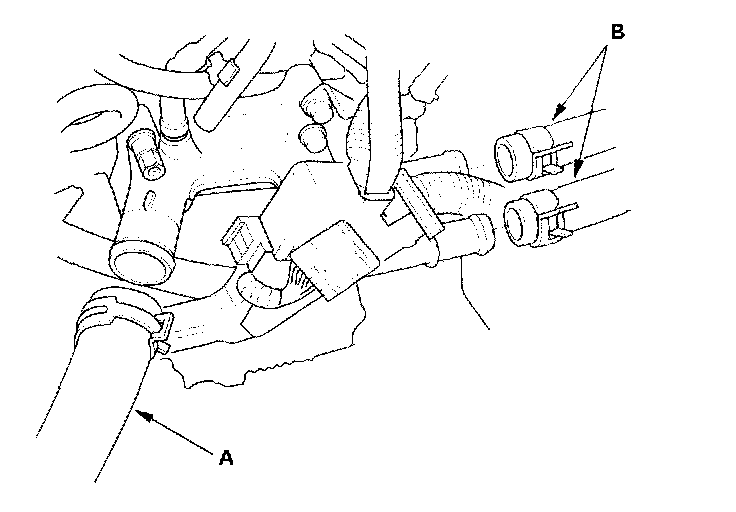

14. Install the upper radiator hose (A) and heater hoses (B).
15. Install the Positive Crankcase Ventilation (PCV) hose (A) and ground cable (B).
16. Install the water bypass hose (A).
17. Tighten the bolt (B) securing the connecting pipe.
18. Install the exhaust manifold.
19. Install the intake manifold.

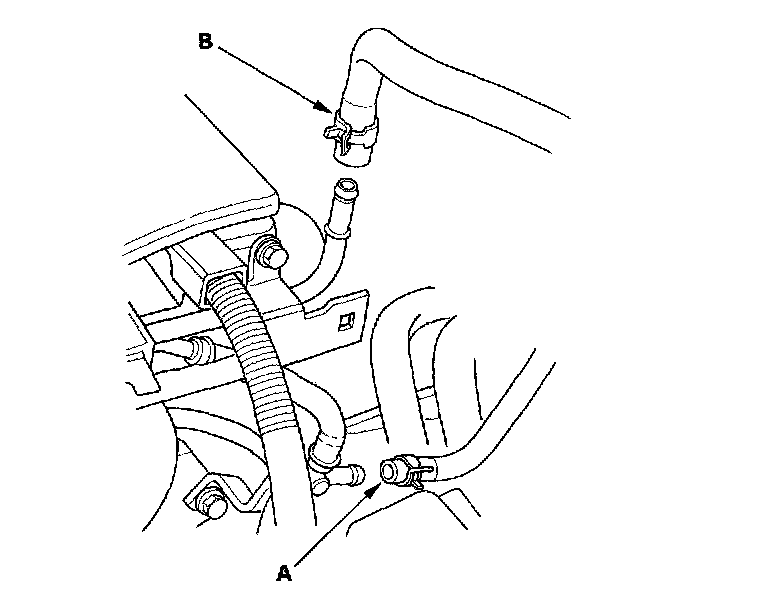

20. Install the evaporative emission (EVAP) canister hose (A) and brake booster vacuum hose (B).
21. Connect the fuel feed hose, then install the quick-connect fitting cover (A).

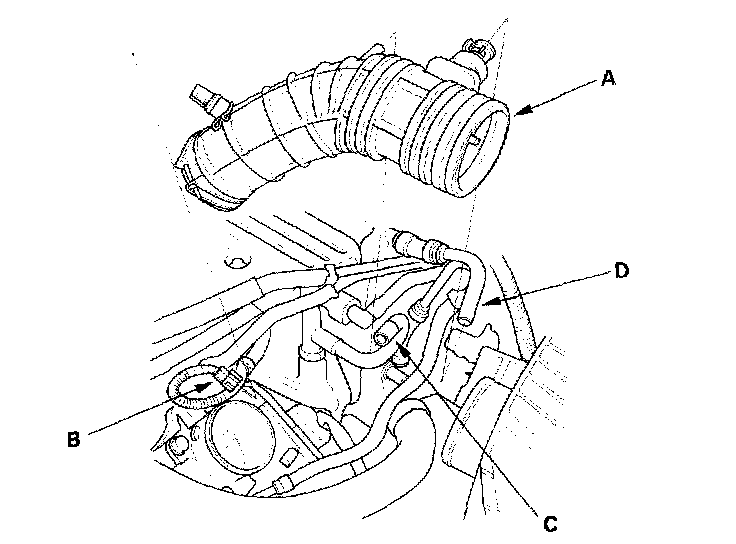

22. Install the intake air duct (A), then connect the Intake Air Temperature (IAT) sensor connector (B), and install the vacuum hose (C) and breather pipe (D).
23. After installation, check that all tubes, hoses and connectors are installed correctly.
24. Inspect for fuel leaks. Turn the ignition switch to ON (II) (do not operate the starter) so that the fuel pump runs for about 2 seconds and pressurizes the fuel line. Repeat this operation two or three times, then check for fuel leakage at any point in the fuel line.
25. Refill the radiator with engine coolant, and bleed air from the cooling system with the heater valve open.
26. Perform the Engine Control Module/Powertrain Control Module (ECM/PCM) idle learn procedure.
27. Inspect the idle speed.
28. Inspect the ignition timing.
29. Set the clock.
