Crankshaft Inspection
Crankshaft InspectionOut-of-Round and Taper
1. Remove the crankshaft from the cylinder block.
2. Clean the crankshaft oil passages with pipe cleaners or a suitable brush.
3. Clean the keyway and threads.

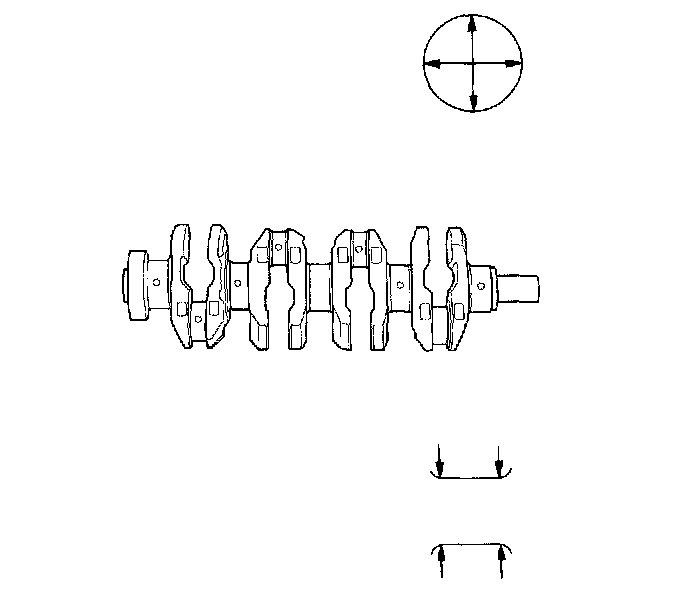

4. Measure out-of round at the middle of each rod and main journal in two places. The difference between measurements on each journal must not be more than the service limit.
Journal Out-of-Round
Standard (New): 0.005 mm (0.0002 inch) maximum
Service Limit: 0.010 mm (0.0004 inch)
5. Measure taper at the edges of each rod and main journal. The difference between measurements on each journal must not be more than the service limit.
Journal Taper
Standard (New): 0.005 mm (0.0002 inch) maximum
Service Limit: 0.010 mm (0.0004 inch)
Straightness

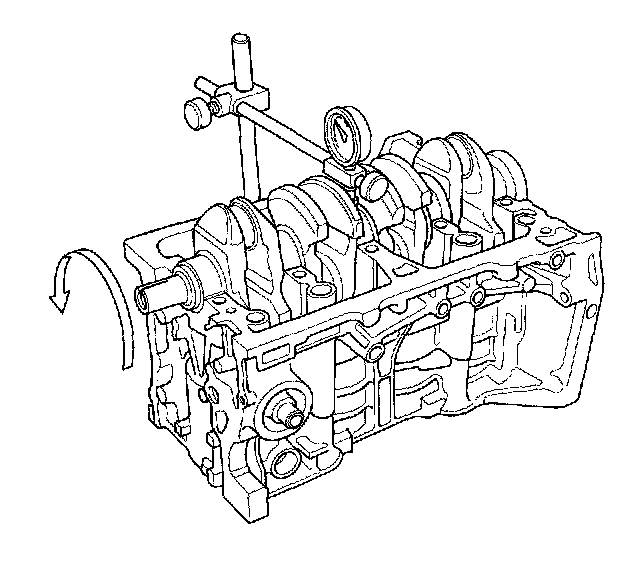

6. Place the cylinder block on the surface plate.
7. Clean and install the bearings on the No. 1 and No. 5 journals of the cylinder block.
8. Lower the crankshaft into the block.
9. Measure runout on all main journals. Rotate the crankshaft two complete revolutions. The difference between measurements on each journal must not be more than the service limit.
Crankshaft Total Runout
Standard (New): 0.03 mm (0.0012 inch) maximum
Service Limit: 0.04 mm (0.0016 inch)
