Connecting Rod Bolt Inspection

Connecting Rod Bolt Inspection

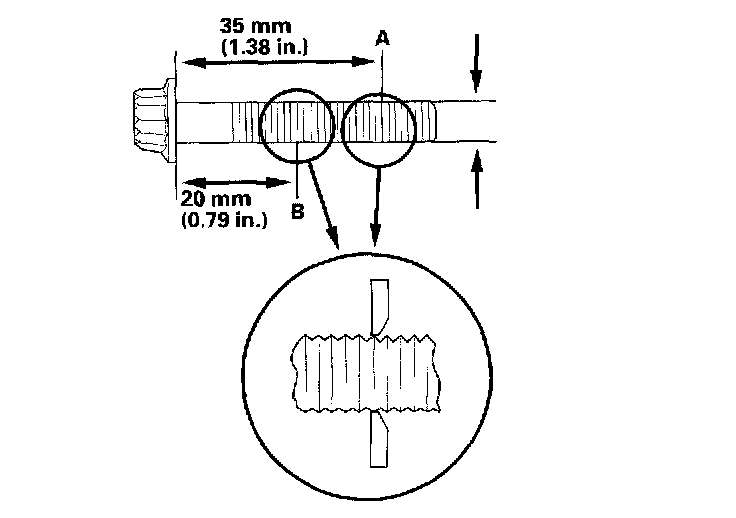

1. Measure the diameter of each connecting rod bolt at point A and point B.
2. Calculate the difference in diameter between point A and point B.
Point A - Point B = Difference in Diameter
Difference in Diameter:
Specification: 0 - 0.1 mm (0 - 0.004 inch)
3. If the difference in diameter is out of tolerance, replace the connecting rod bolt.
