Harmonic Balancer - Crankshaft Pulley: Service and Repair
Crankshaft Pulley Removal and InstallationSpecial Tools Required
^ Holder handle 07JAB-001020A
^ Holder attachment, 50 mm 07NAB-001040A
^ Socket, 19 mm 07JAA-001020A or a commercially available 19 mm socket
Removal
1. Remove the front tires/wheels.
2. Remove the splash shield.
3. Hold the pulley with holder handle (A) and holder attachment (B).
4. Remove the bolt with a 19 mm socket (C) and breaker bar.
Installation

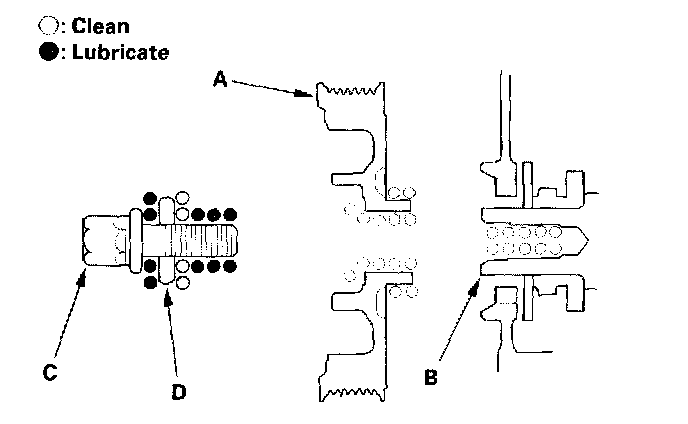

1. Clean the crankshaft pulley (A), crankshaft (B), bolt (C), and washer (D). Lubricate as shown.
2. Install the crankshaft pulley, and hold the pulley with holder handle (A) and holder attachment (B).
3. Tighten the bolt to 49 Nm (5.0 kgf-m, 36 ft. lbs.) with a torque wrench and 19 mm socket (C). Do not use an impact wrench.
4. Tighten the pulley bolt an additional 90°.
5. Install the splash shield.
6. Install the front tires/wheels.
