Home >> Acura >> 2004 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Mechanical Diagrams >> Variable Valve Timing Actuator

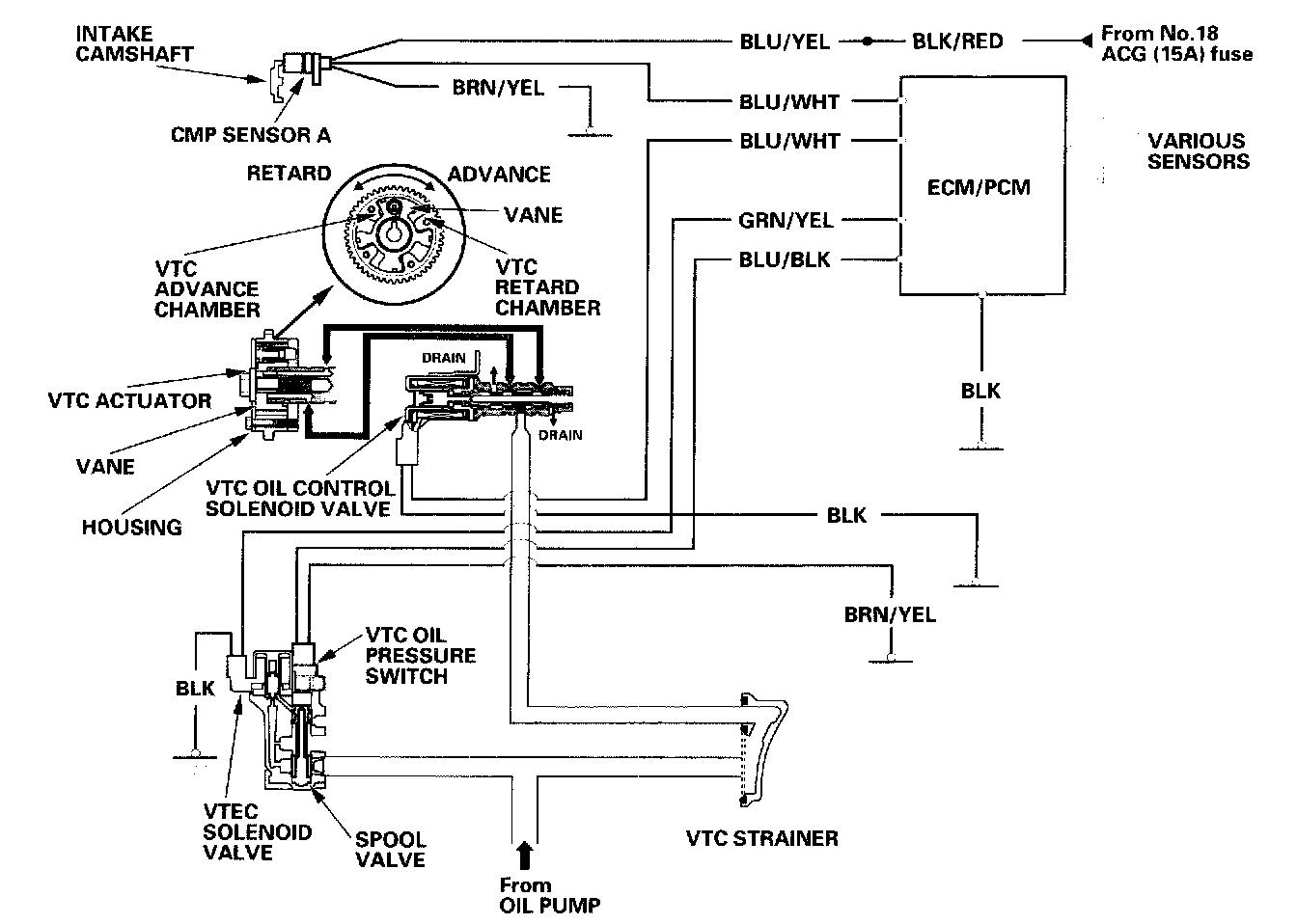

Variable Valve Timing Actuator
