Wiring Diagrams

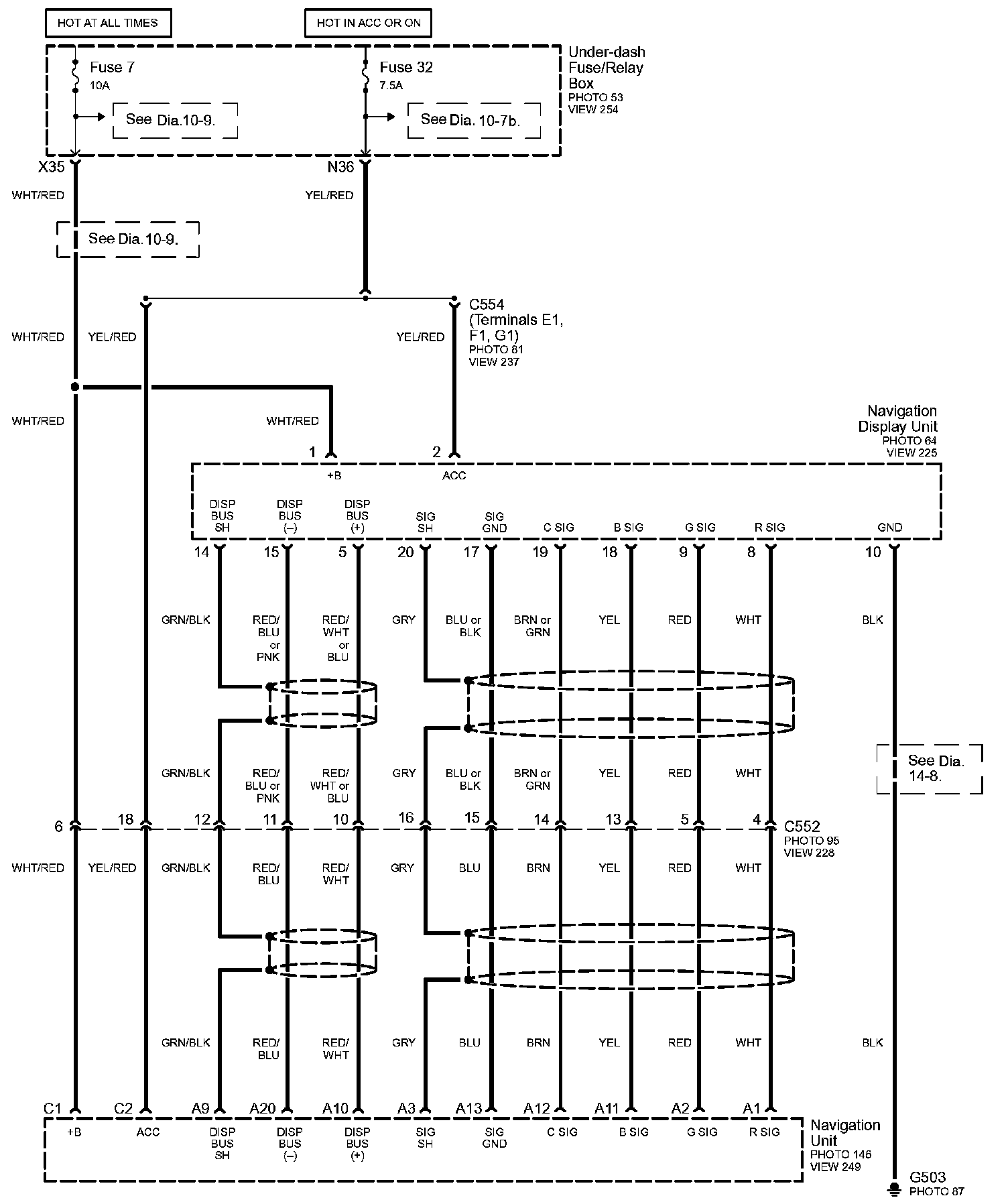

Diagram 156-0:

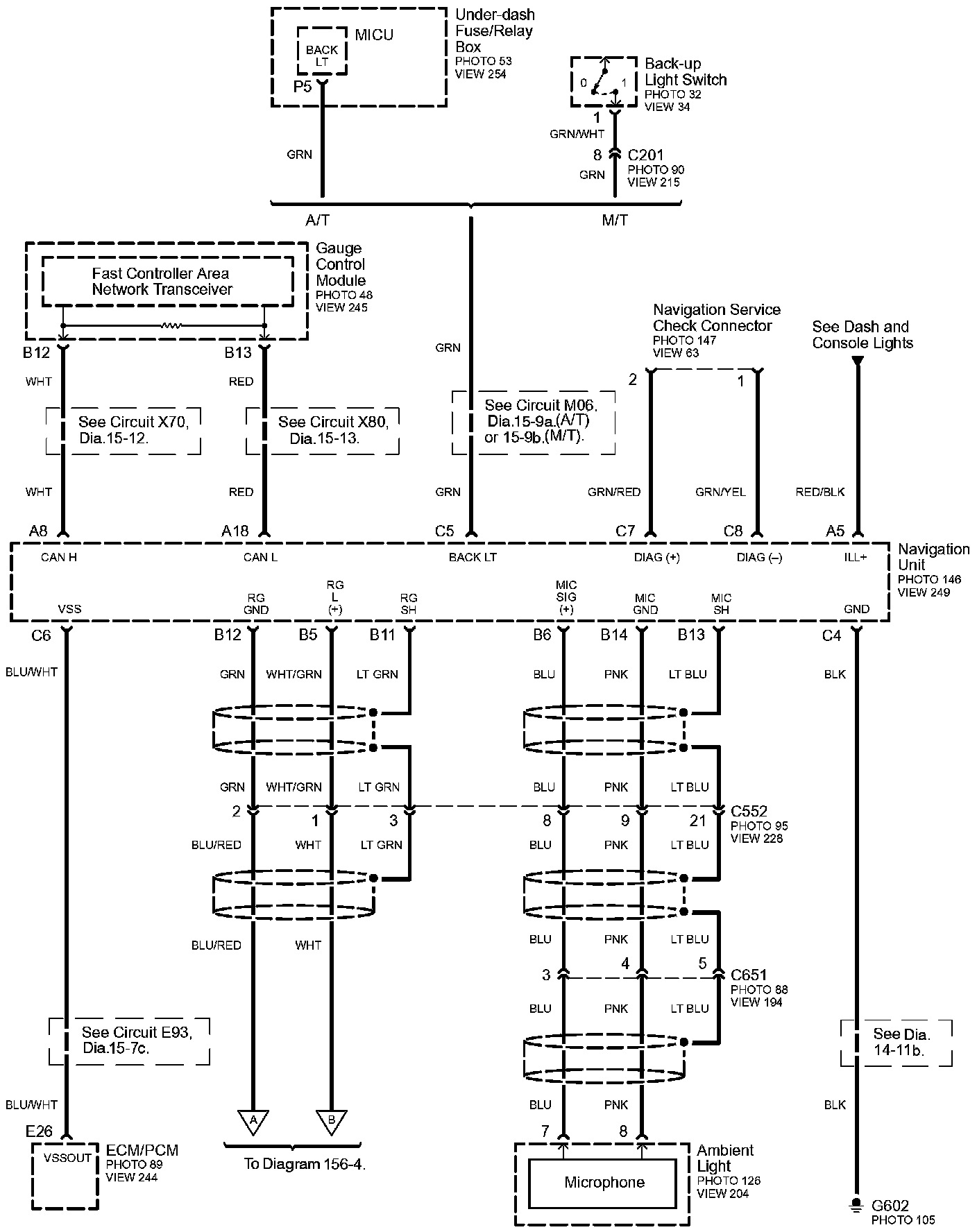

Diagram 156-1:

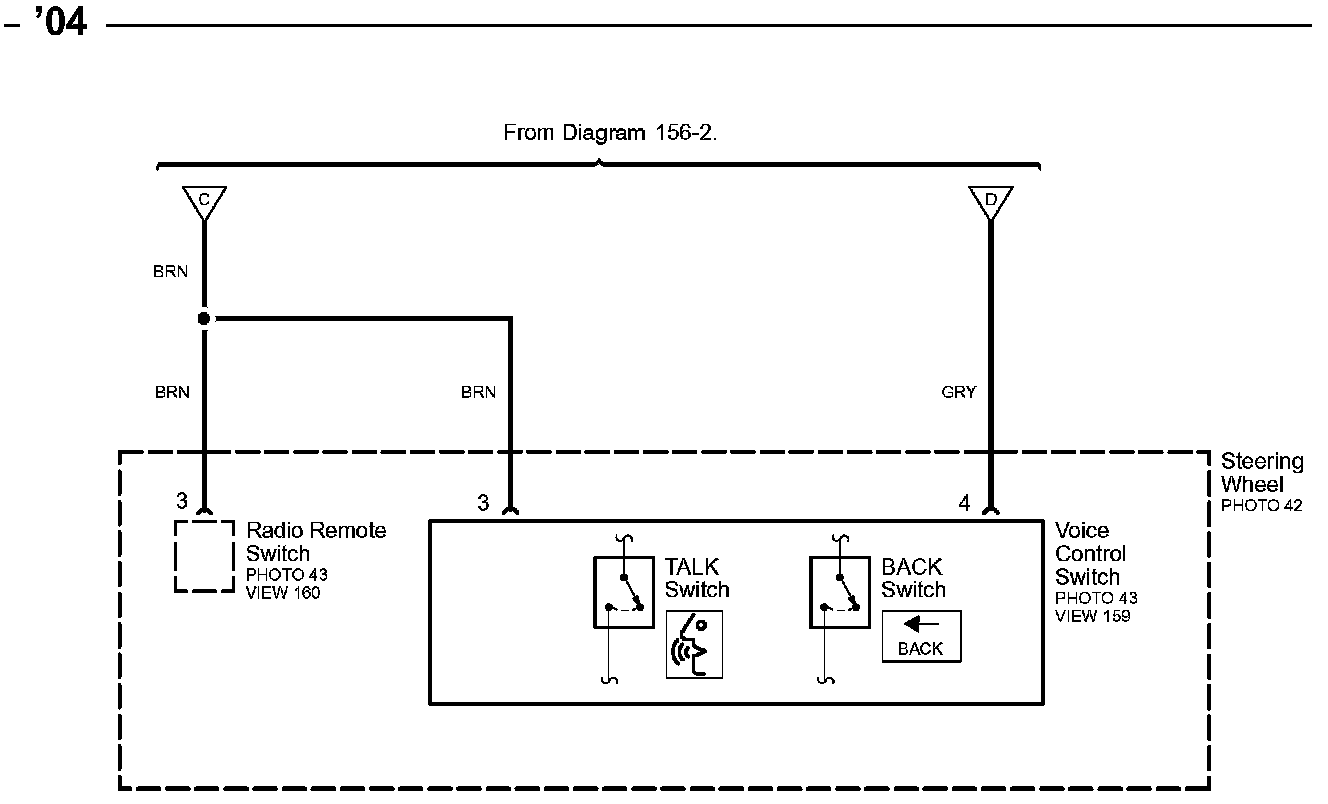

Diagram 156-2:

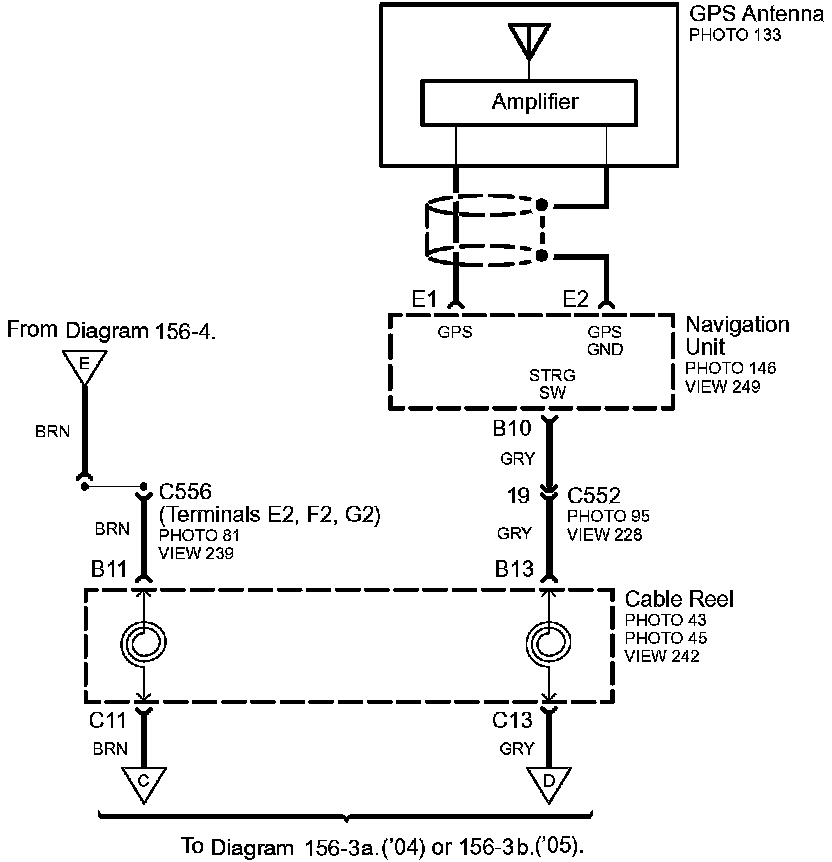

Diagram 156-3a:

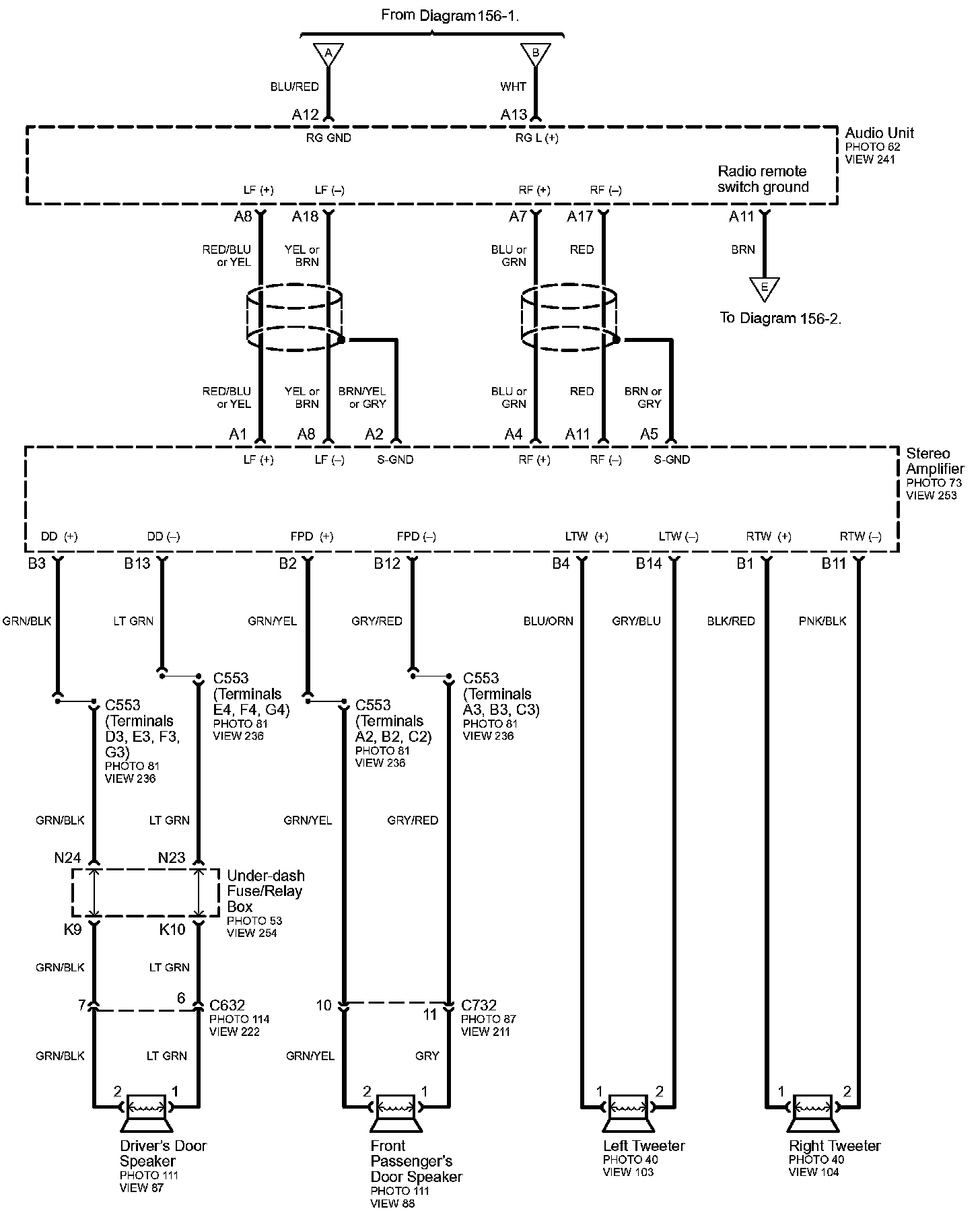

Diagram 156-4:

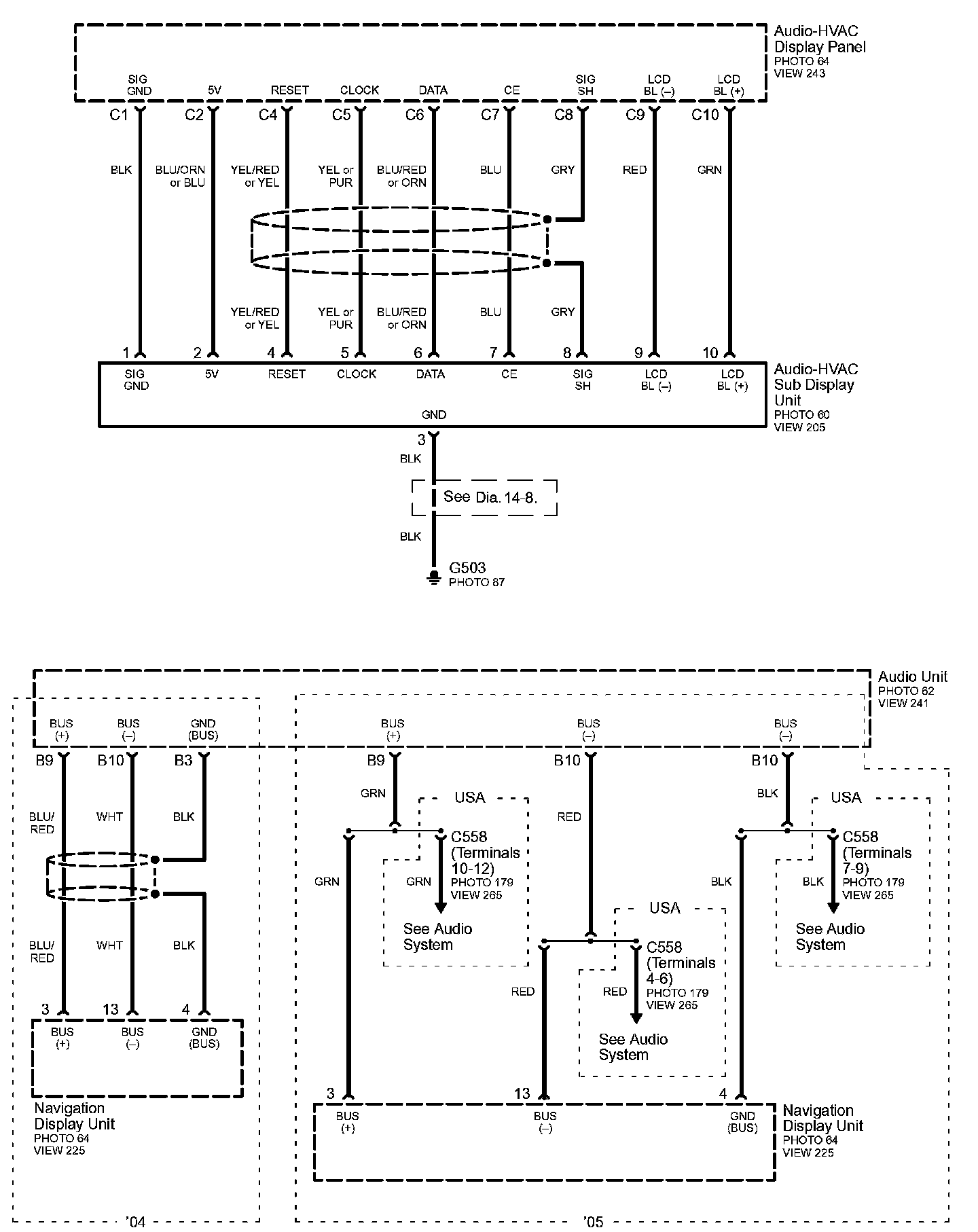

Diagram 156-5:
