Circuit Diagrams

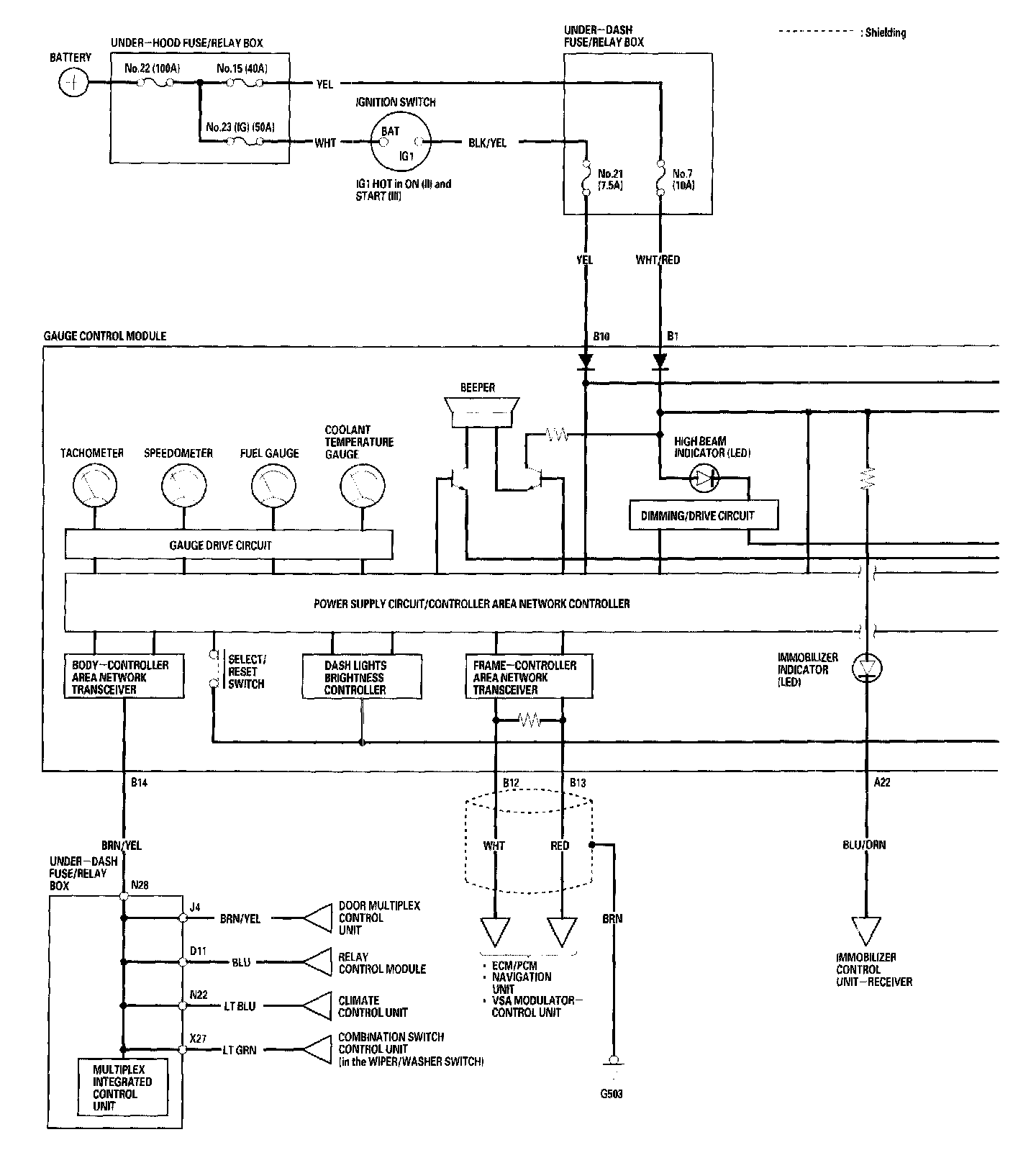

Gauges - Circuit Diagram Part 1:

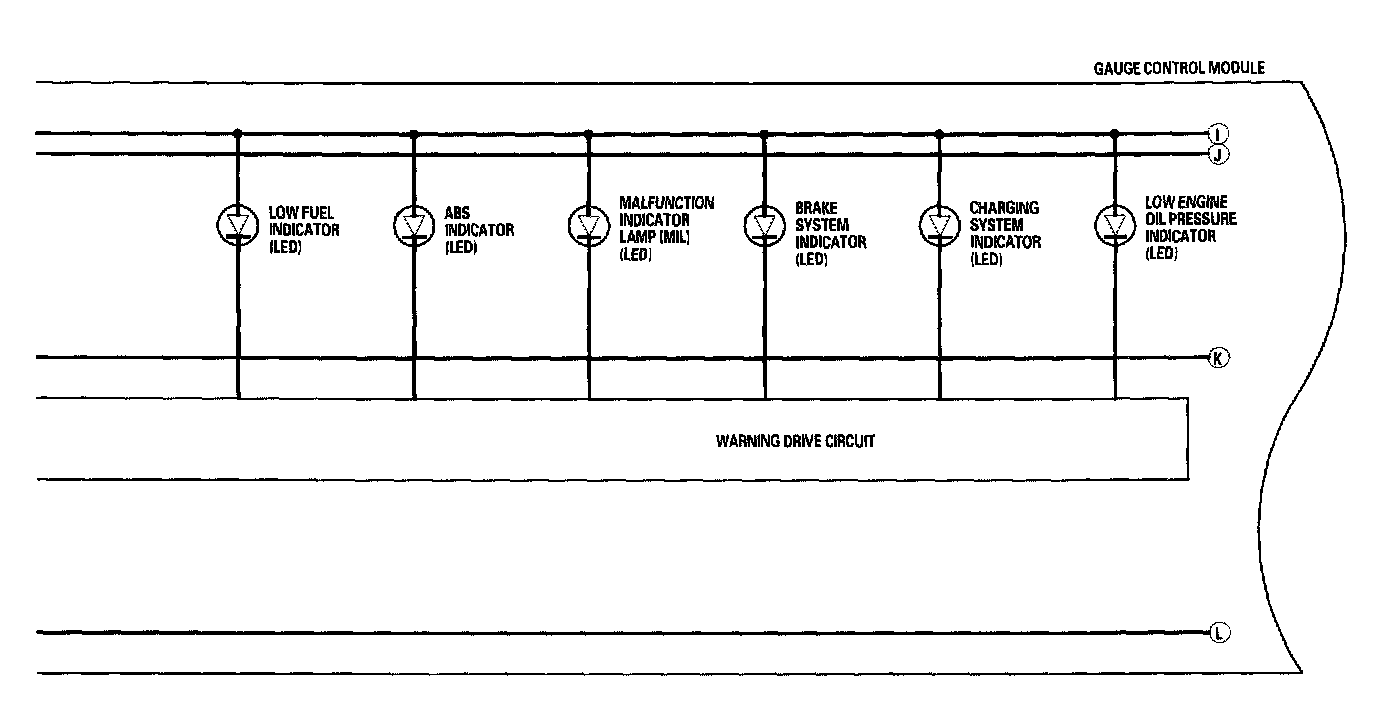

Gauges - Circuit Diagram Part 2:

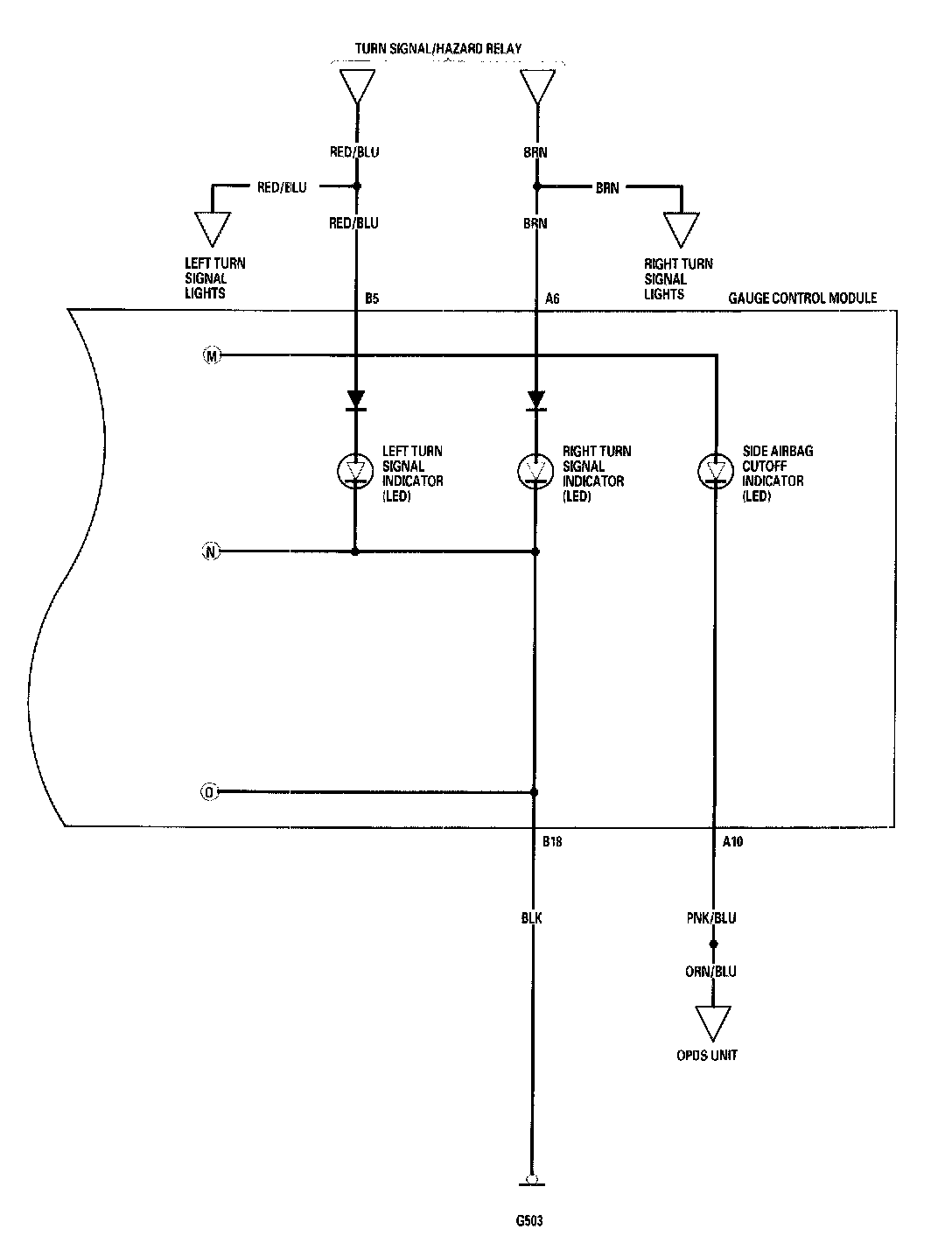

Gauges - Circuit Diagram Part 3:

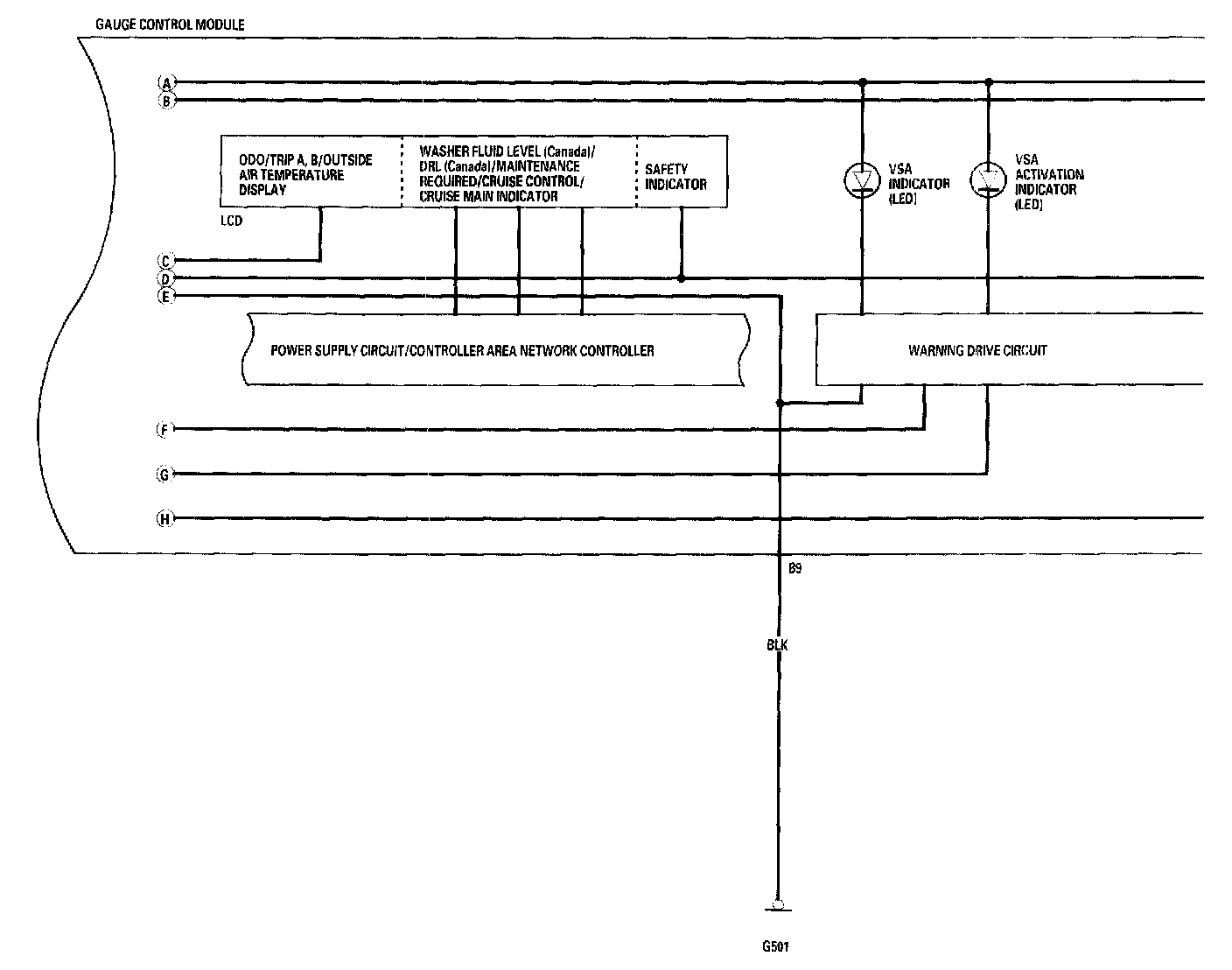

Gauges - Circuit Diagram Part 4:

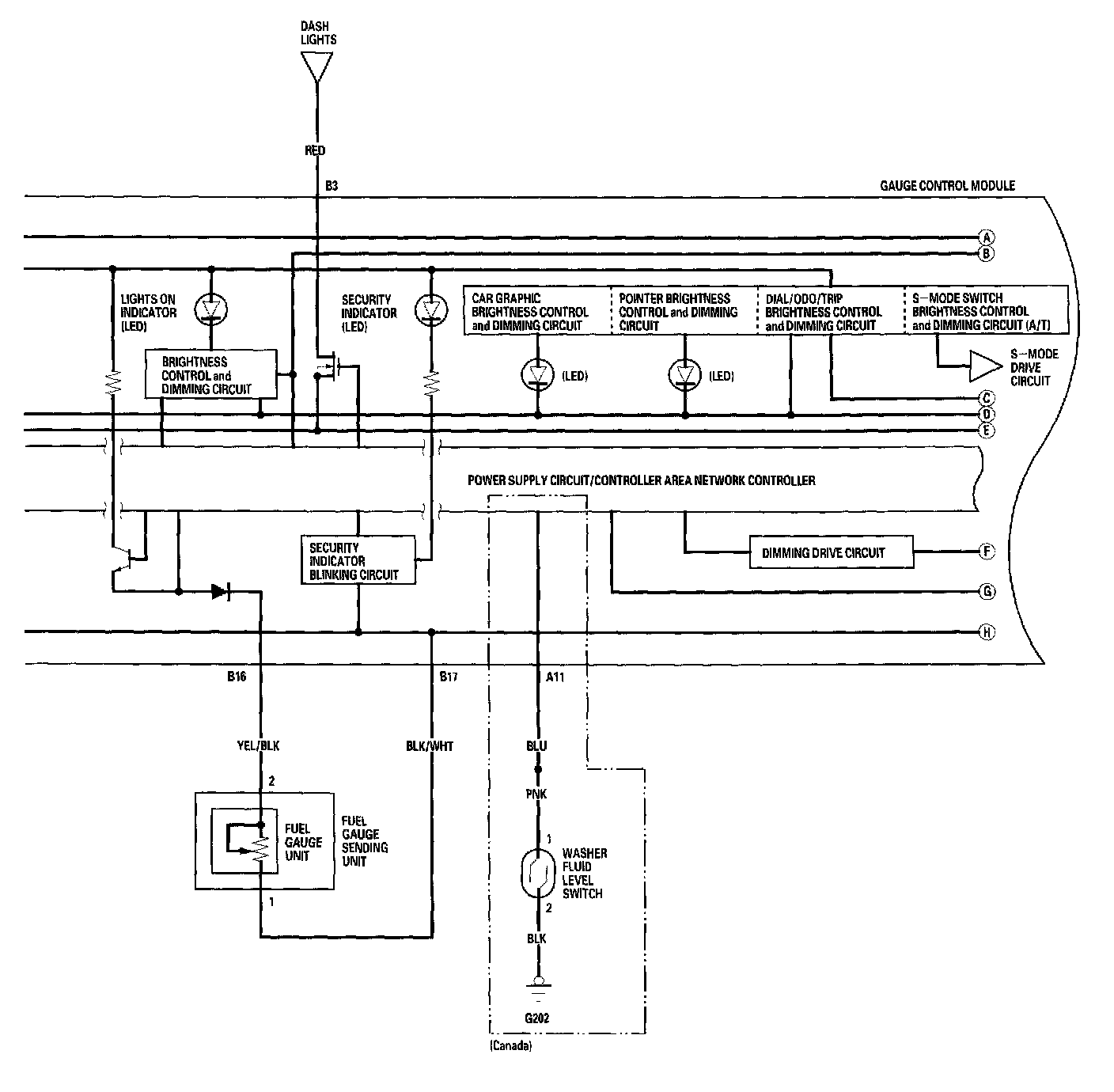

Gauges - Circuit Diagram Part 5:

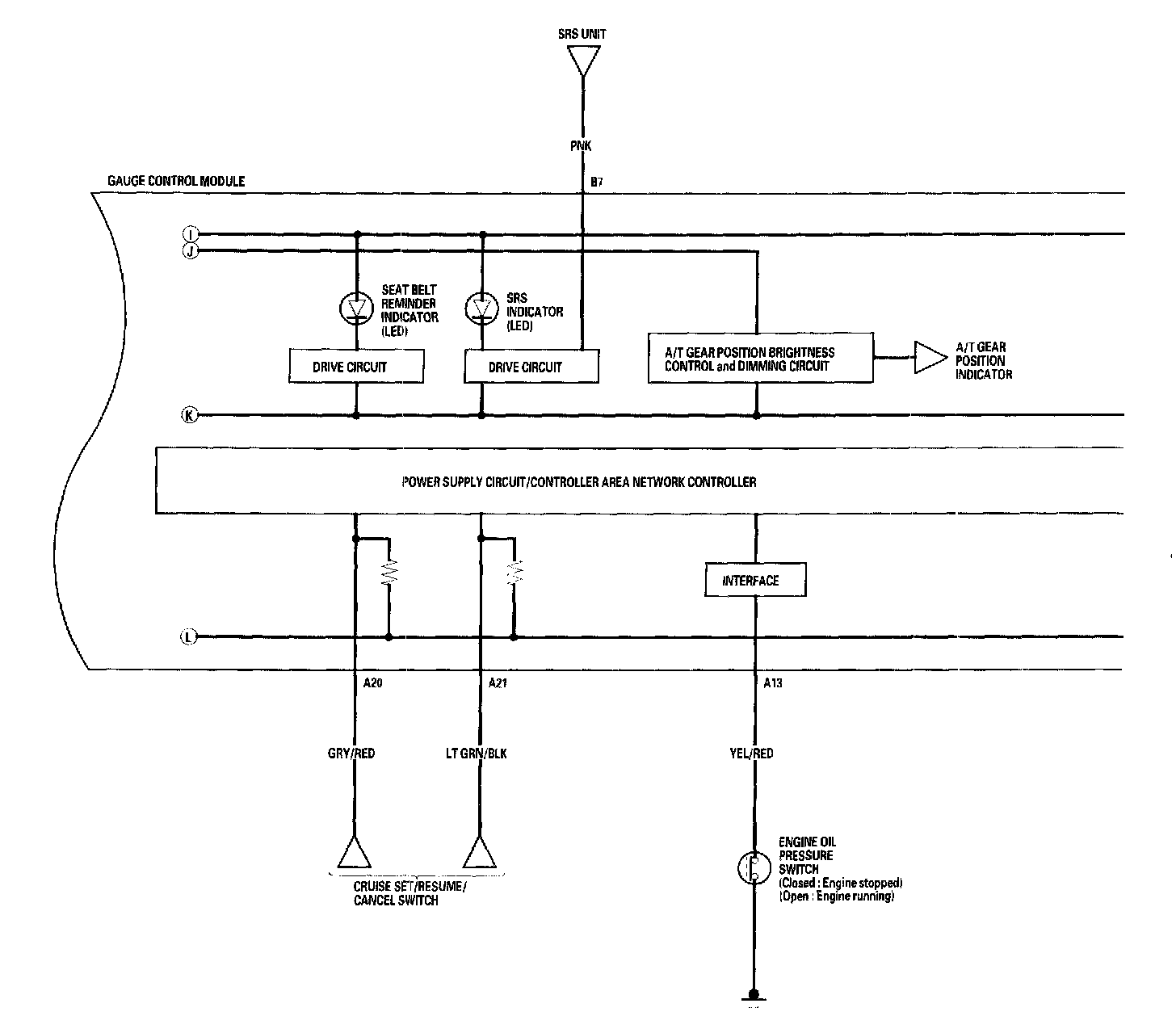

Gauges - Circuit Diagram Part 6:

Gauges - Circuit Diagram Part 7:

Lights-on, Key-in, Seat Belt Reminder, Key Light Timer, And Engine Oil Pressure Indicator Systems - Circuit Diagram:
