Diagram Set 73 (Lights-on, Key-In and Seat Belt Reminders, Key Light Timer, and Low Oil Pressure Indicator
Diagram Set 73 (Lights-on, Key-In and Seat Belt Reminders, Key Light Timer, and Low Oil Pressure Indicator

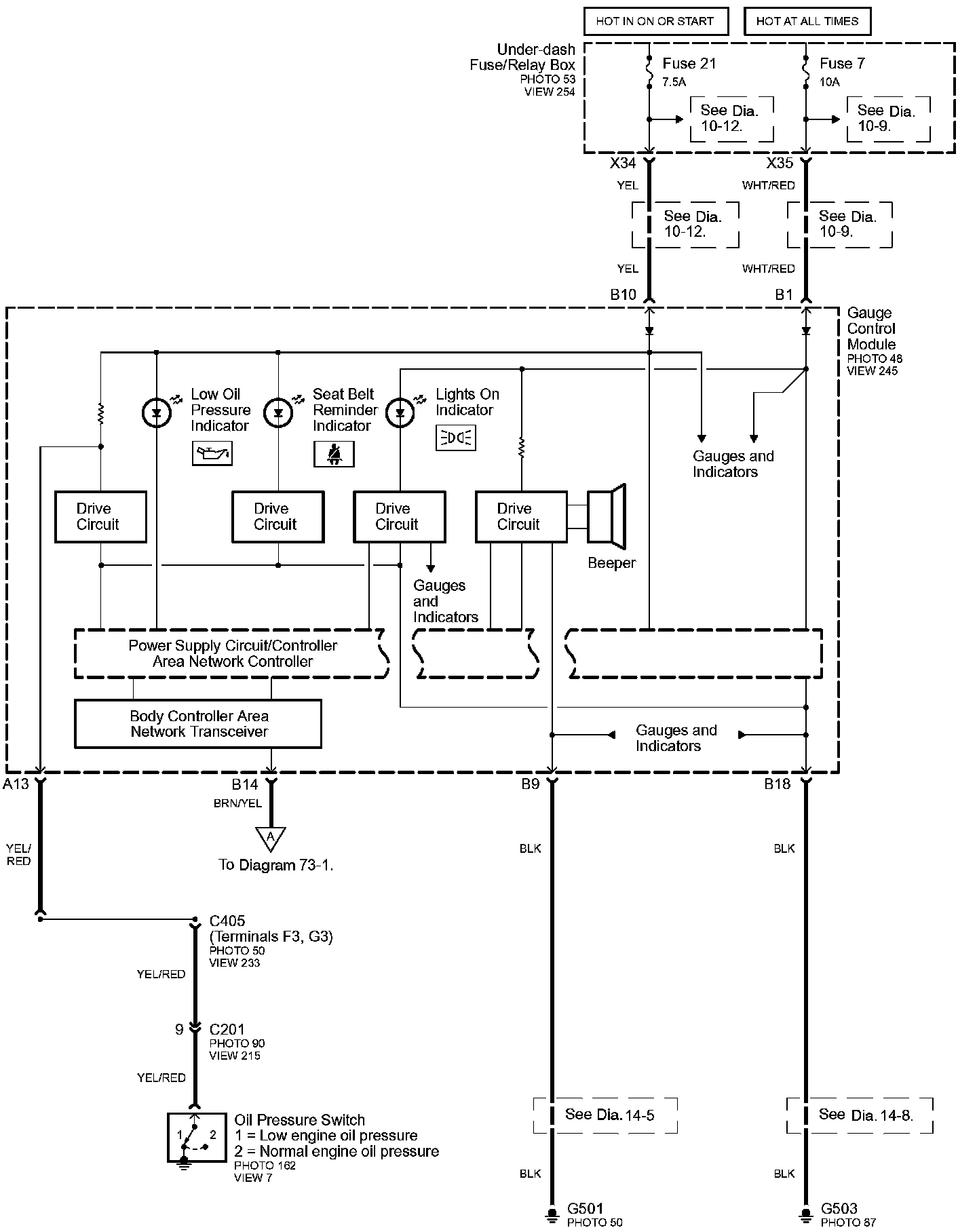

Diagram 73-0:
Diagram 73-1:
