Diagram Set 34 (Cruise Control)
Diagram Set 34 (Cruise Control)

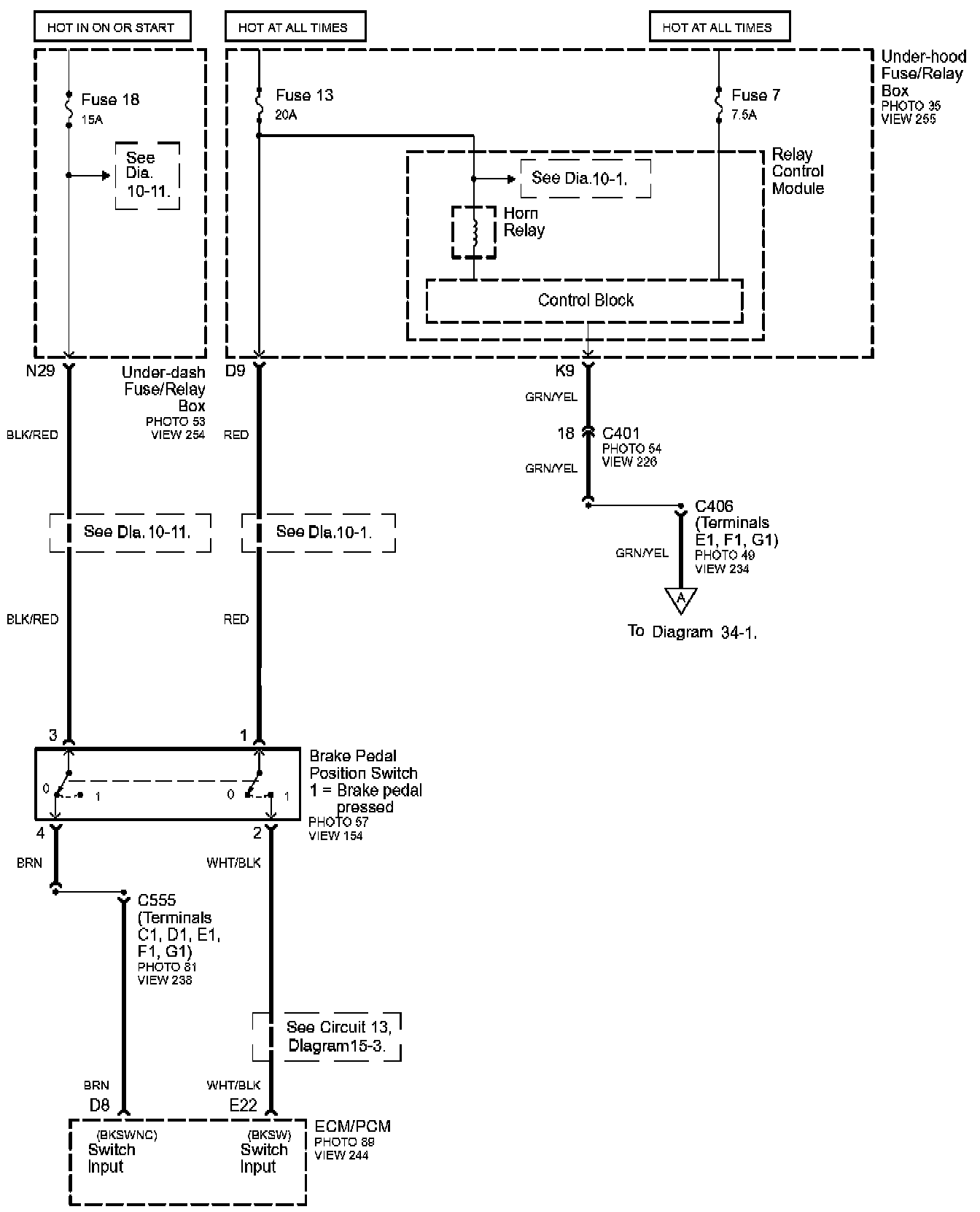

Diagram 34-0:

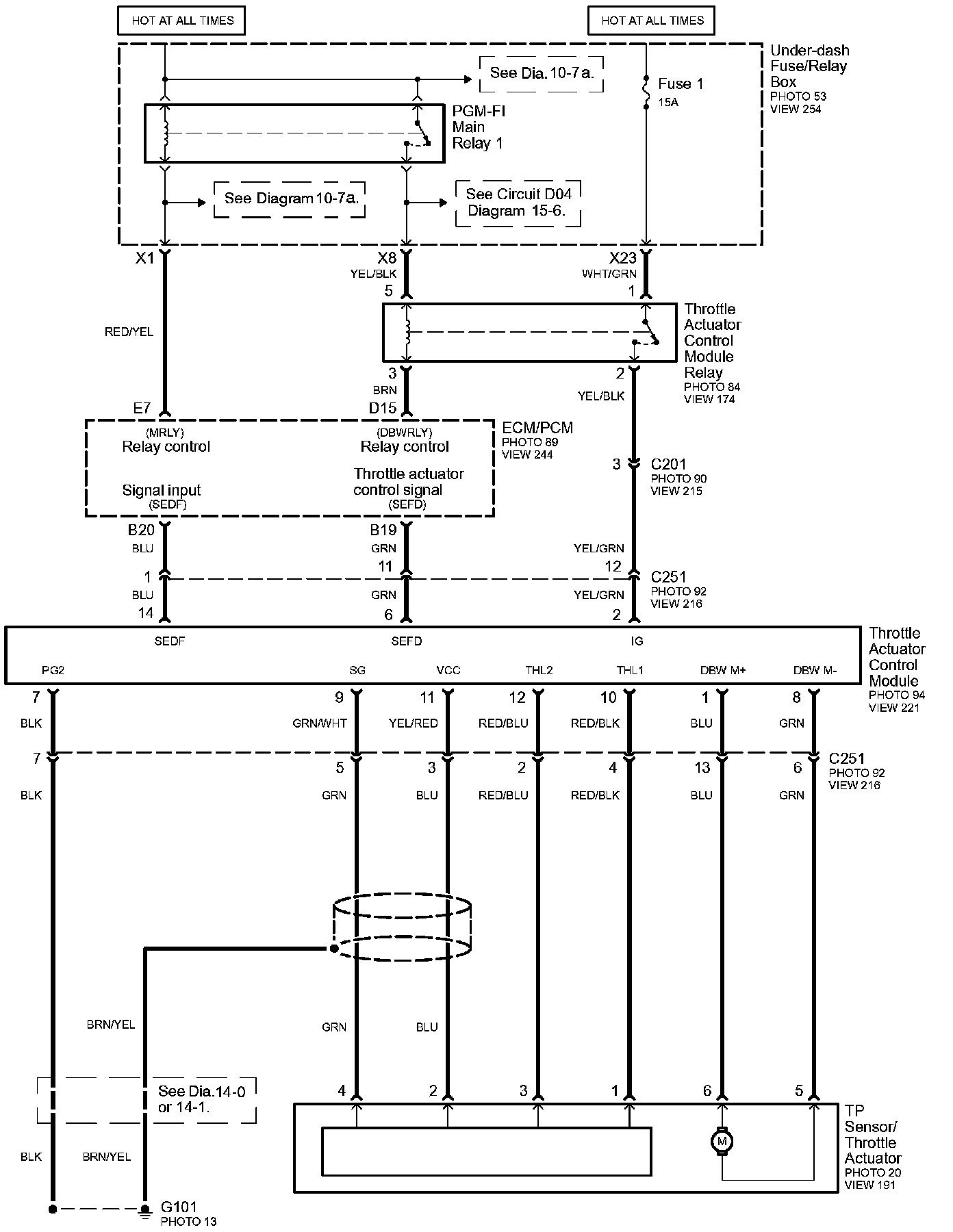

Diagram 34-1:

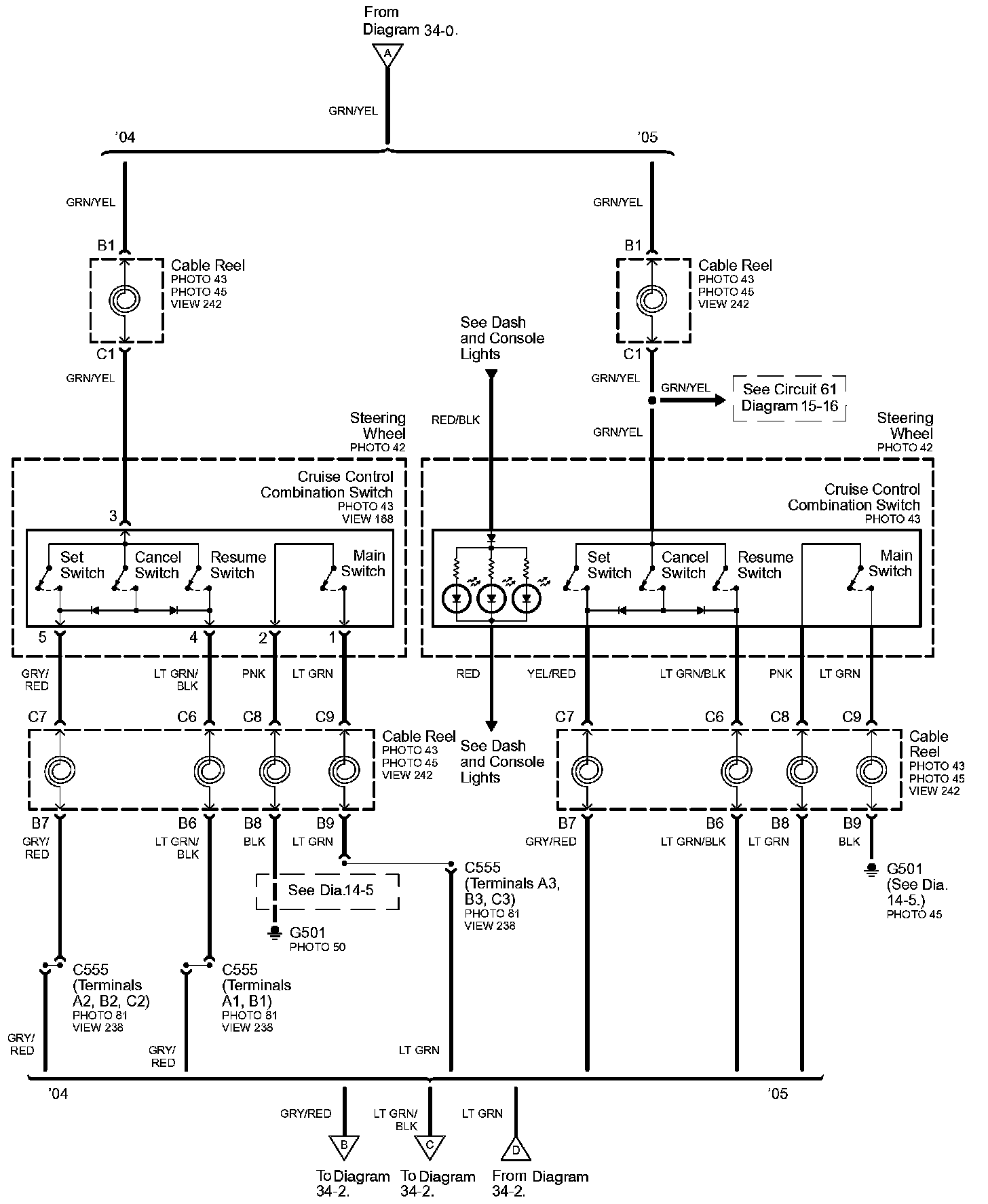

Diagram 34-2:

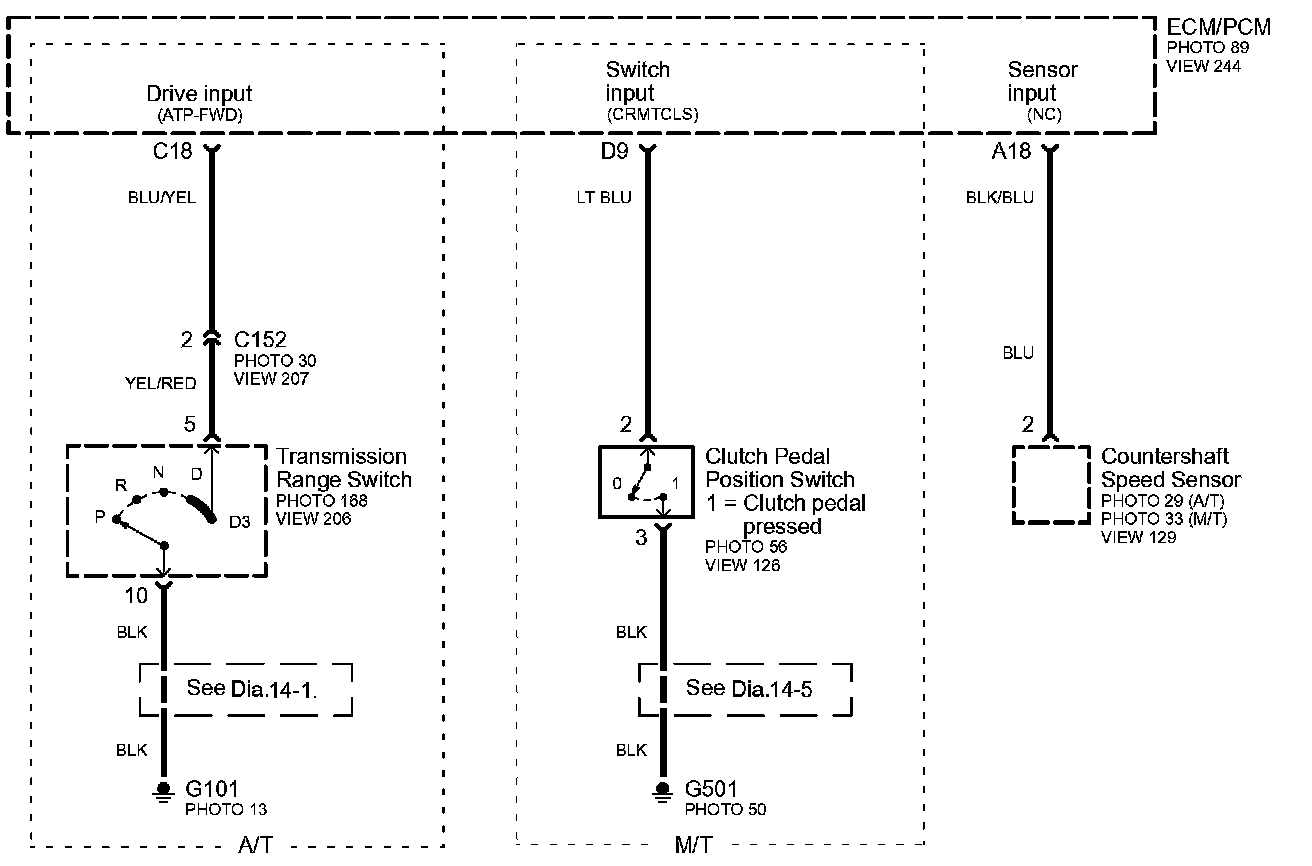

Diagram 34-3:

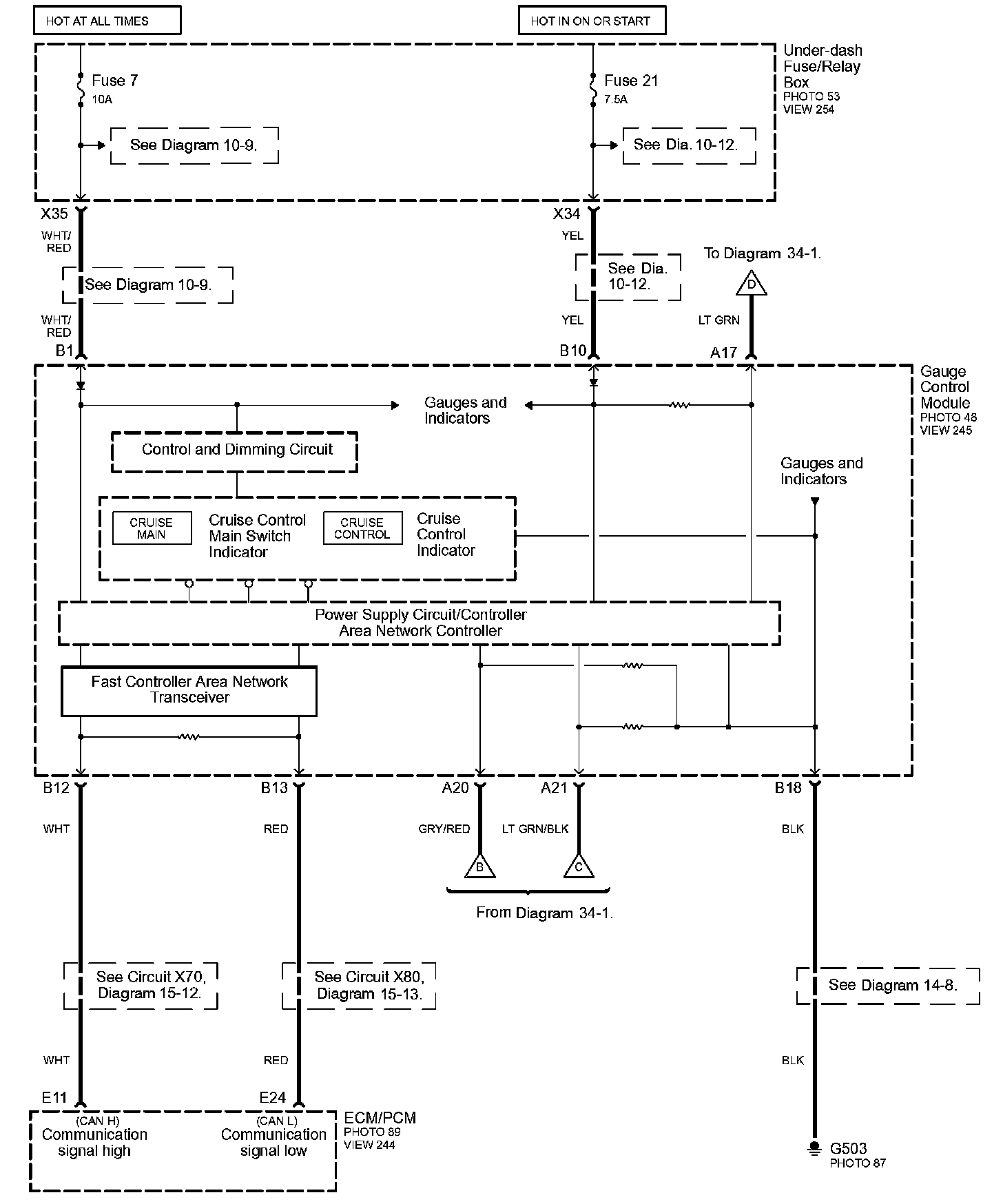

Diagram 34-4:
