Diagram Set 15 (Splice and Junction Connector Details)
Diagram Set 15 (Splice and Junction Connector Details)

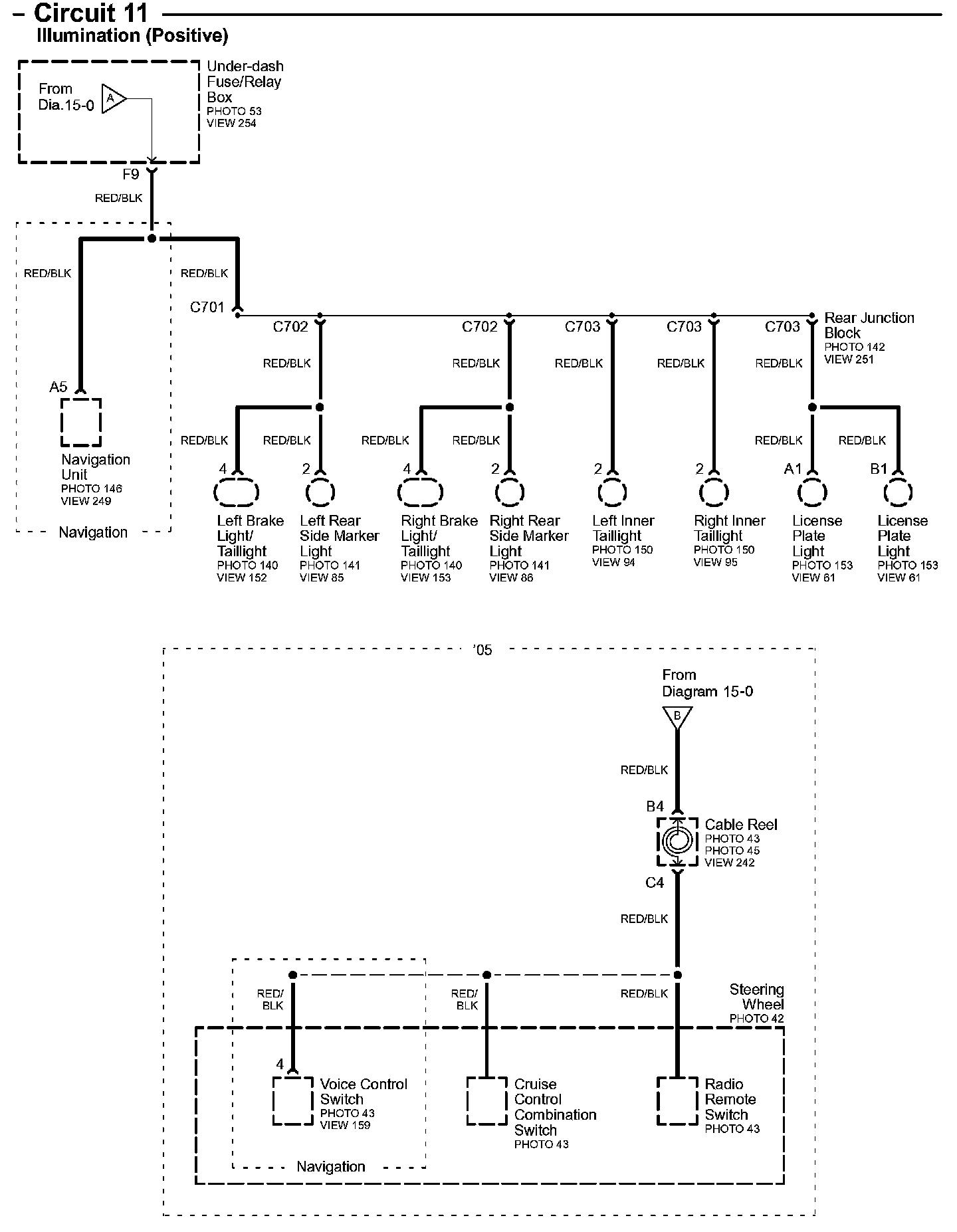

Circuit 11 Illumination (Positive) Part 1:

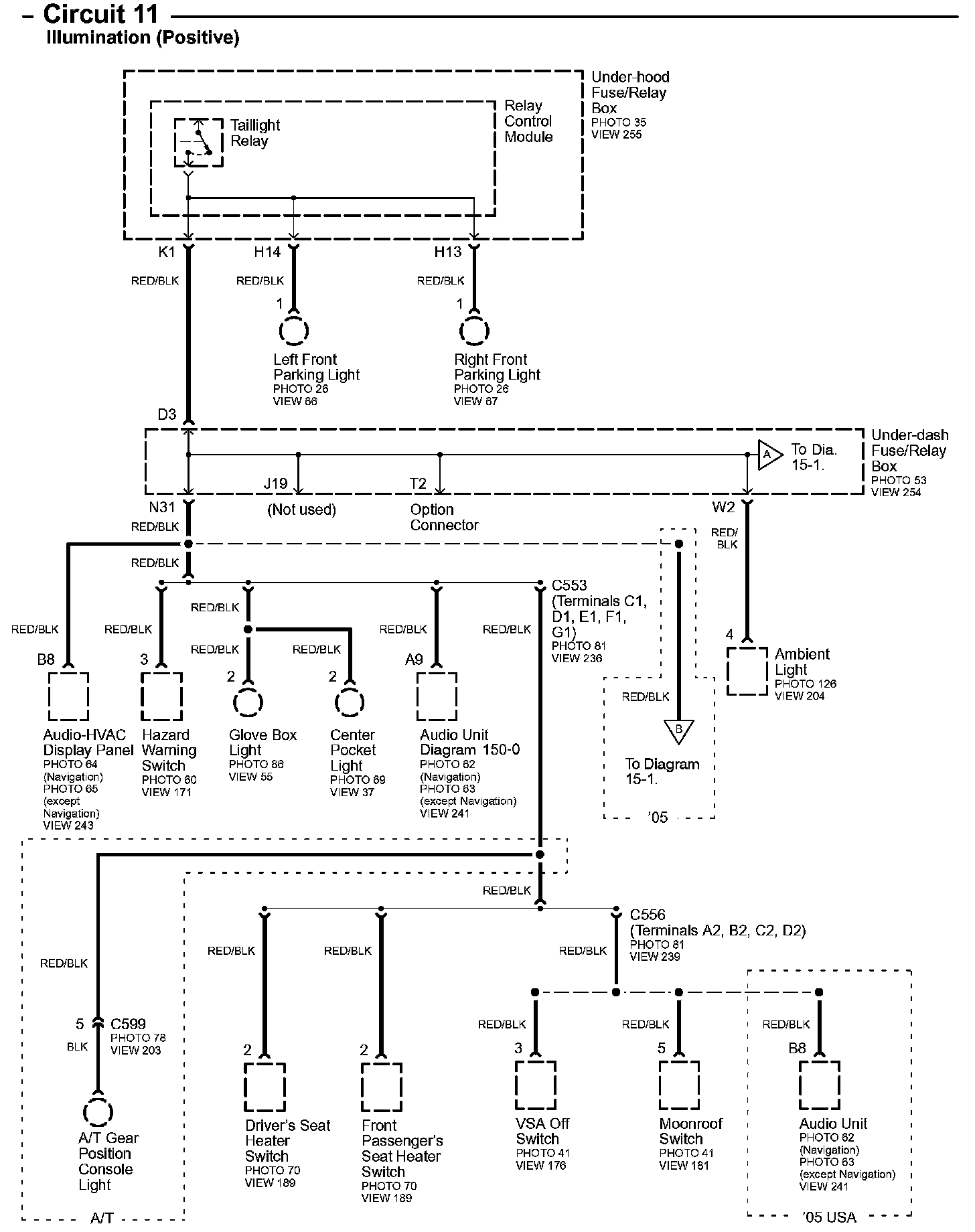

Circuit 11 Illumination (Positive) Part 2:
