Vanity Lamp
Vanity Lamp

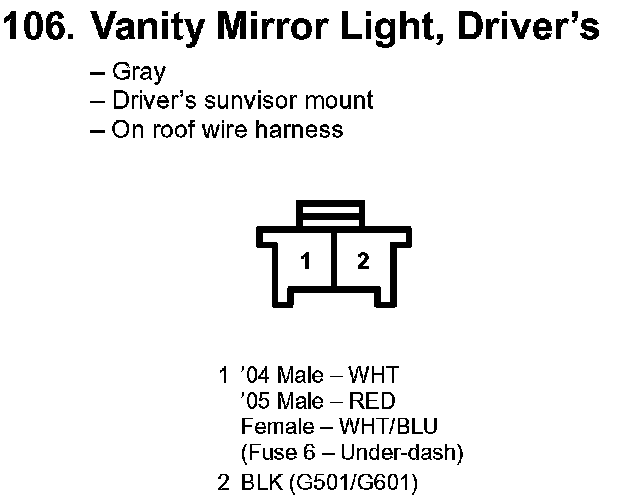

106. Vanity Mirror Light, Driver's:

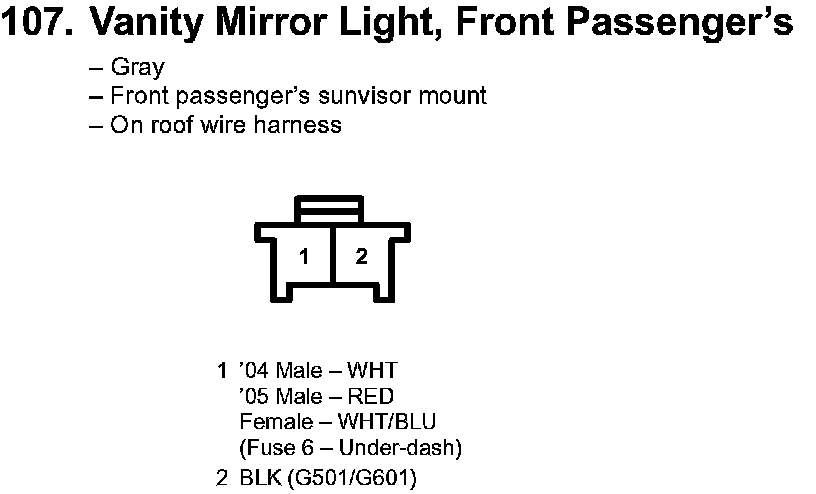

107. Vanity Mirror Light, Front Passenger's:
