Trunk / Liftgate Switch

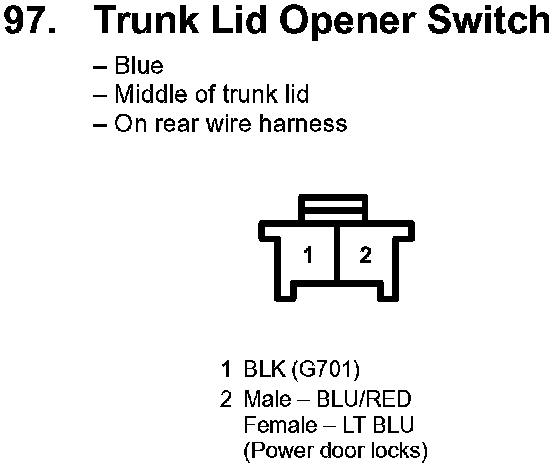

97. Trunk Lid Opener Switch:

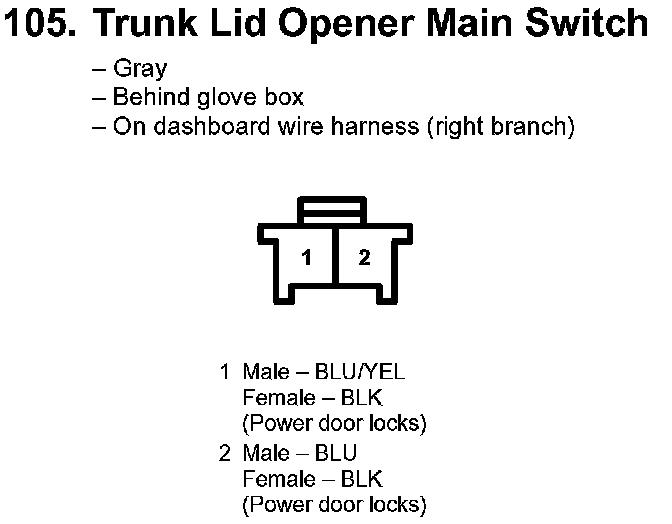

105. Trunk Lid Opener Main Switch:

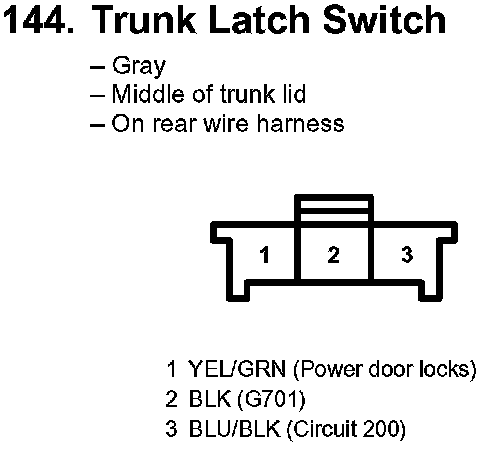

144. Trunk Latch Switch:
