Tail Lamp
Tail Lamp

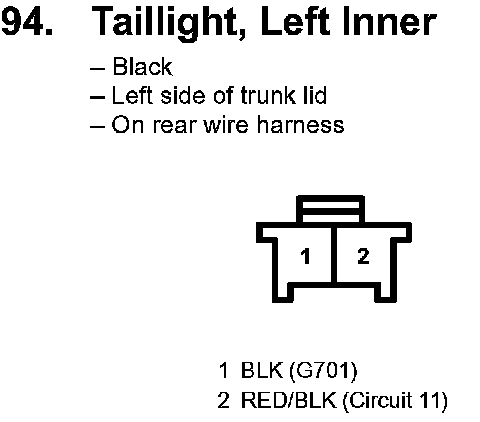

94. Tailight, Left Inner:

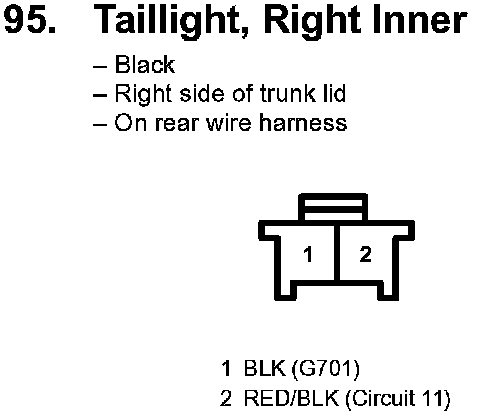

95. Taillight, Right Inner:
152. Brake Light/Taillight, Left:

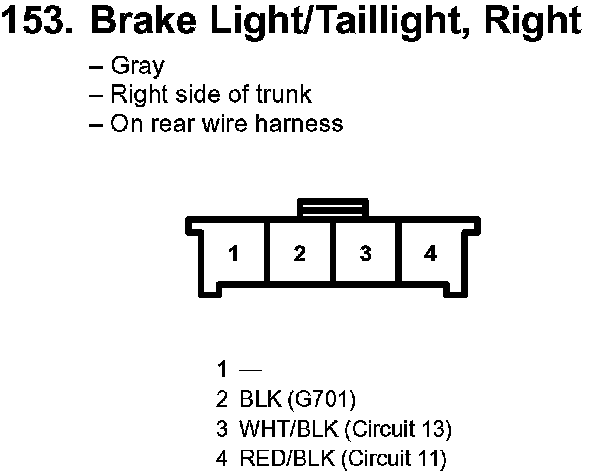

153. Brake Light/Taillight, Right:
