Pressure Regulating Solenoid, A/T

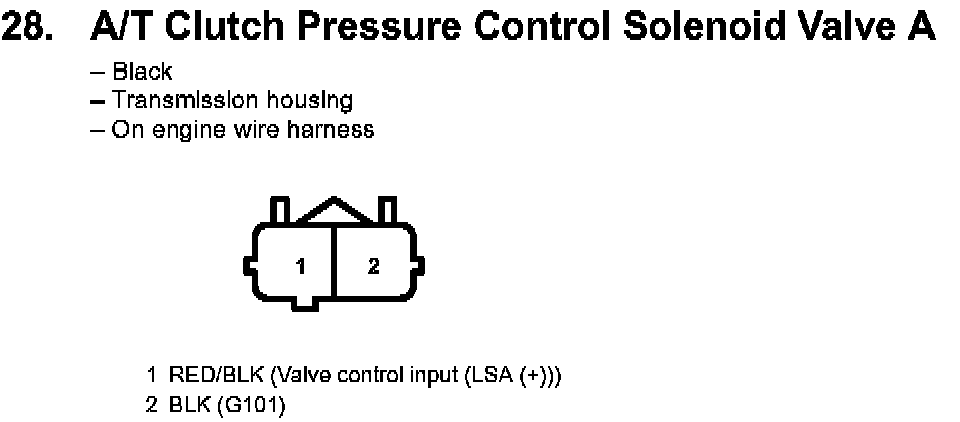

28. A/T Clutch Pressure Control Solenoid Valve A:

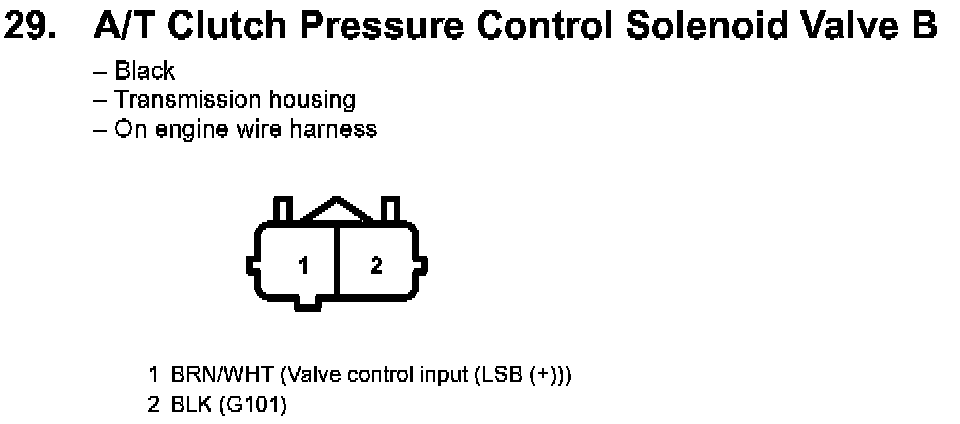

29. A/T Clutch Pressure Control Solenoid Valve B:

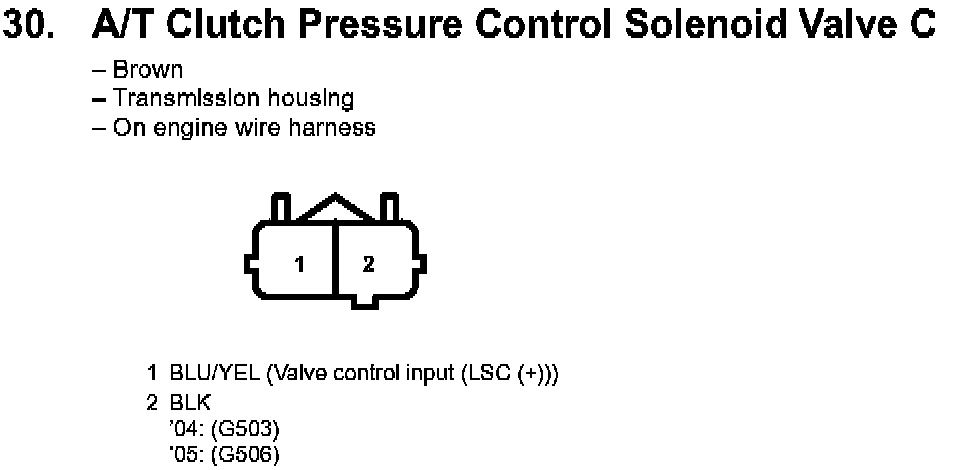

30. A/T Clutch Pressure Control Solenoid Valve C:
