Power Window Switch
Power Window Switch

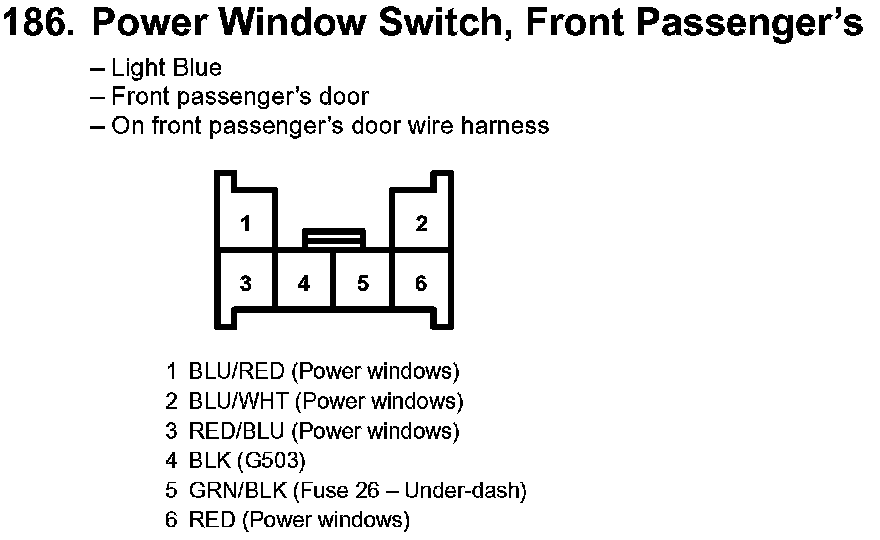

186. Power Window Switch, Front Passenger's:

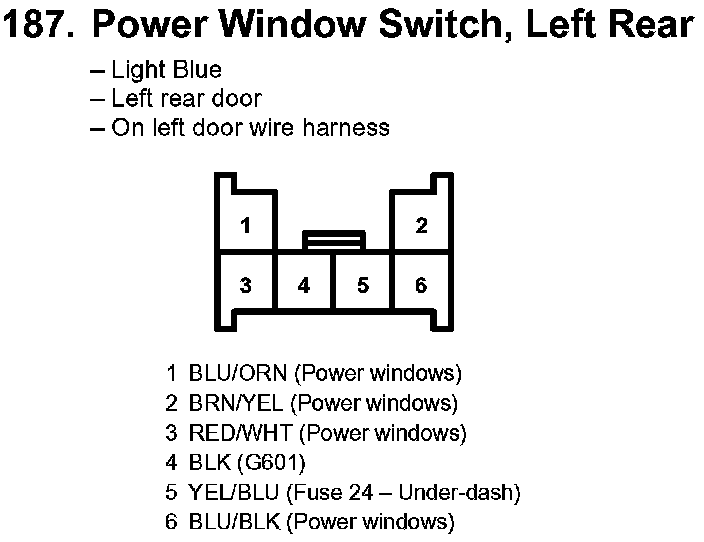

187. Power Window Switch, Left Rear:

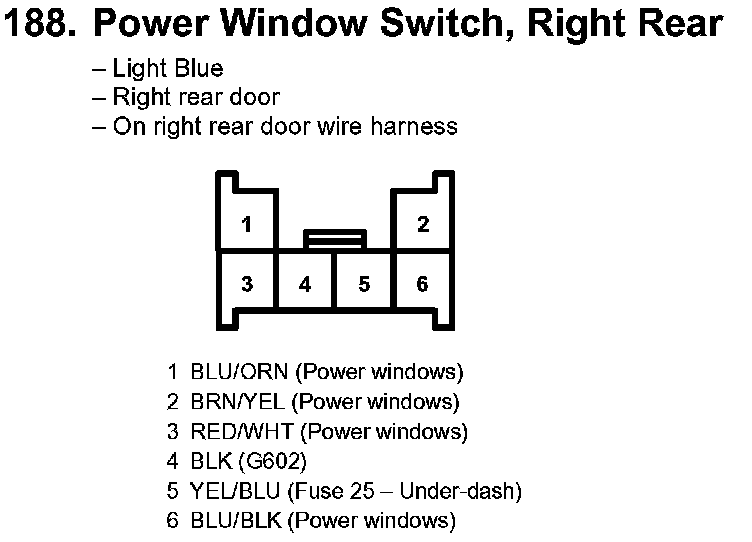

188. Power Window Switch, Right Rear:

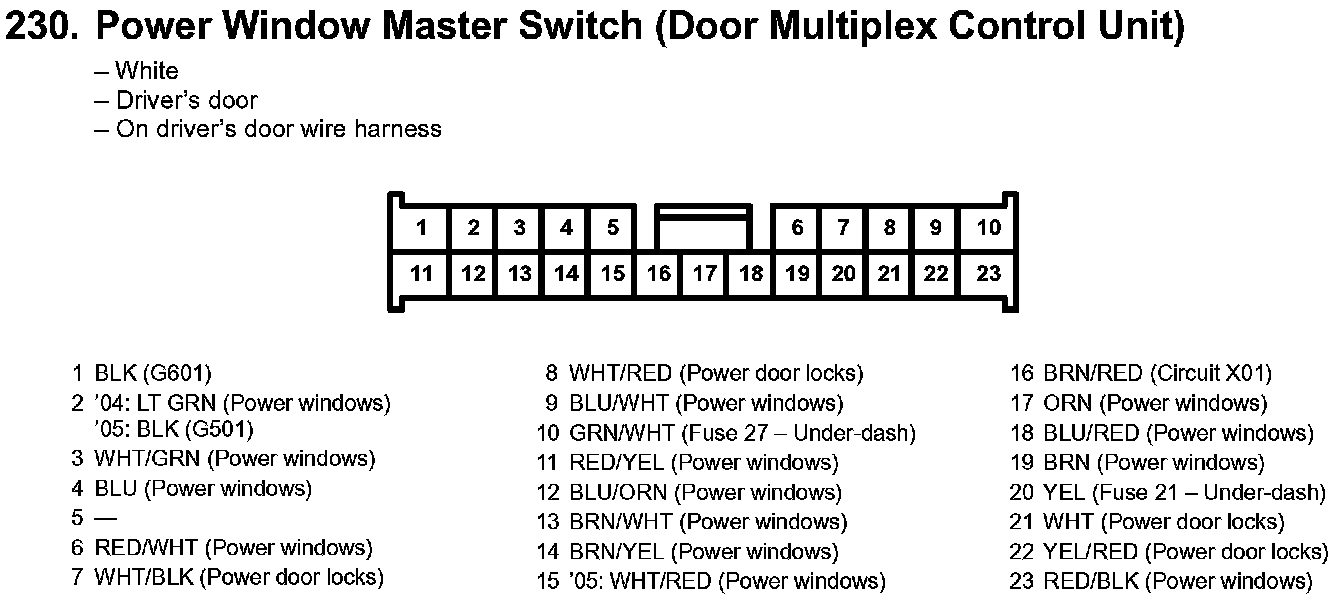

230. Power Window Master Switch (Door Multiplex Control Unit):
