Power Seat Motor
Power Seat Motor
68. Power Seat Front Up-down Motor, Driver's:

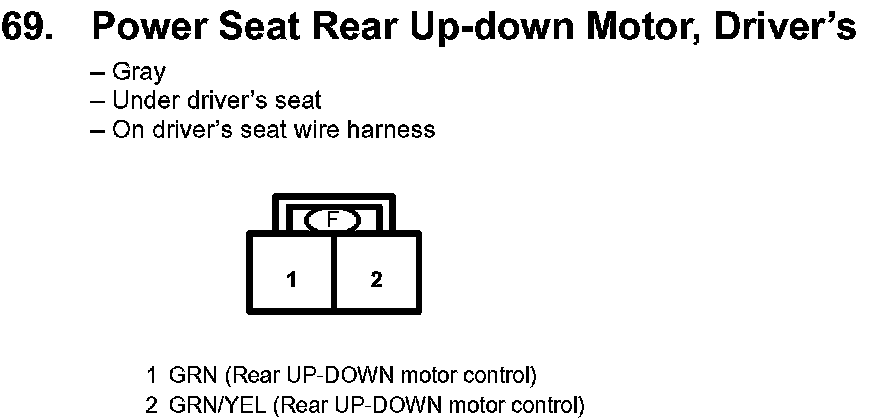

69. Power Seat Rear Up-down Motor, Driver's:
70. Power Seat Slide Motor, Driver's:

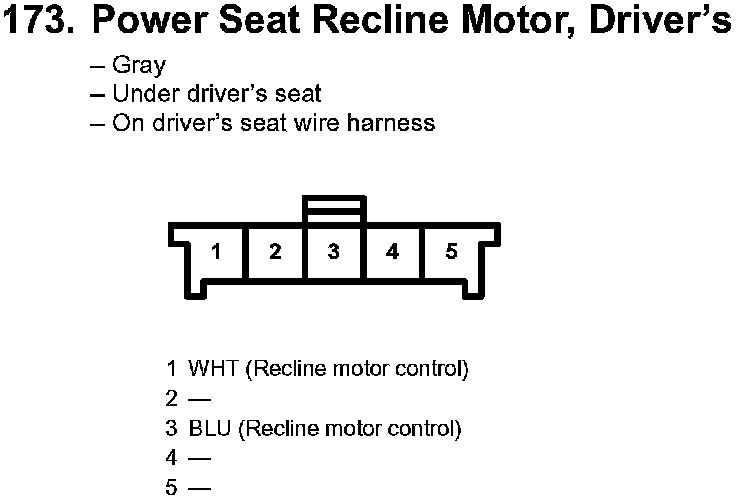

173. Power Seat Recline Motor, Driver's:
