Power Door Lock Switch
Power Door Lock Switch

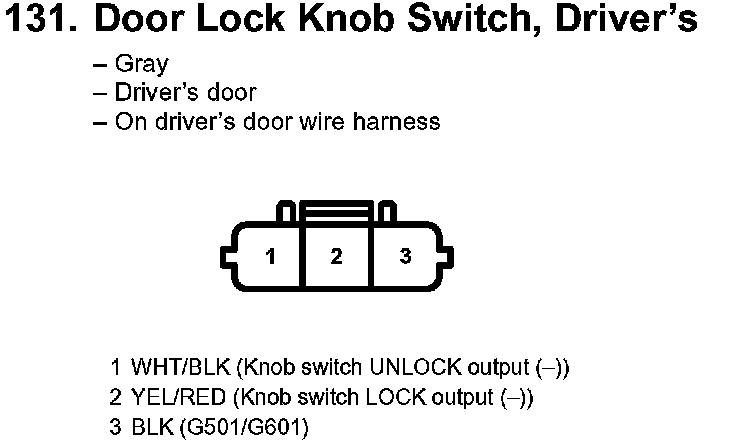

131. Door Lock Knob Switch, Driver's:

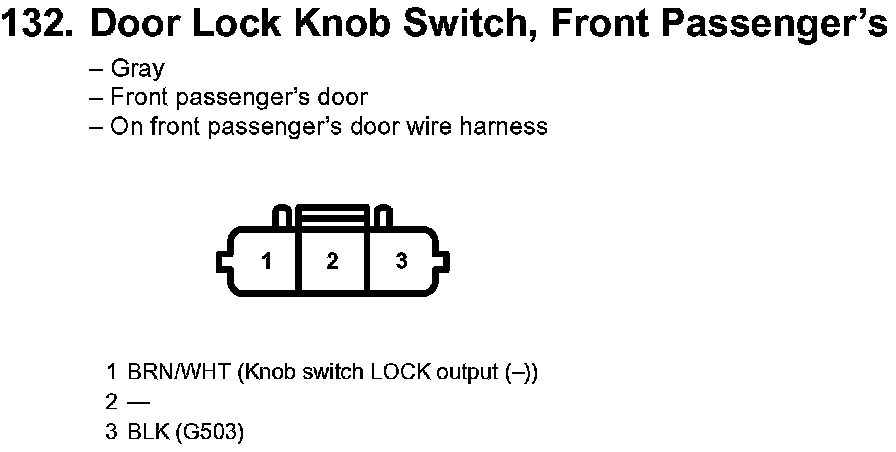

132. Door Lock Knob Switch, Front Passenger's:

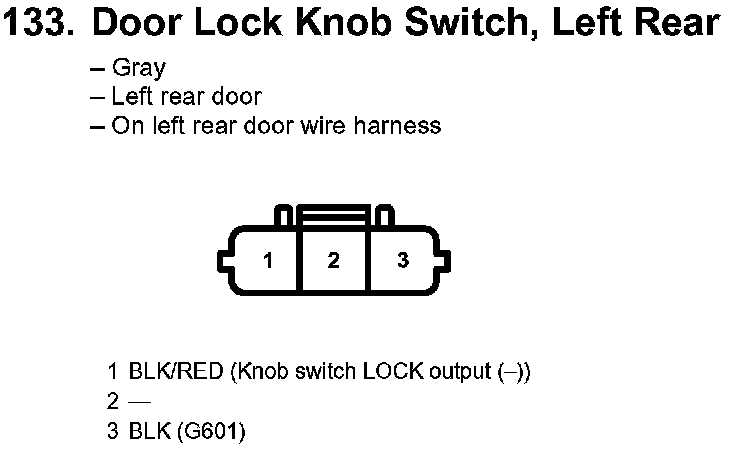

133. Door Lock Knob Switch, Left Rear:

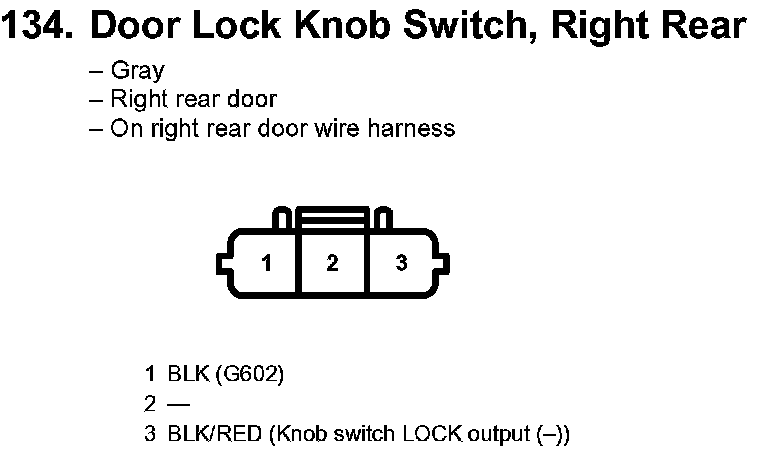

134. Door Lock Knob Switch, Right Rear:

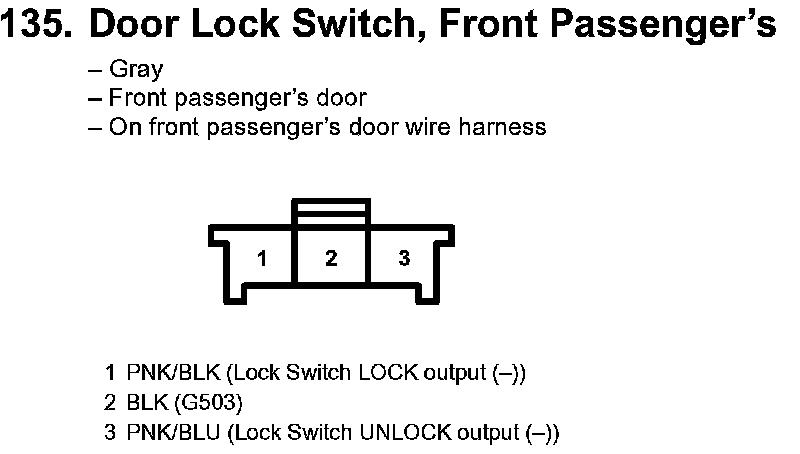

135. Door Lock Switch, Front Passenger's:
