Home >> Acura >> 2004 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 76-100 >> 89

Views 76-100: 89

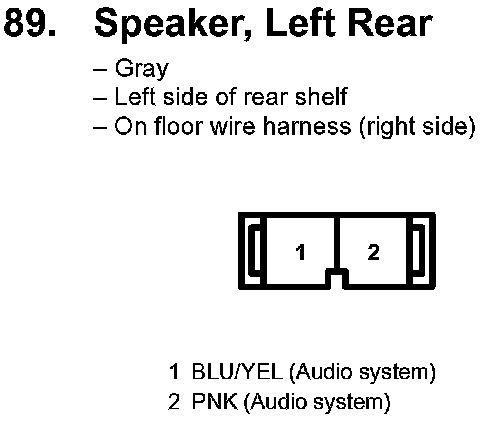

89. Speaker, Left Rear:
