Operation CHARM: Car repair manuals for everyone.

Home >> Acura >> 2004 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 51-75 >> 60

Views 51-75: 60

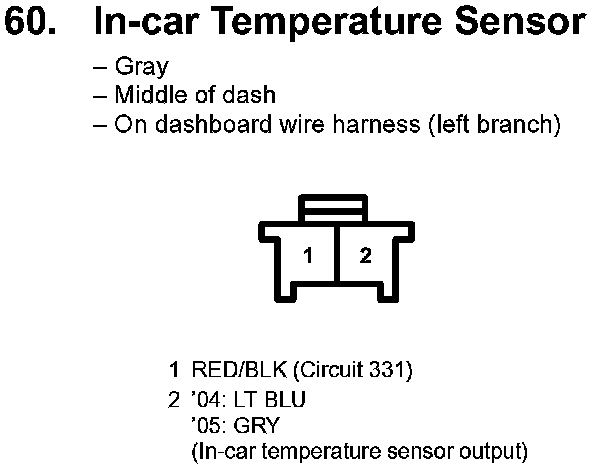

60. In-car Temperature Sensor:
