Home >> Acura >> 2004 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 51-75 >> 53

Views 51-75: 53

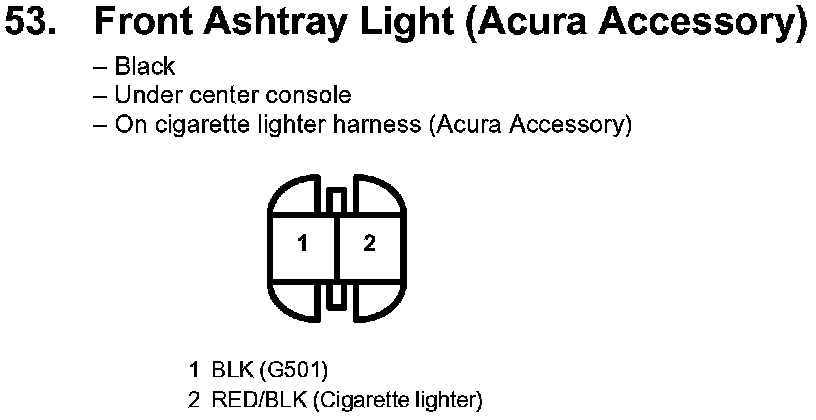

53. Front Ashtray Light (Acura Accessory):
