Home >> Acura >> 2004 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 51-75 >> 52

Views 51-75: 52

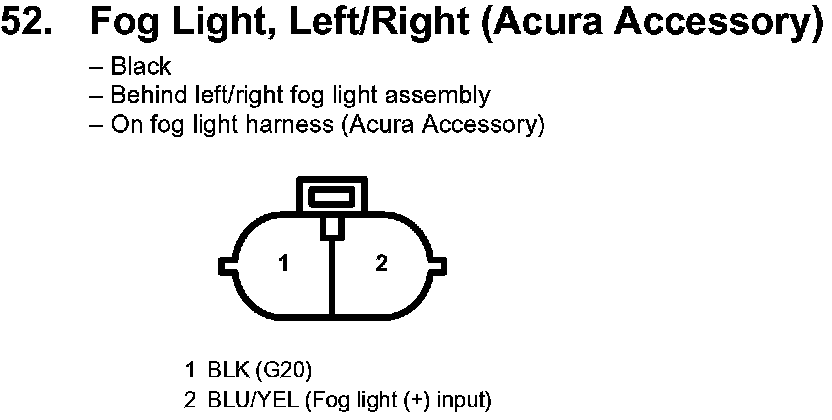

52. FogLight, Left/Right (Acura Accessory):
