Home >> Acura >> 2004 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 226-250 >> 249

Views 226-250: 249

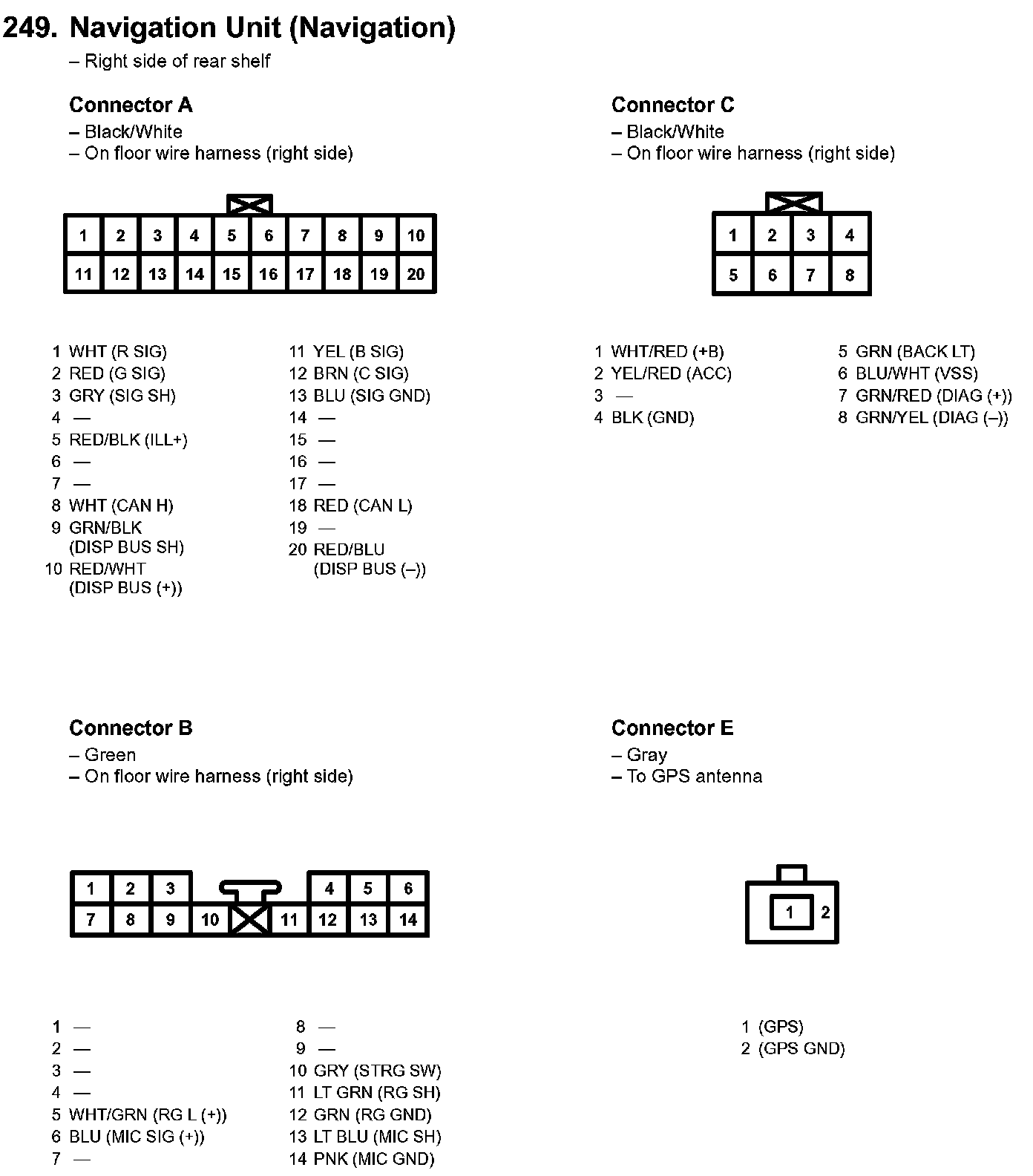

249. Navigation Unit (Navigation):
