Home >> Acura >> 2004 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 226-250 >> 245

Views 226-250: 245

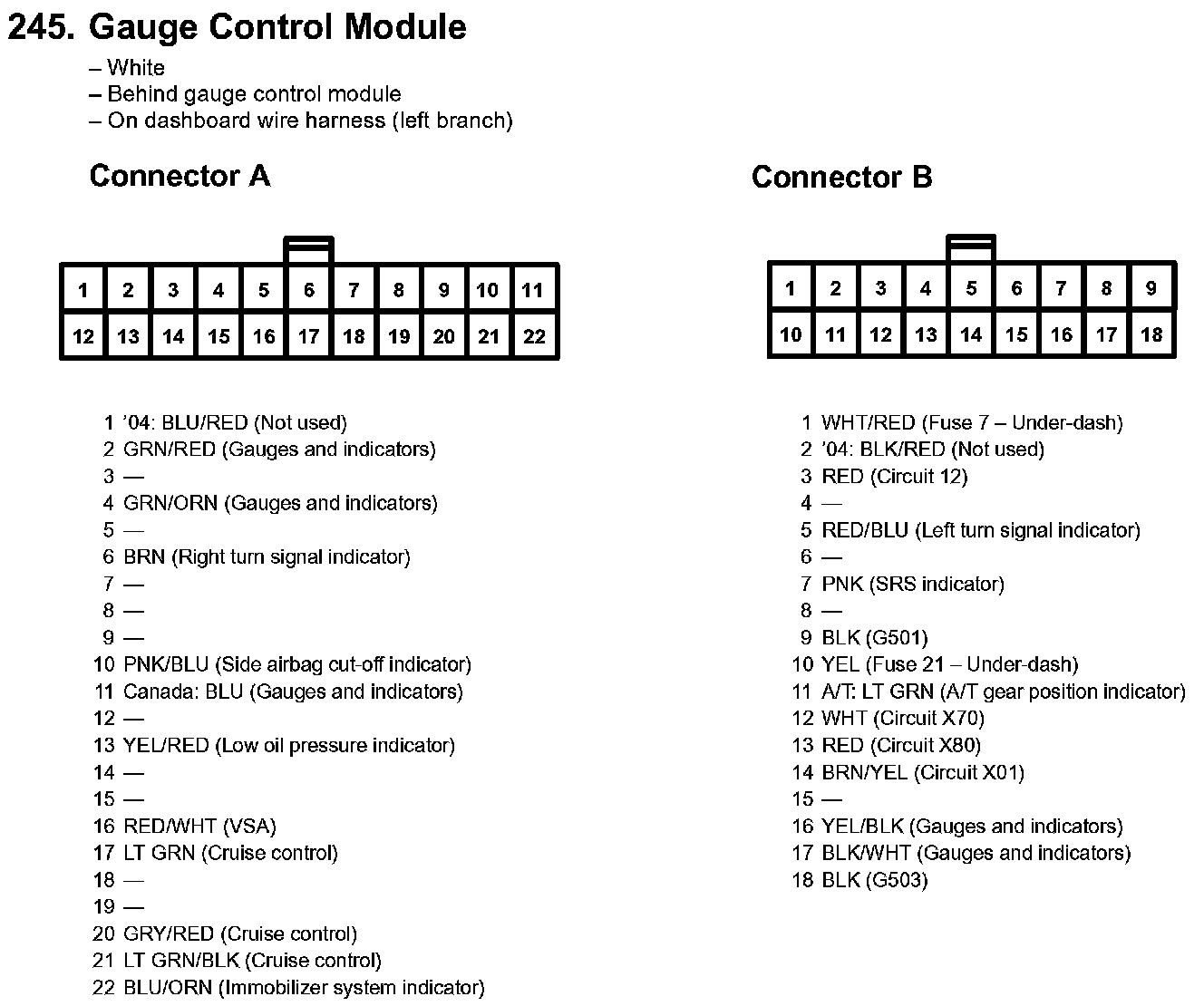

245. Gauge Control Module:
