Home >> Acura >> 2004 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 201-225 >> 203

Views 201-225: 203

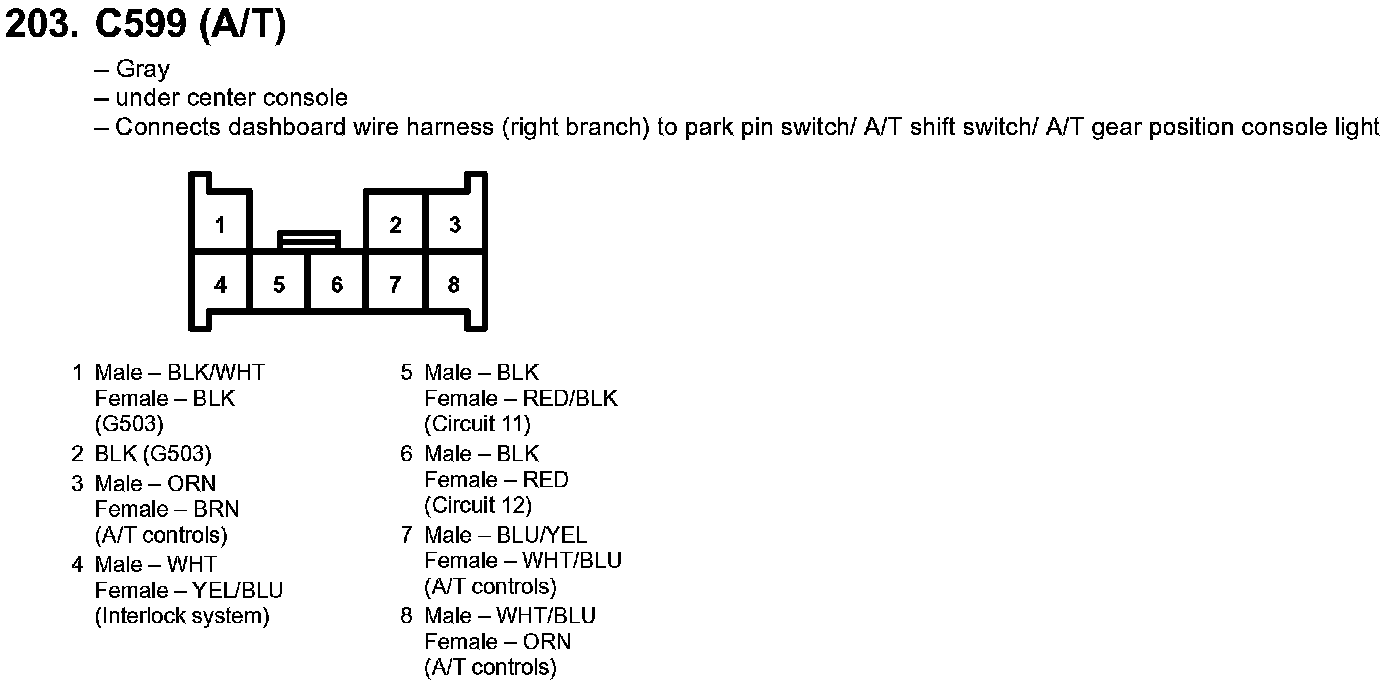

203. C599 (A/T):
